Roof Console Opening Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

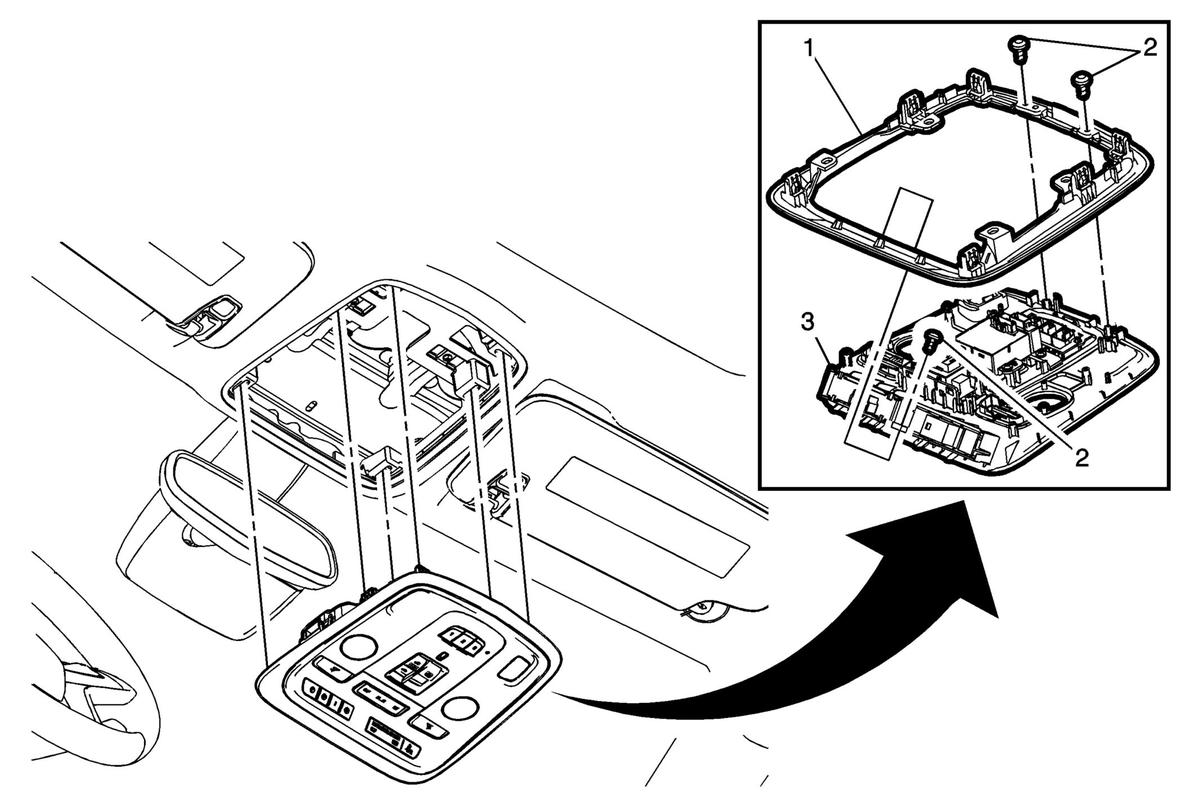

Callout	Component Name
Preliminary Procedure  Remove the center reading and courtesy lamp. Refer to Center Reading and Courtesy Lamp Replacement .
1	Roof Console
2	Roof Console Opening Trim Plate Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Roof Console Opening Trim Plate Procedure  When replacing the roof console opening trim plate, transfer all necessary components.
