Installation Procedure

  1. Connect the hazard warning switch electrical connector.

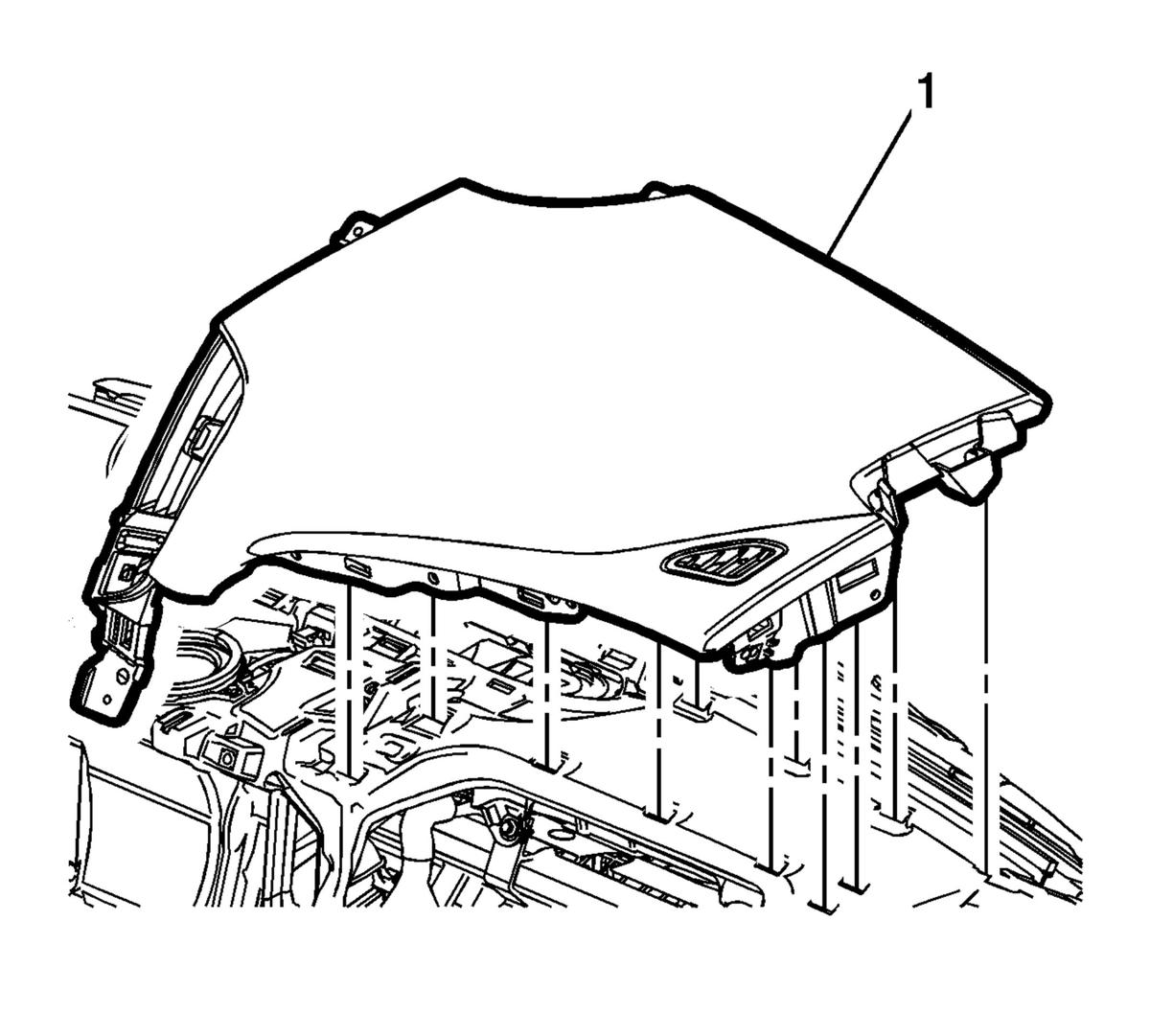

  2. GM2811542Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install

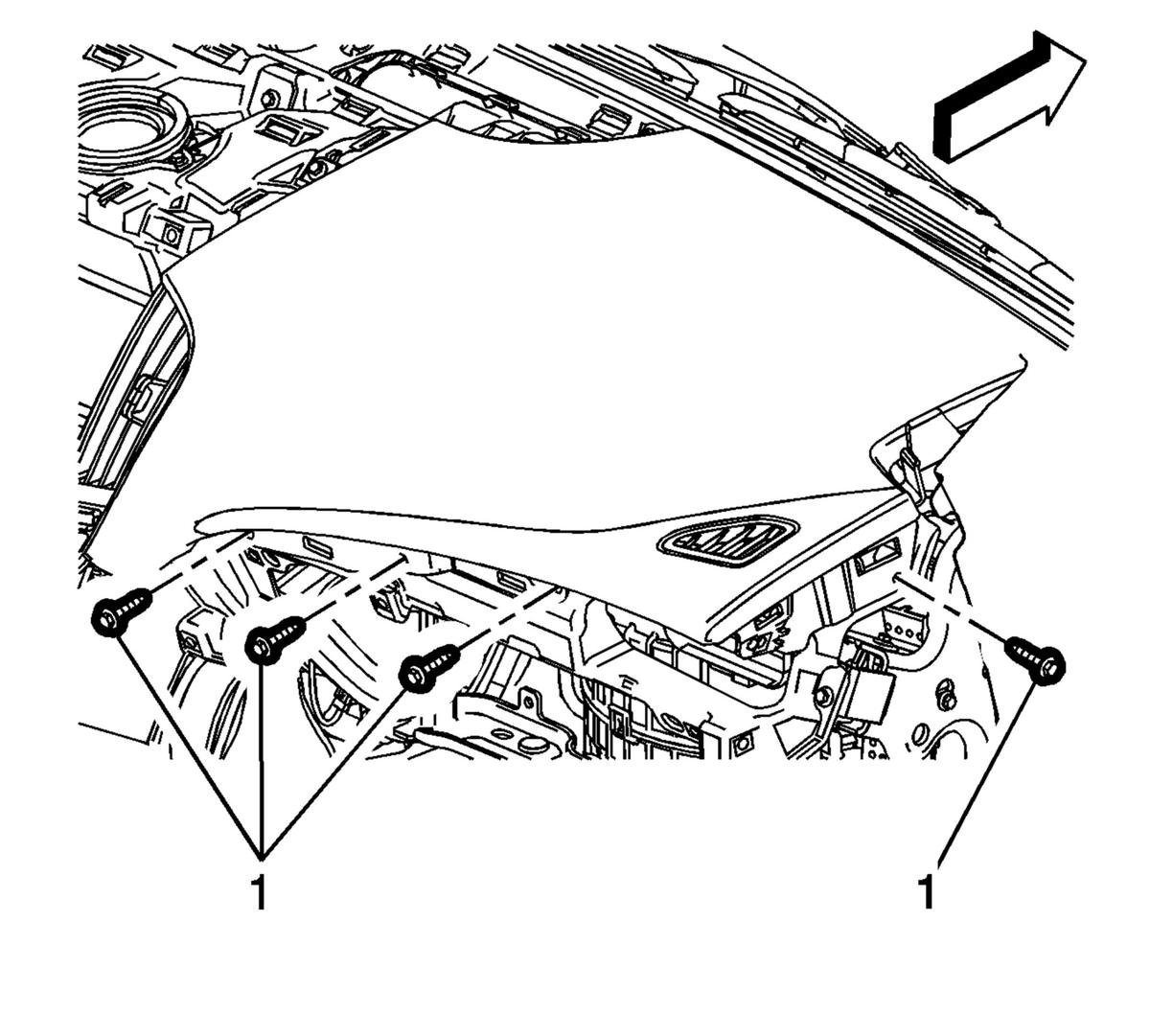

  3. GM2811541Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

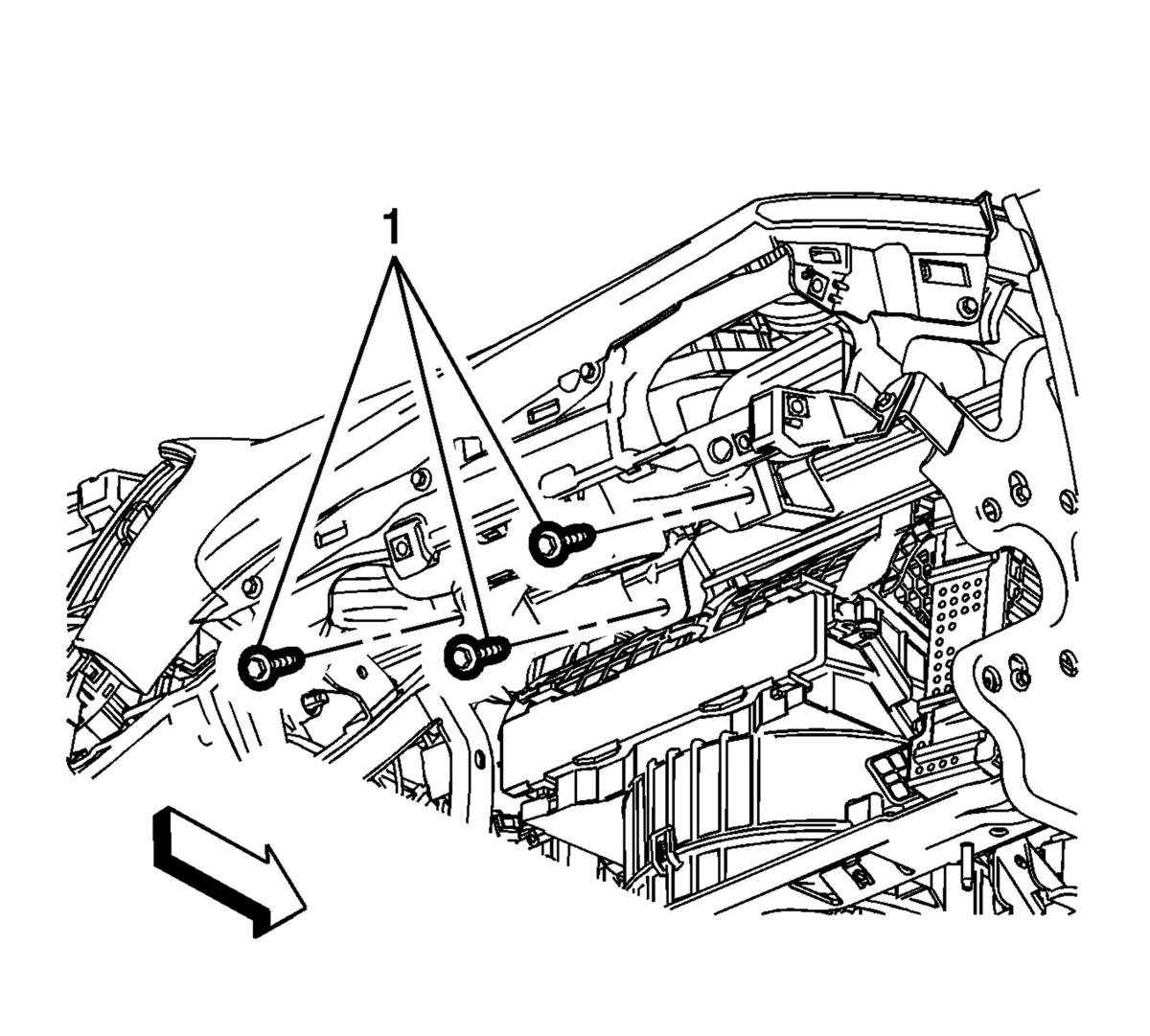

  4. GM2811540Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

  5. Connect the instrument panel airbag electrical connector to the instrument panel harness.

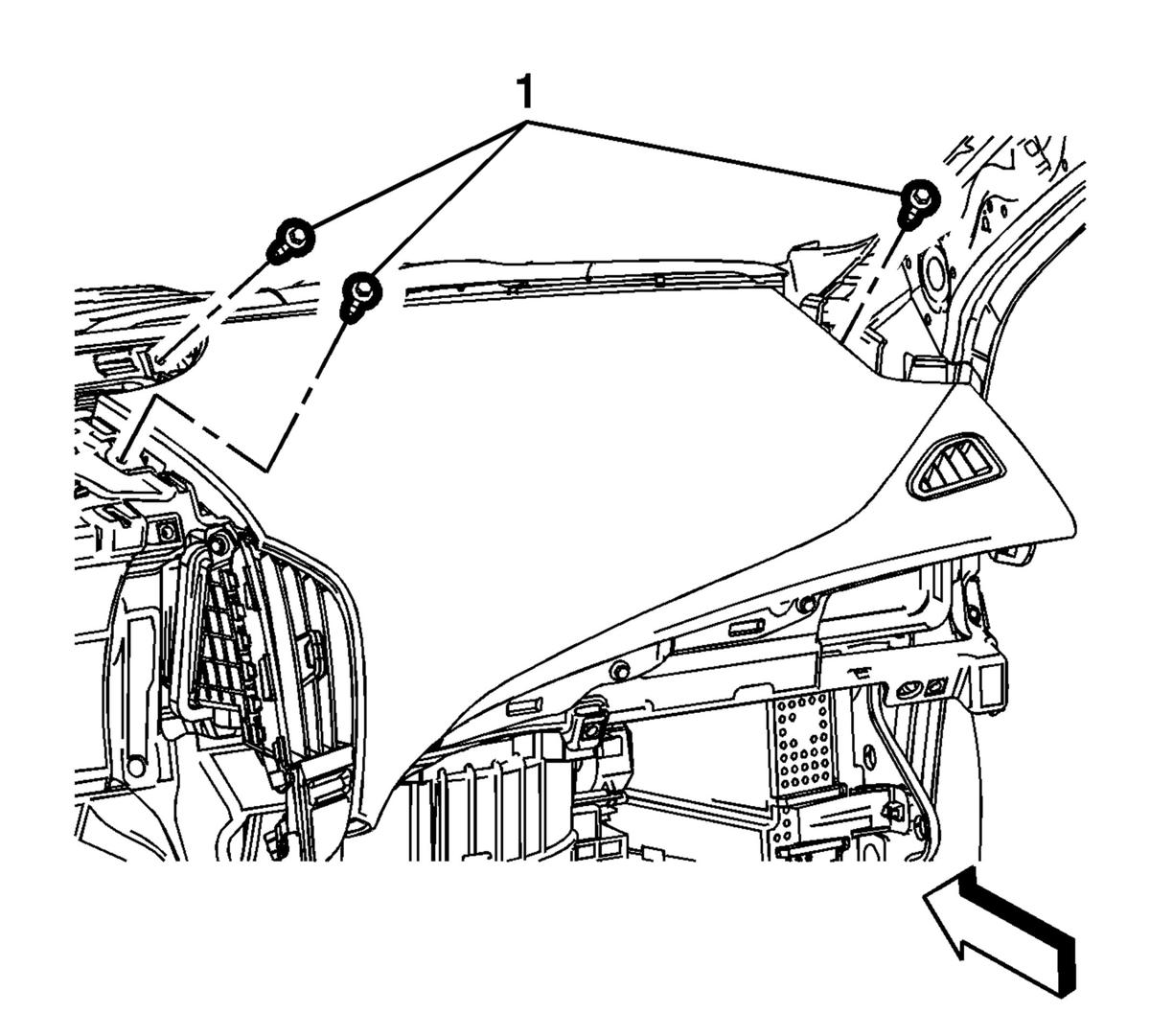

  6. GM2811539Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

  7. GM2826994Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  8. GM4035941Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  9. GM4032723Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install - Radio Control Assembly Replacement

  10. GM2832514Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement
