Installation Procedure

  1. GM2814746Courtesy of GENERAL MOTORS COMPANY

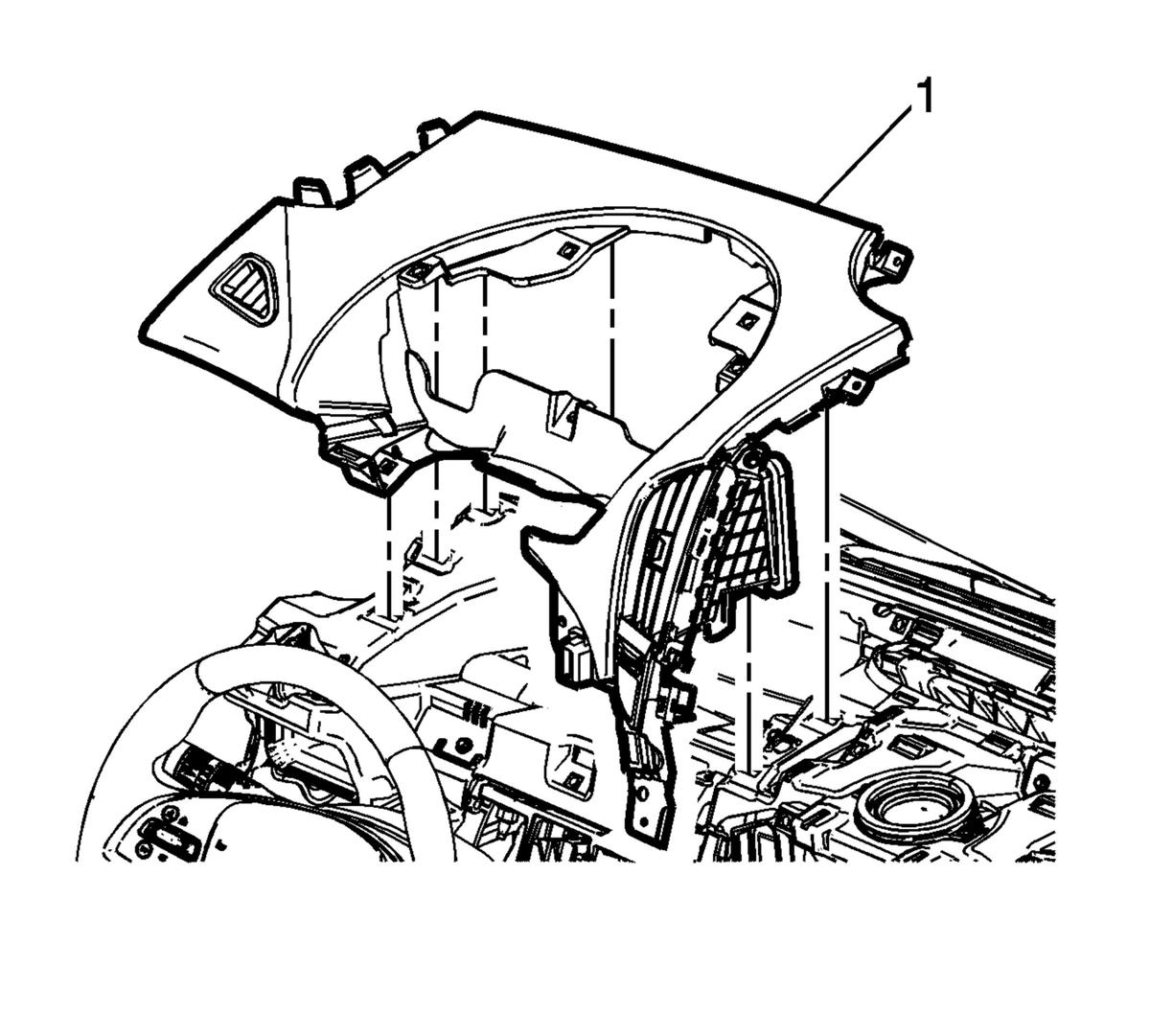

    Install the instrument panel upper trim panel (1) secured by 6 retainers to the instrument panel carrier.

  2. GM2814743Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

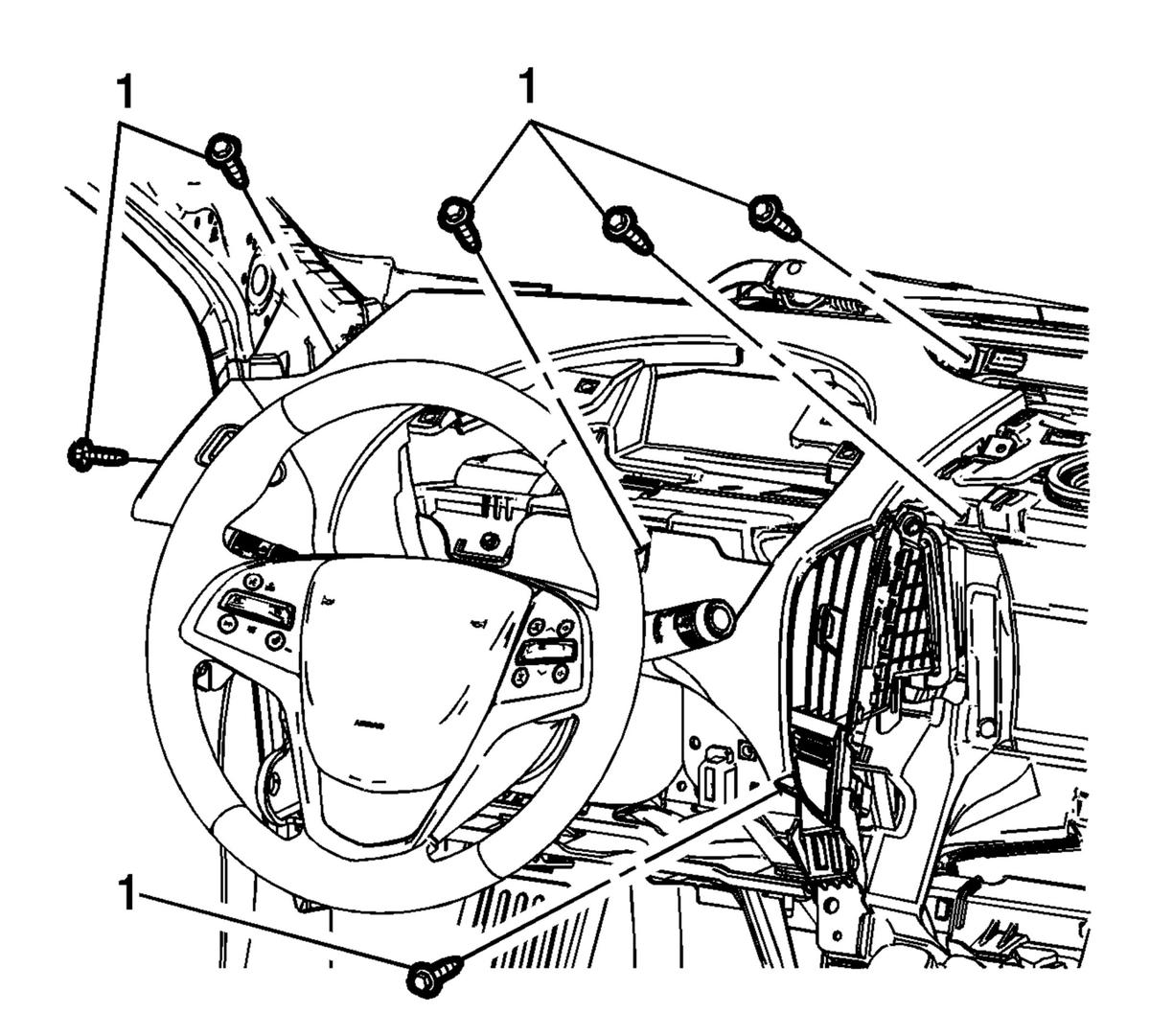

    Install the bolts (1) securing the top of the instrument panel upper trim panel to the instrument panel carrier.

  3. Install the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
  4. Install the left instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .
  5. Install the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
  6. Install the instrument panel extension. Refer to Instrument Panel Extension Replacement .
  7. Install the radio control assembly. Refer to Radio Control Assembly Replacement .
  8. Install the instrument cluster. Refer to Instrument Cluster Replacement .
  9. Install the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
