Installation Procedure

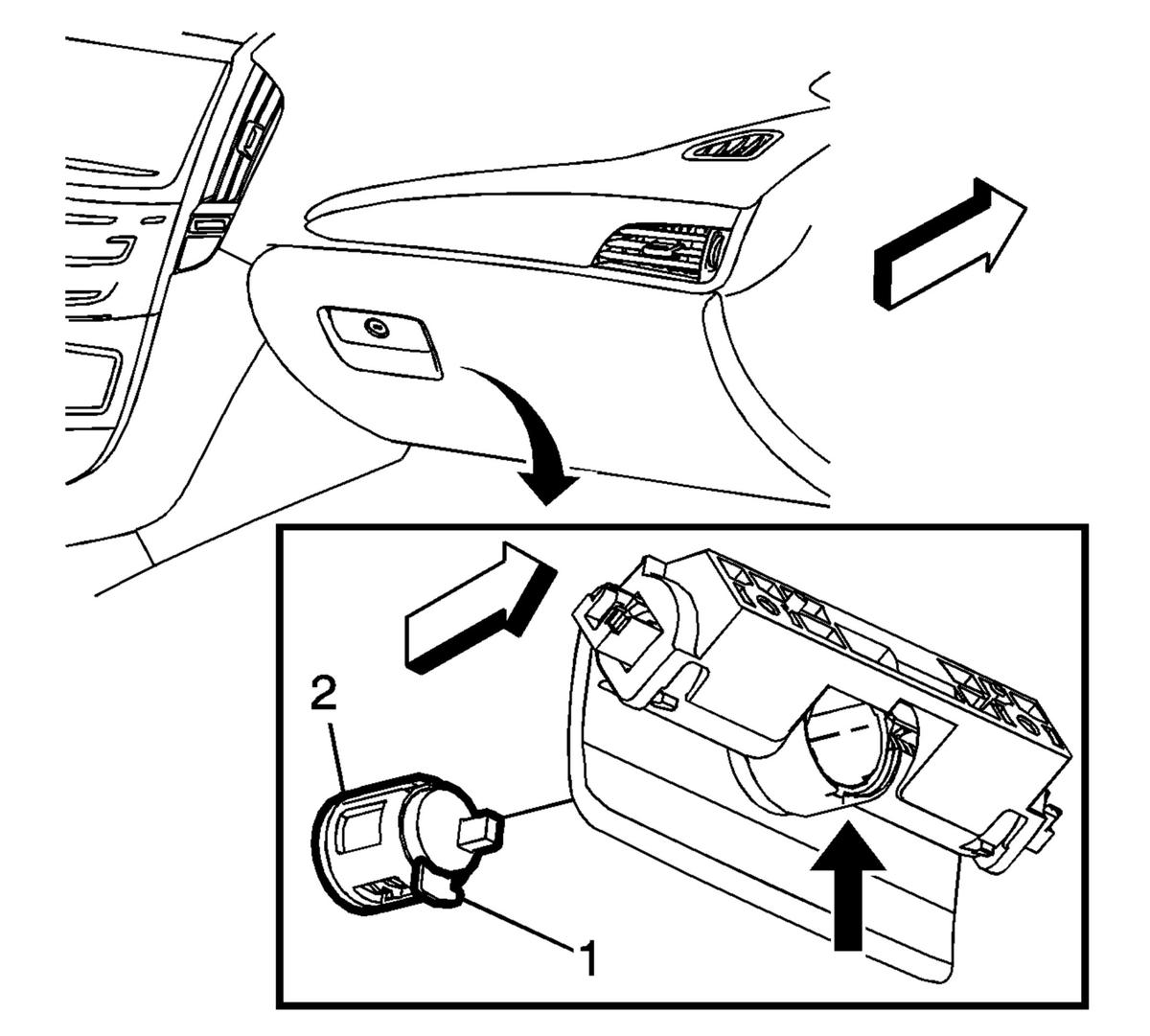

Position the instrument panel compartment door lock cylinder (2) to the opening in the compartment door latch, while depressing the retainer tumbler (1).
- Insert the instrument panel door lock cylinder (2) fully into the latch assembly.
- An audible click should be heard when the door lock cylinder (2) is fully seated into the latch assembly.
- Ensure proper operation of the instrument panel compartment door lock.
