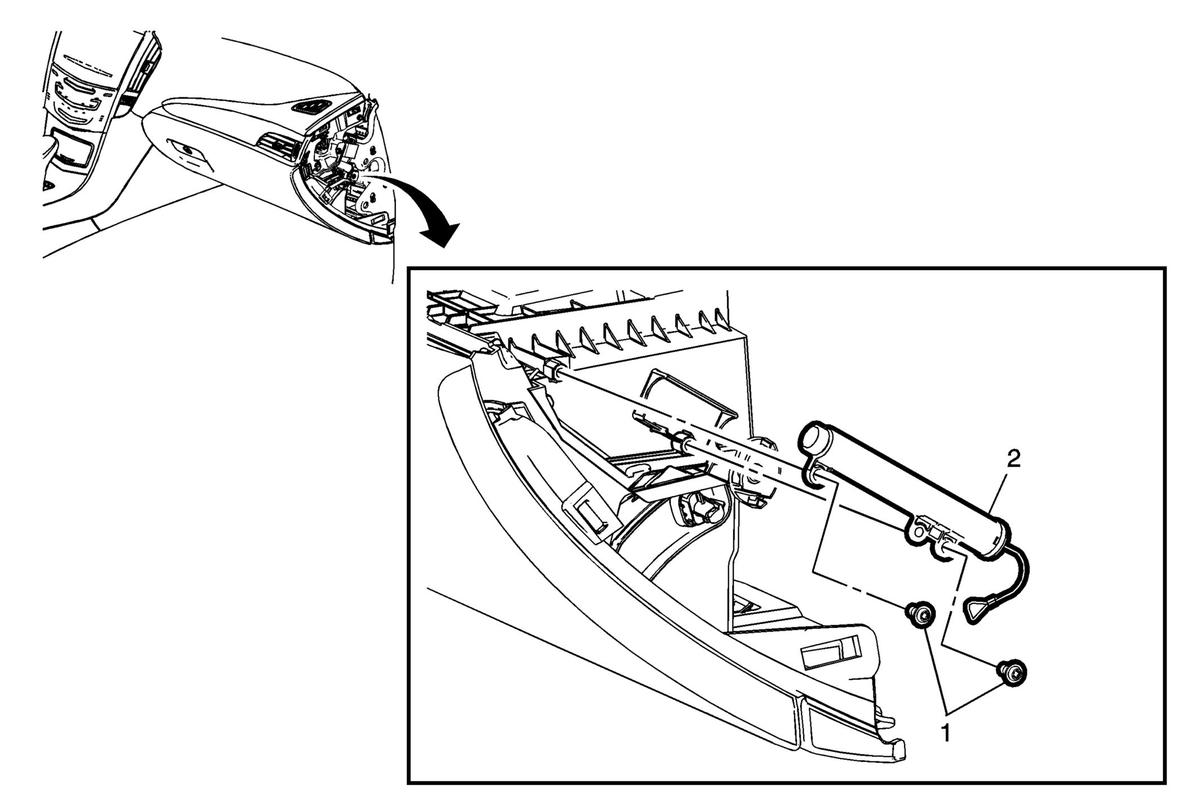

Instrument Panel Compartment Door Dampener Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Instrument Panel Compartment Door Dampener Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Compartment Door Dampener Procedure  Disconnect the door dampener from the door stop and retainer.
