Instrument Panel Center Compartment Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

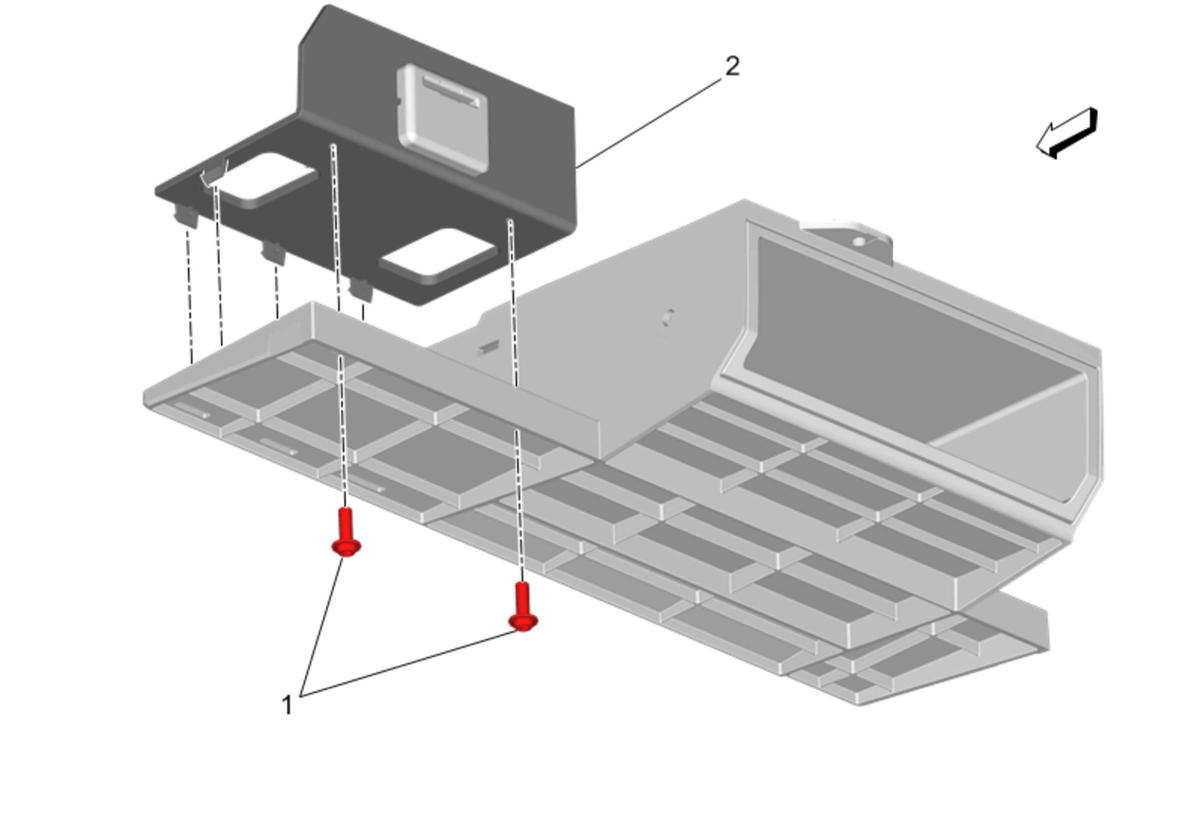

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Shelf Replacement
1	Instrument Panel Compartment Bolt to Compartment Shelf [2x] CAUTION: Refer to Fastener Caution . Tighten 1.3 N.m (12 lb in)
2	Instrument Panel Center Compartment Trim Plate Procedure Disconnect the electrical connector. Release the retaining tabs. Transfer components as necessary.

Callout

Component Name

Instrument Panel Compartment Bolt to Compartment Shelf [2x]

CAUTION:

Tighten
1.3 N.m (12 lb in)

Instrument Panel Center Compartment Trim Plate

Procedure
