Installation Procedure

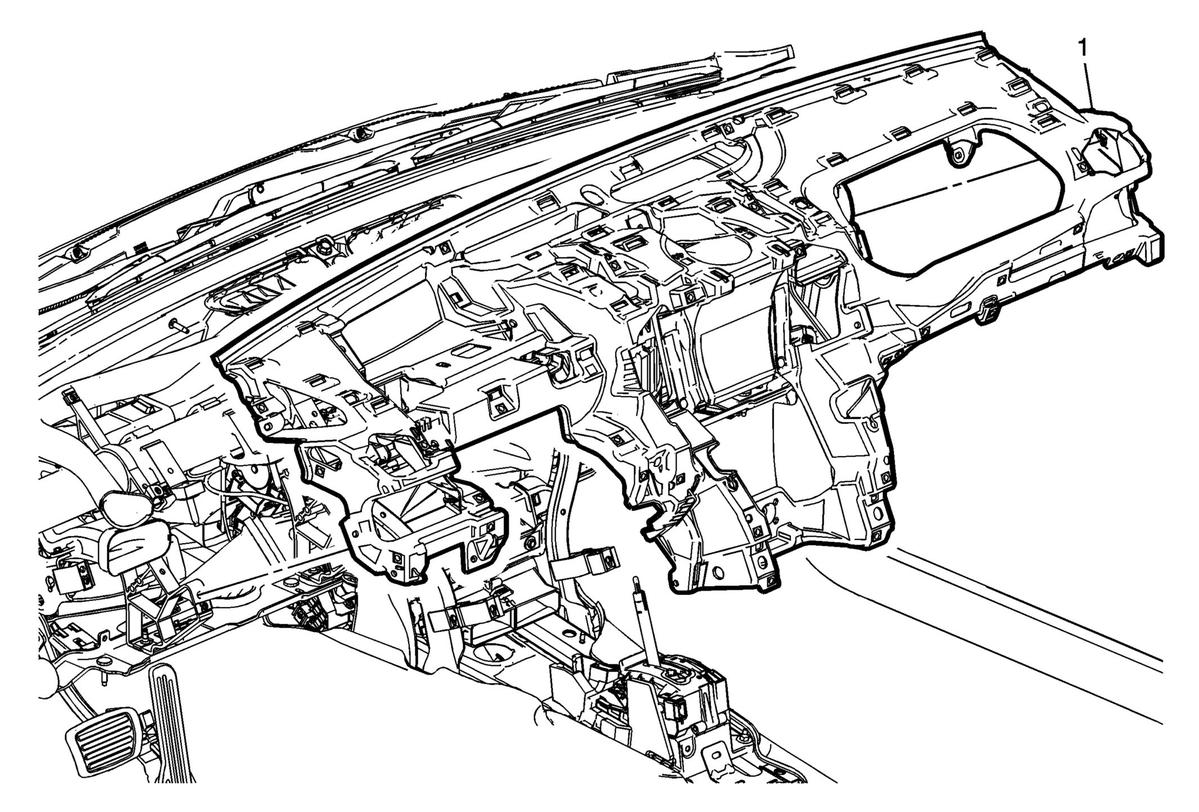

With the aid of an assistant, load the instrument panel carrier (1) to the instrument panel tie bar.
- Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel carrier (1).
- CAUTION:
Refer to Fastener Caution .

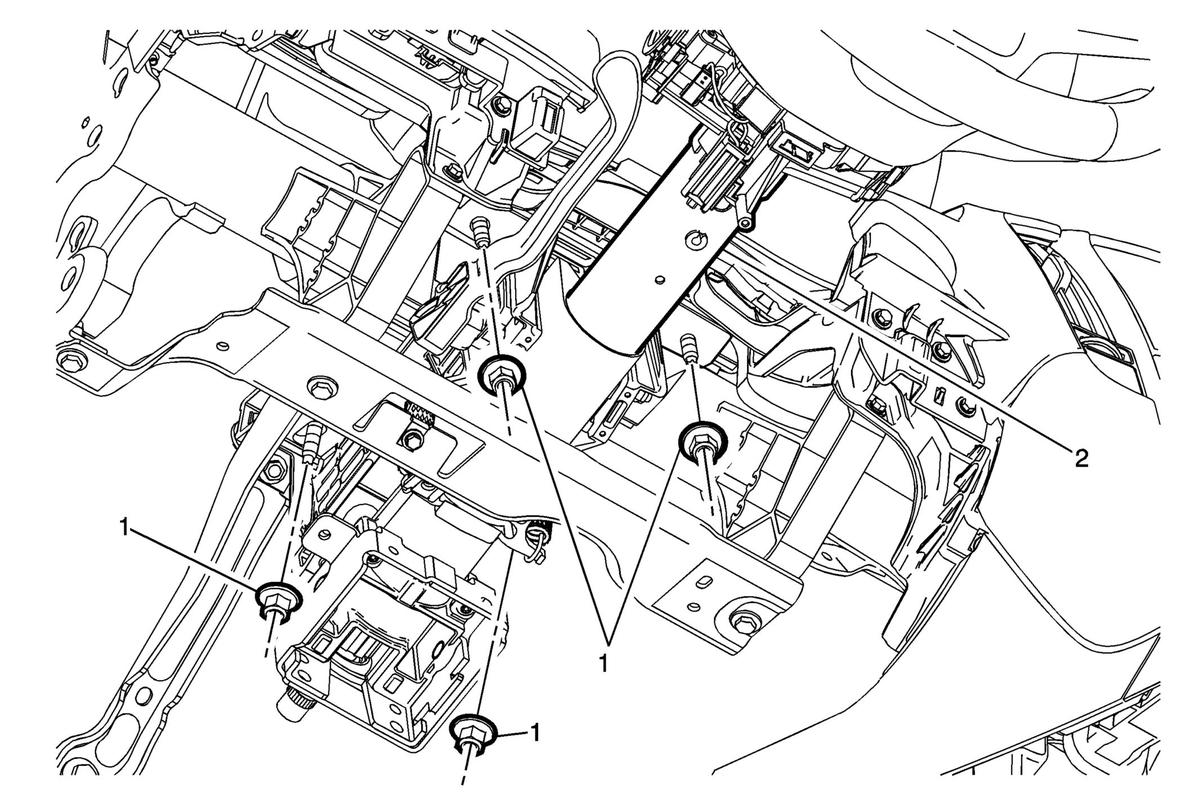

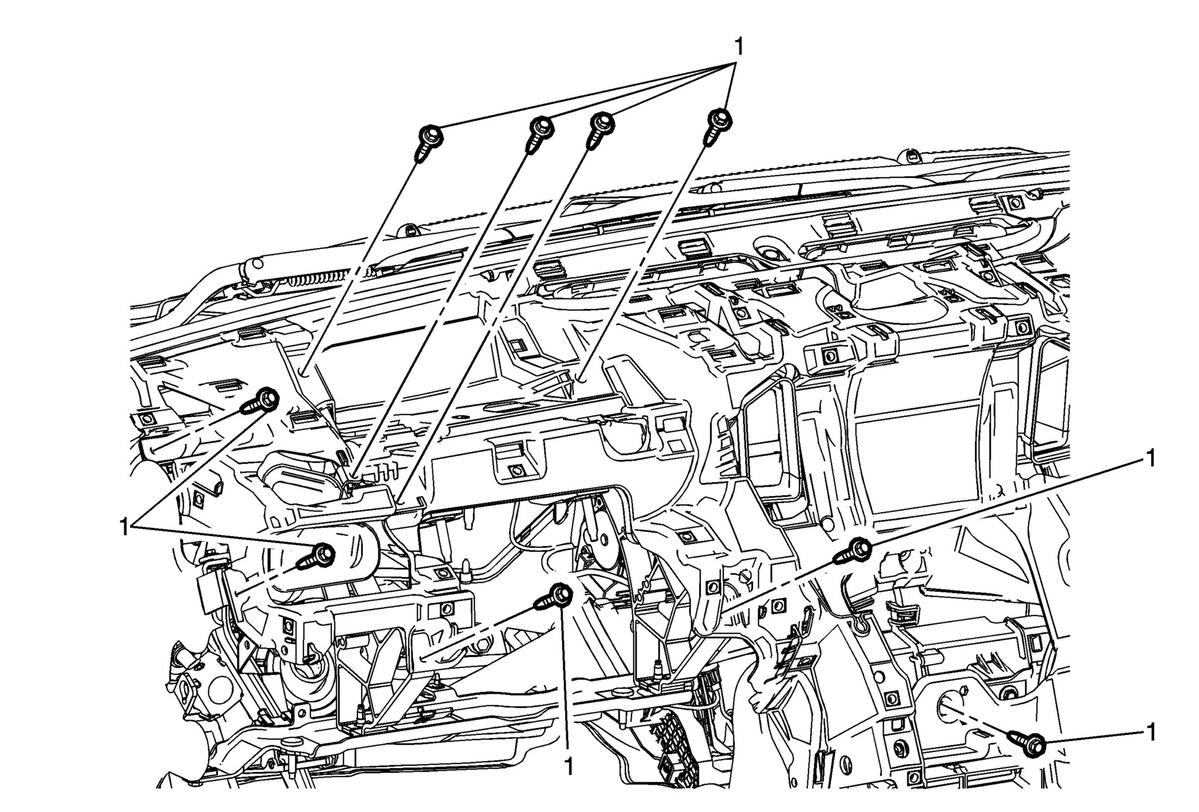

Install the instrument panel carrier bolts (1).

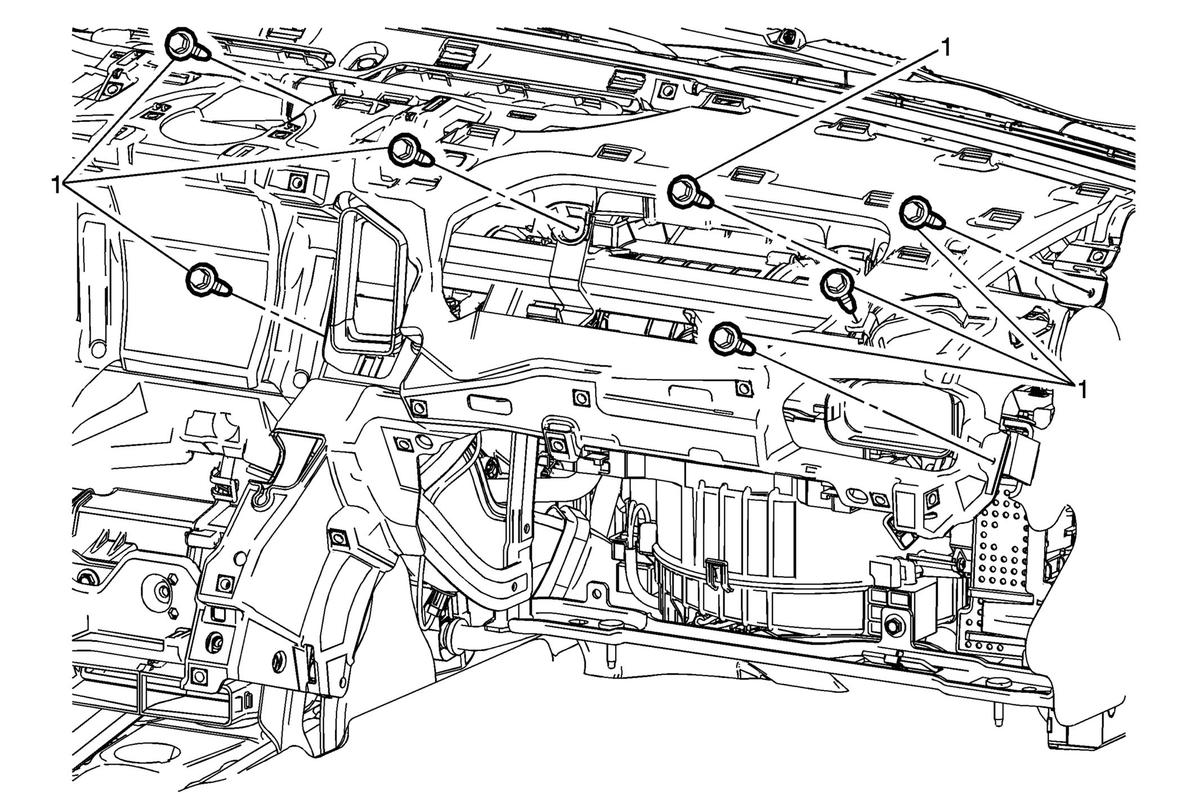

Install the instrument panel carrier bolts (1).

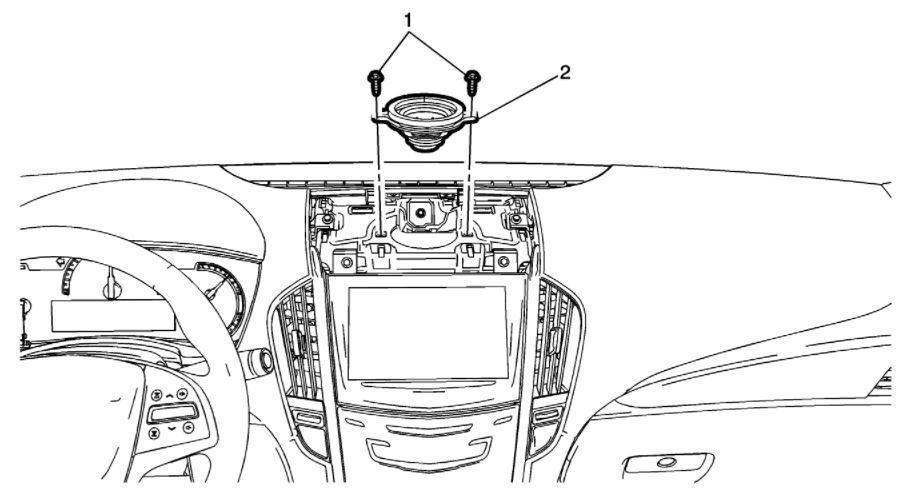

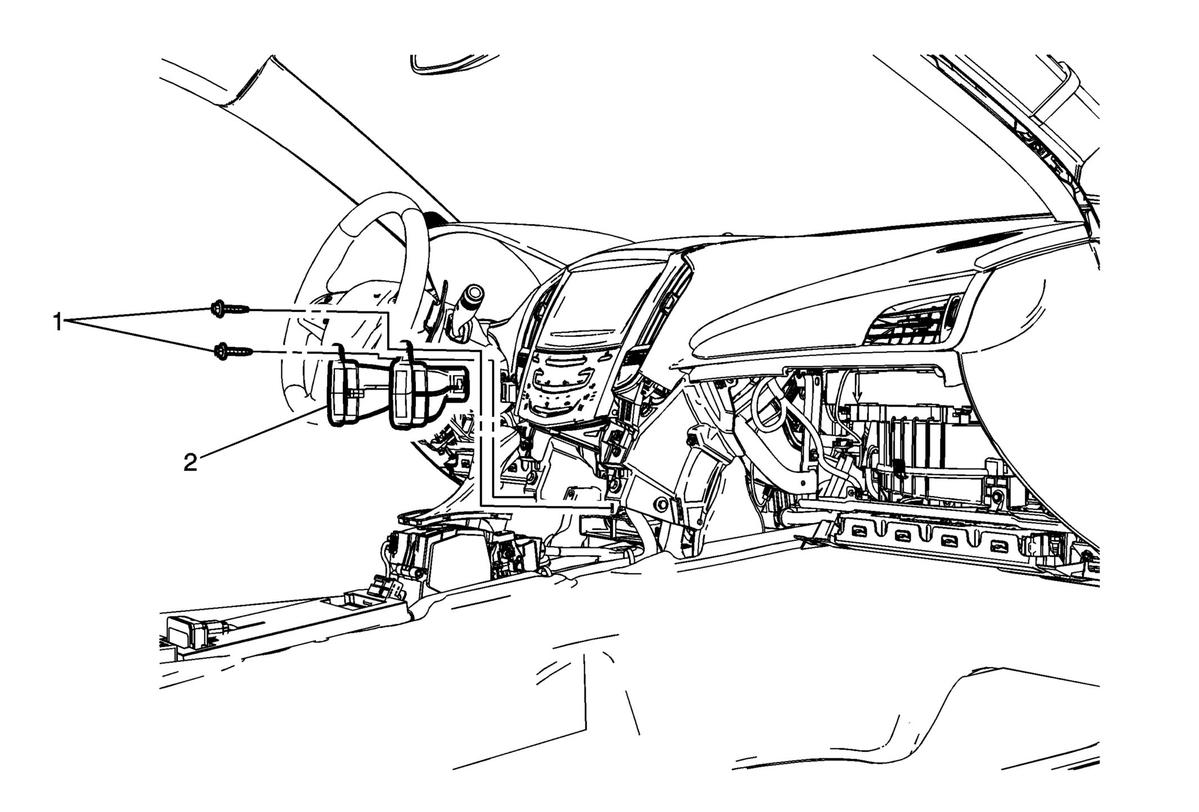

Install the radio front center speaker (2). Refer to Radio Front Center Speaker Replacement .
Install the front floor console rear air duct (2). Refer to Front Floor Console Rear Air Duct Replacement .

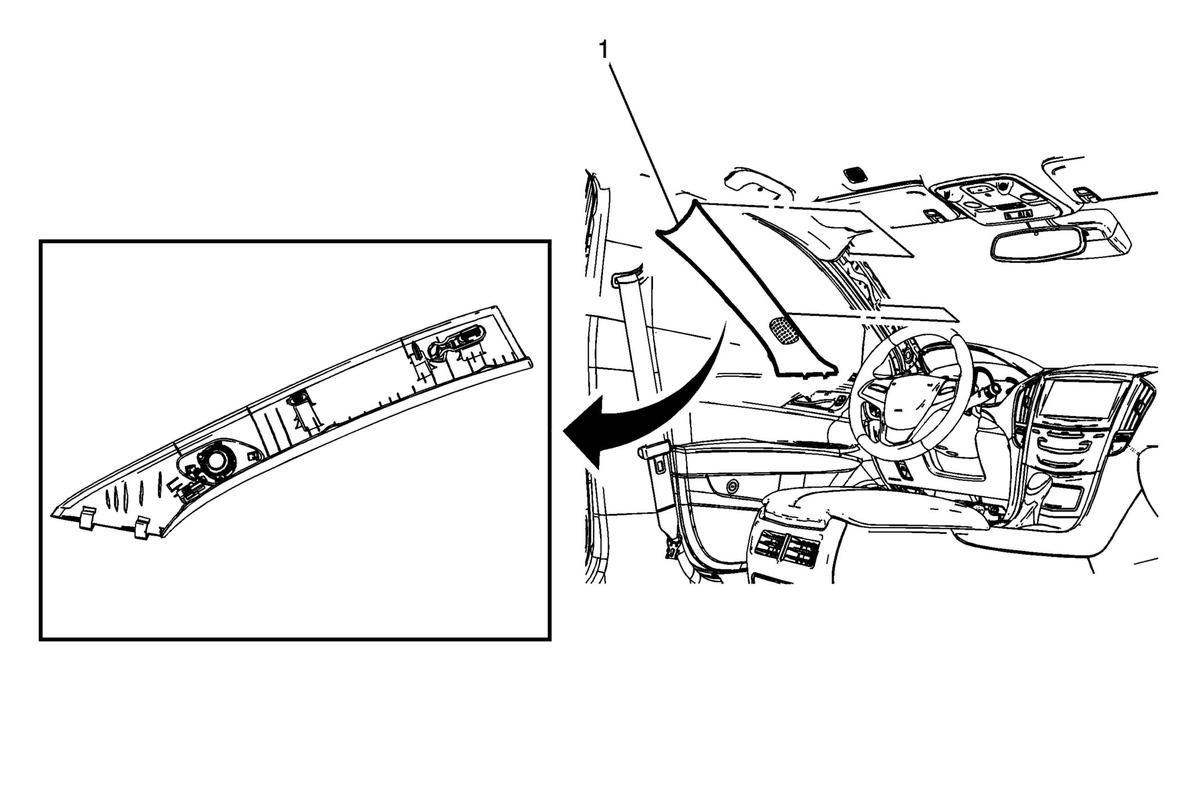

Install the left instrument panel upper trim panel (1). Refer to Instrument Panel Upper Trim Panel Replacement - Left Side .

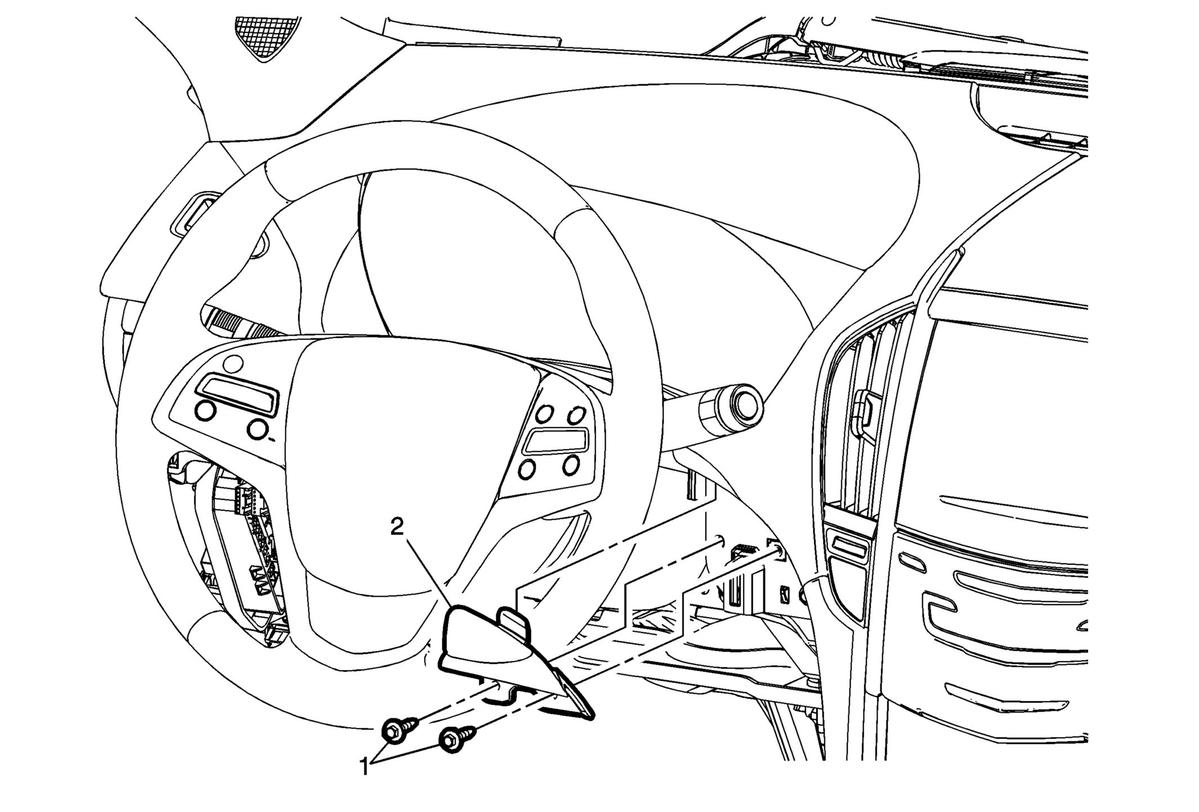

Install the left instrument panel trim plate applique (2). Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .
Install the instrument panel center trim plate applique (2). Refer to Instrument Panel Center Trim Plate Applique Replacement .

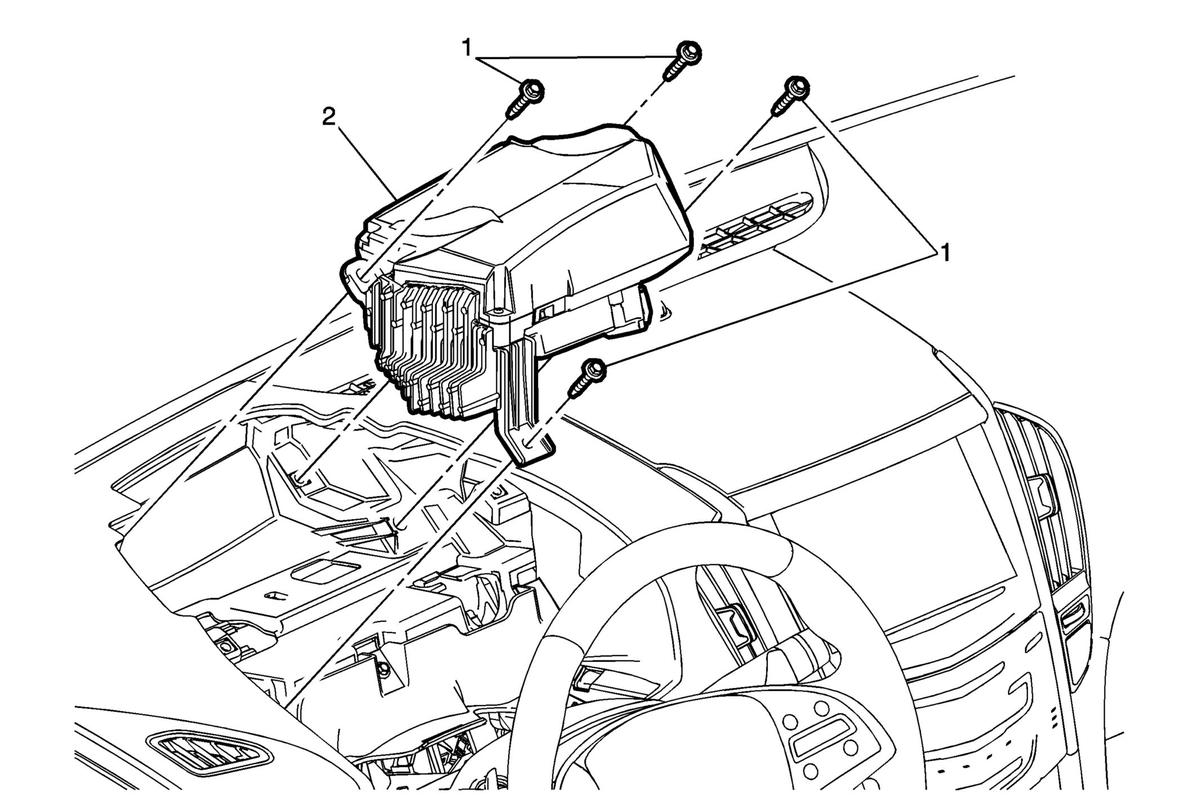

Install the head-up display, if equipped. (2). Refer to Head-Up Display Replacement .

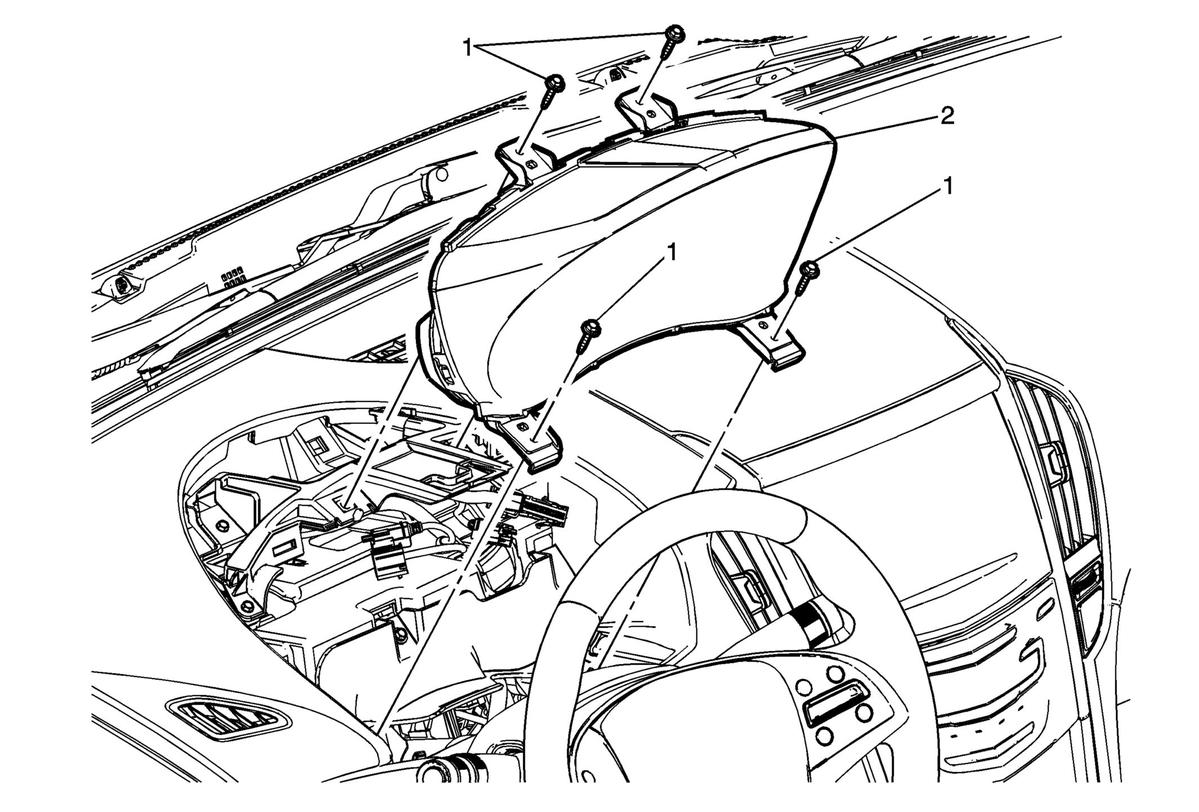

Install the instrument cluster (2). Refer to Instrument Cluster Replacement .

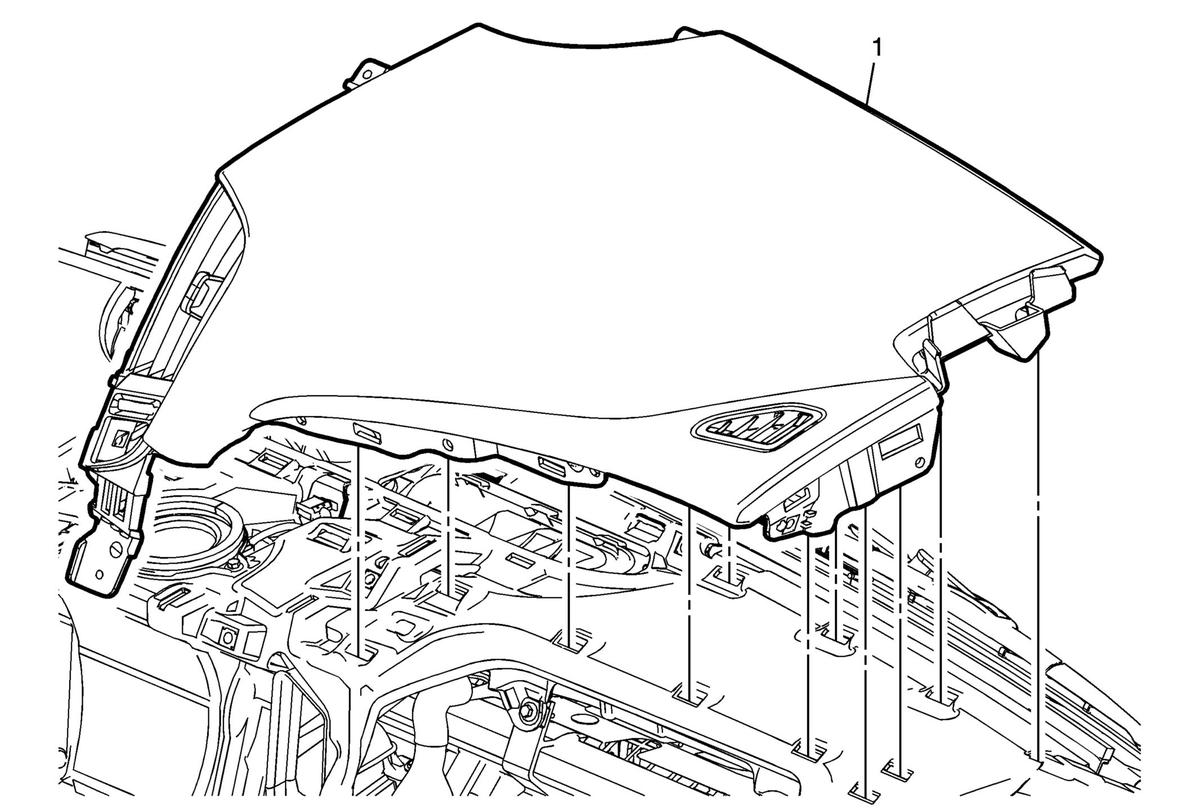

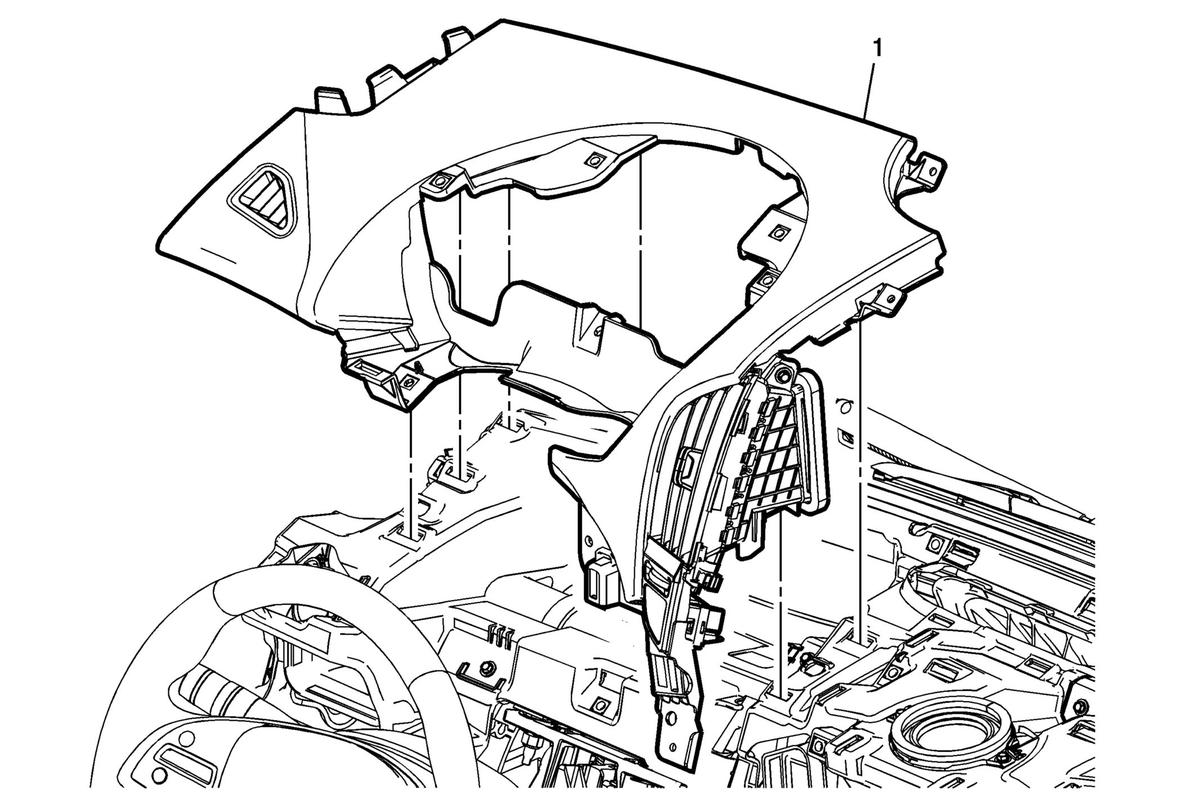

Install the right instrument panel upper trim panel (1). Refer to Instrument Panel Upper Trim Panel Replacement - Right Side .

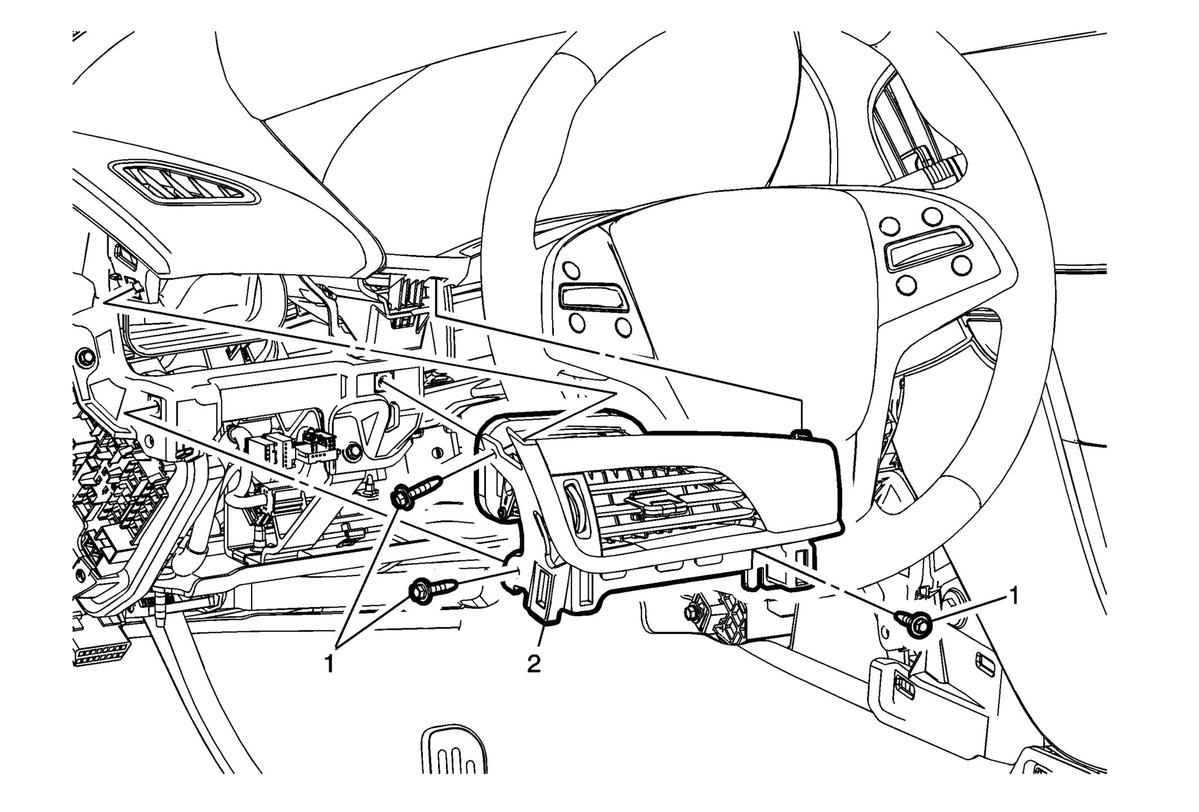

Install the instrument panel extension (1). Refer to Instrument Panel Extension Replacement .

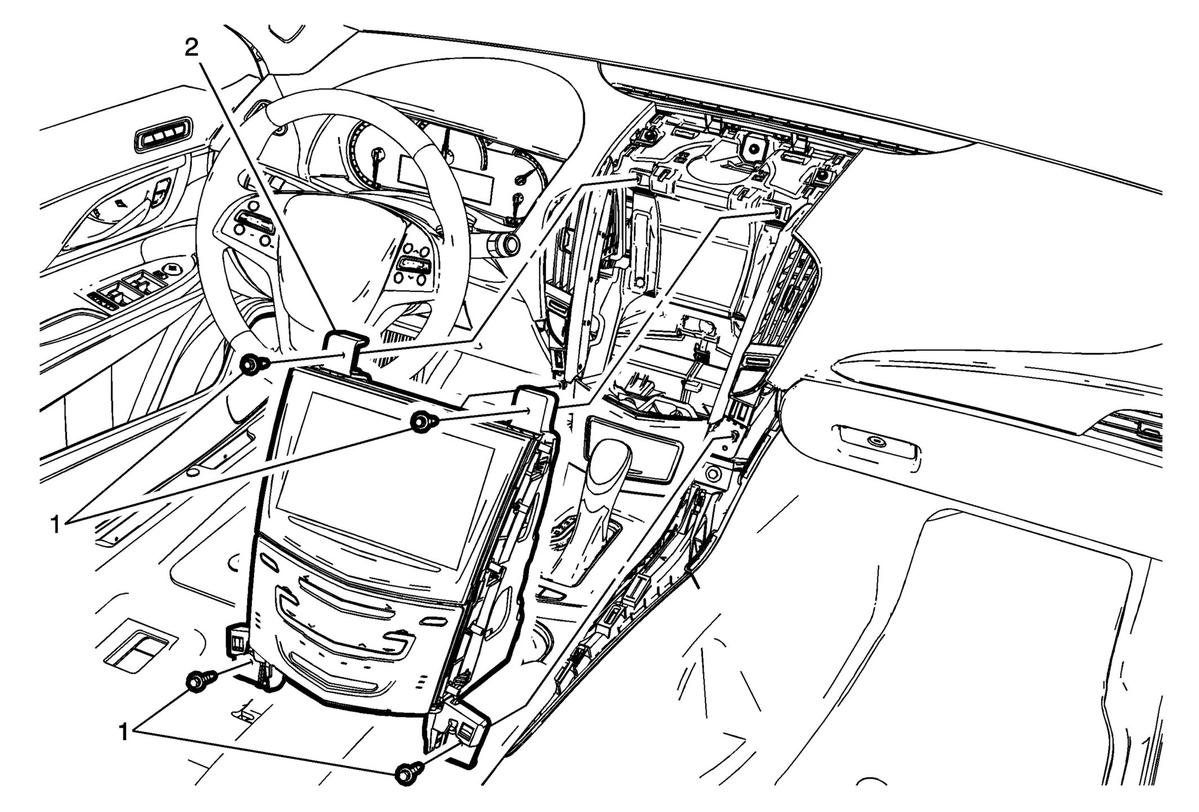

Install the radio control assembly (2). Refer to Radio Control Assembly Replacement .
Install the steering column (2). Refer to Steering Column Replacement (N37)Steering Column Replacement (N38) .

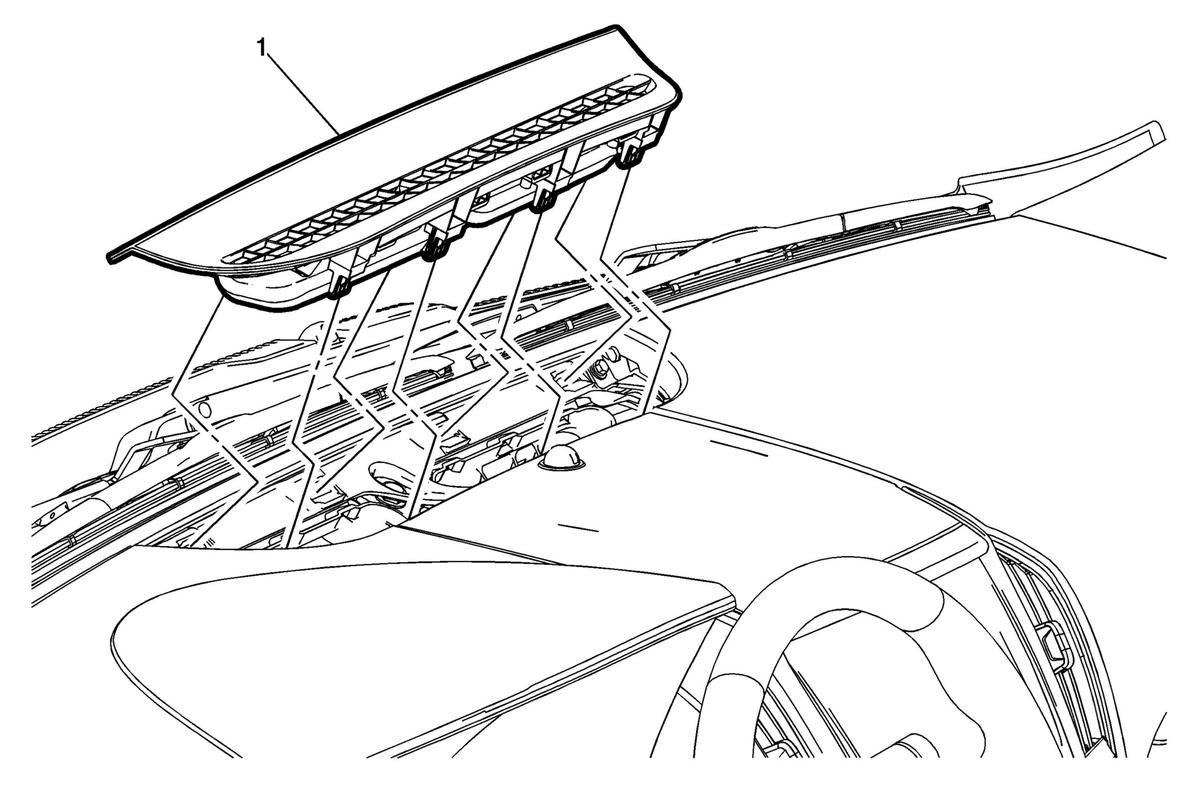

Install the windshield garnish molding (1). Refer to Windshield Garnish Molding Replacement .
Install the front floor lower console (3). Refer to Front Floor Lower Console Replacement .
