Front Floor Console Transmission Shift Opening Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

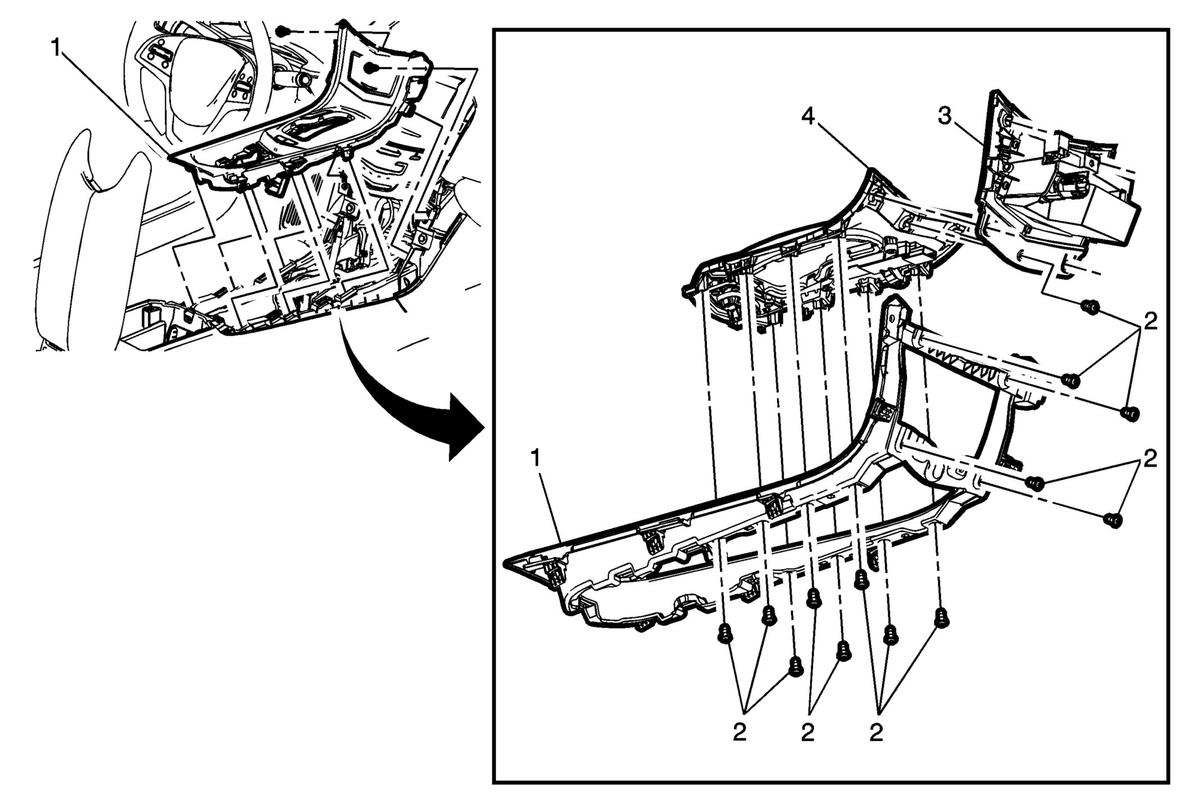

Callout	Component Name
1	Front Floor Console Trim Plate Refer to Front Floor Console Trim Plate Replacement .
2	Front Floor Console Trim Plate Fasteners (Qty: 13) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Compartment Trim Plate
4	Front Floor Console Transmission Shift Opening Bezel Procedures Disconnect and reposition the electrical harness as necessary. Separate the applique from the trim plate. Remove the remaining fastener to separate the compartment trim plate from the bezel. When replacing the bezel, transfer all necessary components.
