Front Floor Console Rear Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

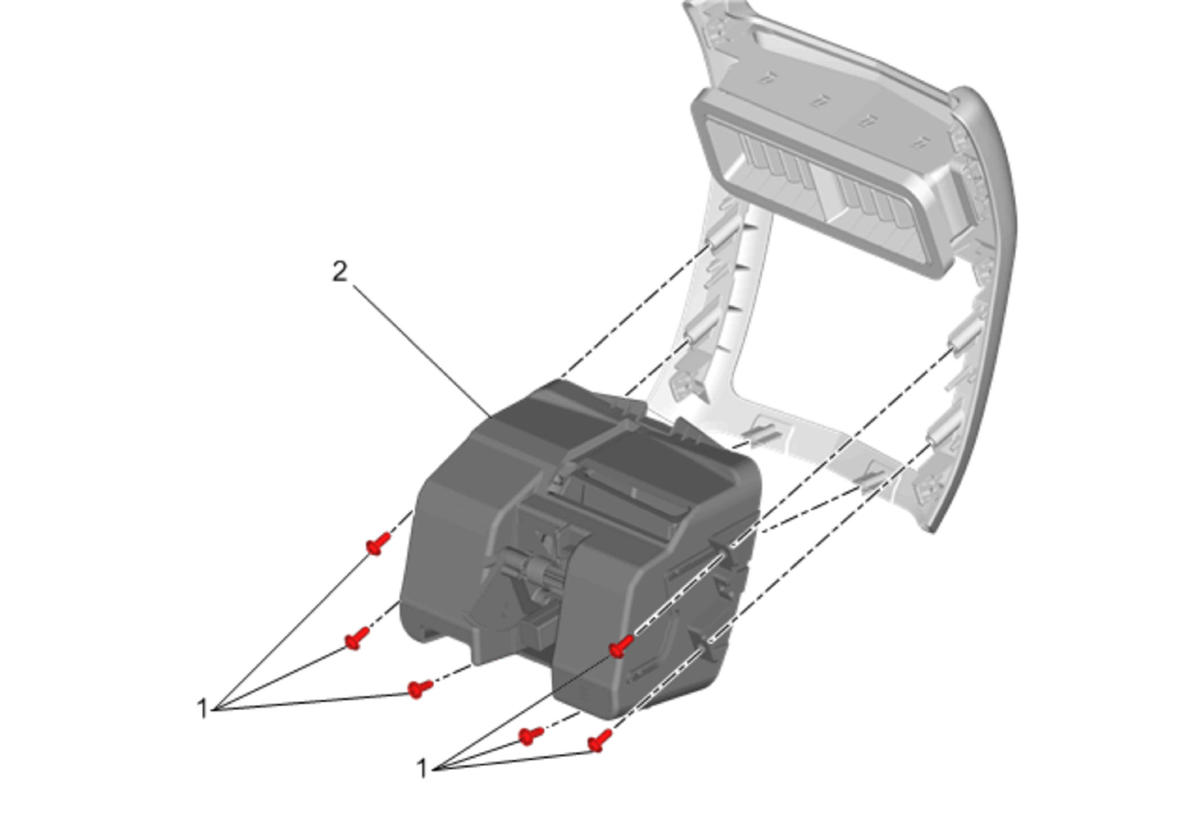

Callout	Component Name
Preliminary Procedure  Front Floor Console Rear Trim Panel Replacement (With Compartment) Front Floor Console Rear Trim Panel Replacement (Without Compartment)
1	Front Floor Console Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten  .75 N.m (7 lb in)
2	Front Floor Console Rear Compartment Procedure  Transfer components as necessary.
