Front Floor Console Front Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

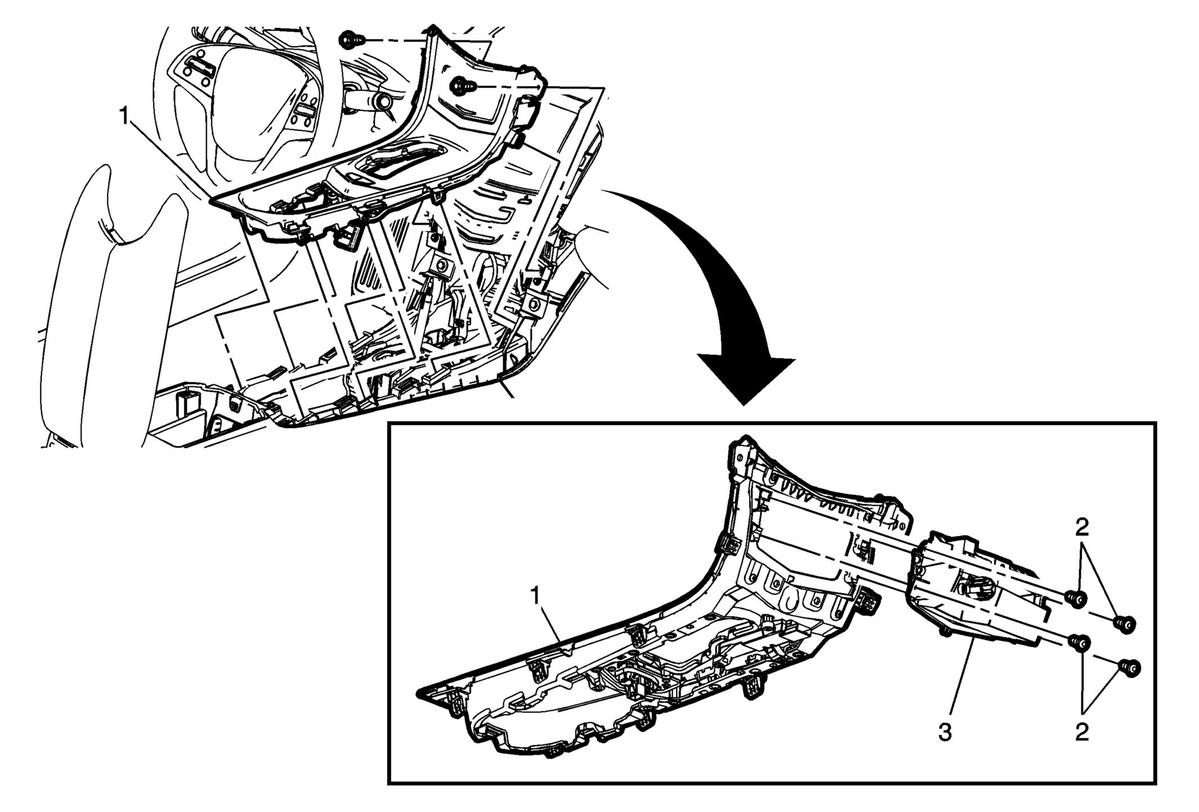

Callout	Component Name
1	Front Floor Console Trim Plate Refer to Front Floor Console Trim Plate Replacement .
2	Front Floor Console Trim Plate Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Front Compartment Procedures Disconnect all electrical connectors. When replacing the front compartment, transfer all necessary components.

Callout

Component Name

Front Floor Console Trim Plate
Refer to Front Floor Console Trim Plate Replacement .

Front Floor Console Trim Plate Fasteners (Qty: 4)

CAUTION:

Front Floor Console Front Compartment

Procedures
