Front Floor Console Compartment Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

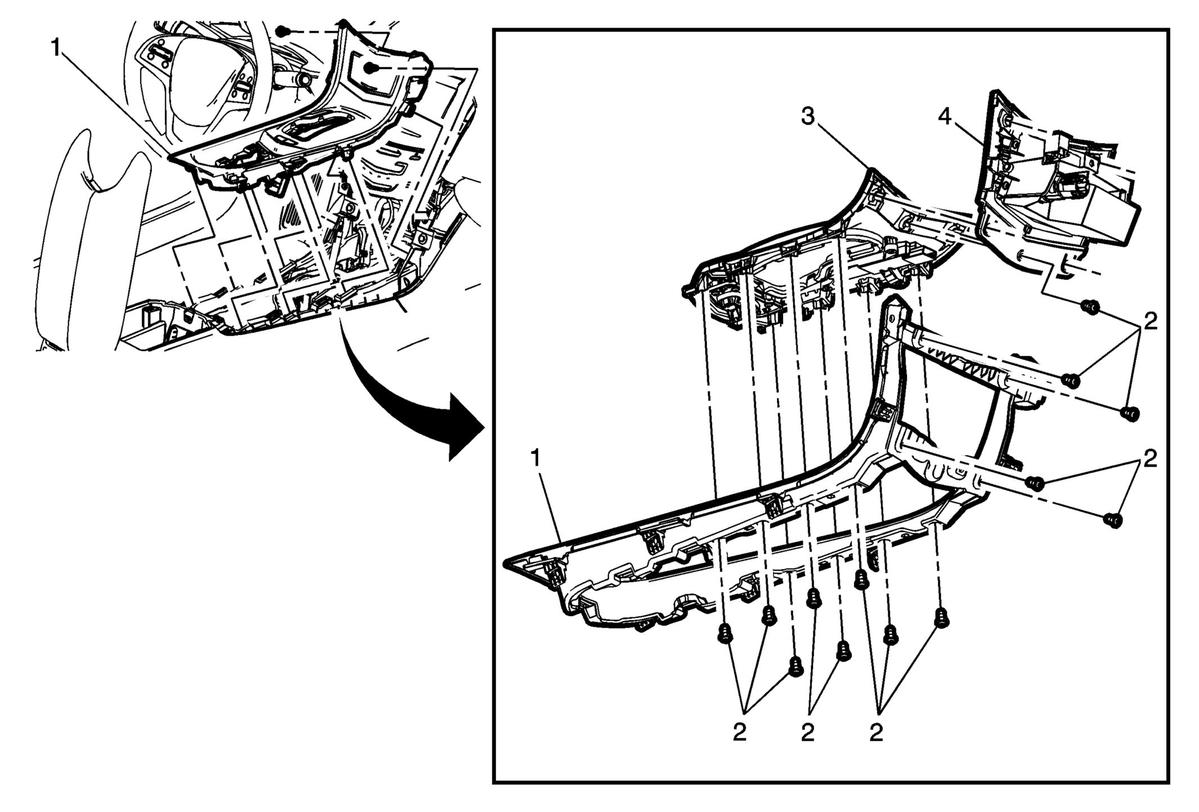

Callout	Component Name
1	Front Floor Console Trim Plate Refer to Front Floor Console Trim Plate Replacement .
2	Front Floor Console Trim Plate Fasteners (Qty: 13) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Transmission Shift Opening Bezel
4	Front Floor Console Compartment Trim Plate Procedures Disconnect and reposition the electrical harness as necessary. Separate the bezel from the trim plate. Remove the remaining fastener to separate the compartment trim plate from the bezel. When replacing the trim plate, transfer all necessary components.
