Front Floor Console Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

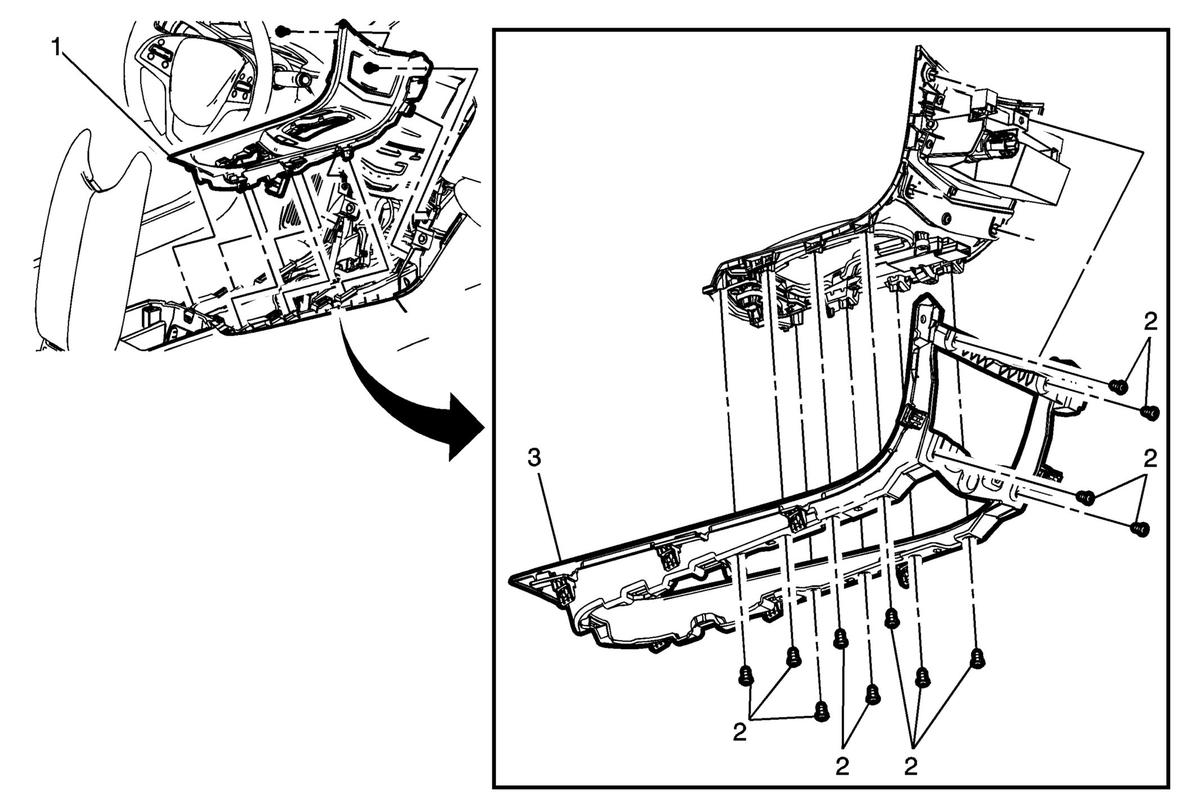

Callout	Component Name
1	Front Floor Console Trim Plate Refer to Front Floor Console Trim Plate Replacement .
2	Front Floor Console Trim Plate Fasteners (Qty: 12) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Applique Procedures Disconnect and reposition the electrical harness as necessary. Separate the applique from the trim plate. When replacing the applique, transfer all necessary components.

Callout

Component Name

Front Floor Console Trim Plate
Refer to Front Floor Console Trim Plate Replacement .

Front Floor Console Trim Plate Fasteners (Qty: 12)

CAUTION:

Front Floor Console Applique

Procedures
