Installation Procedure

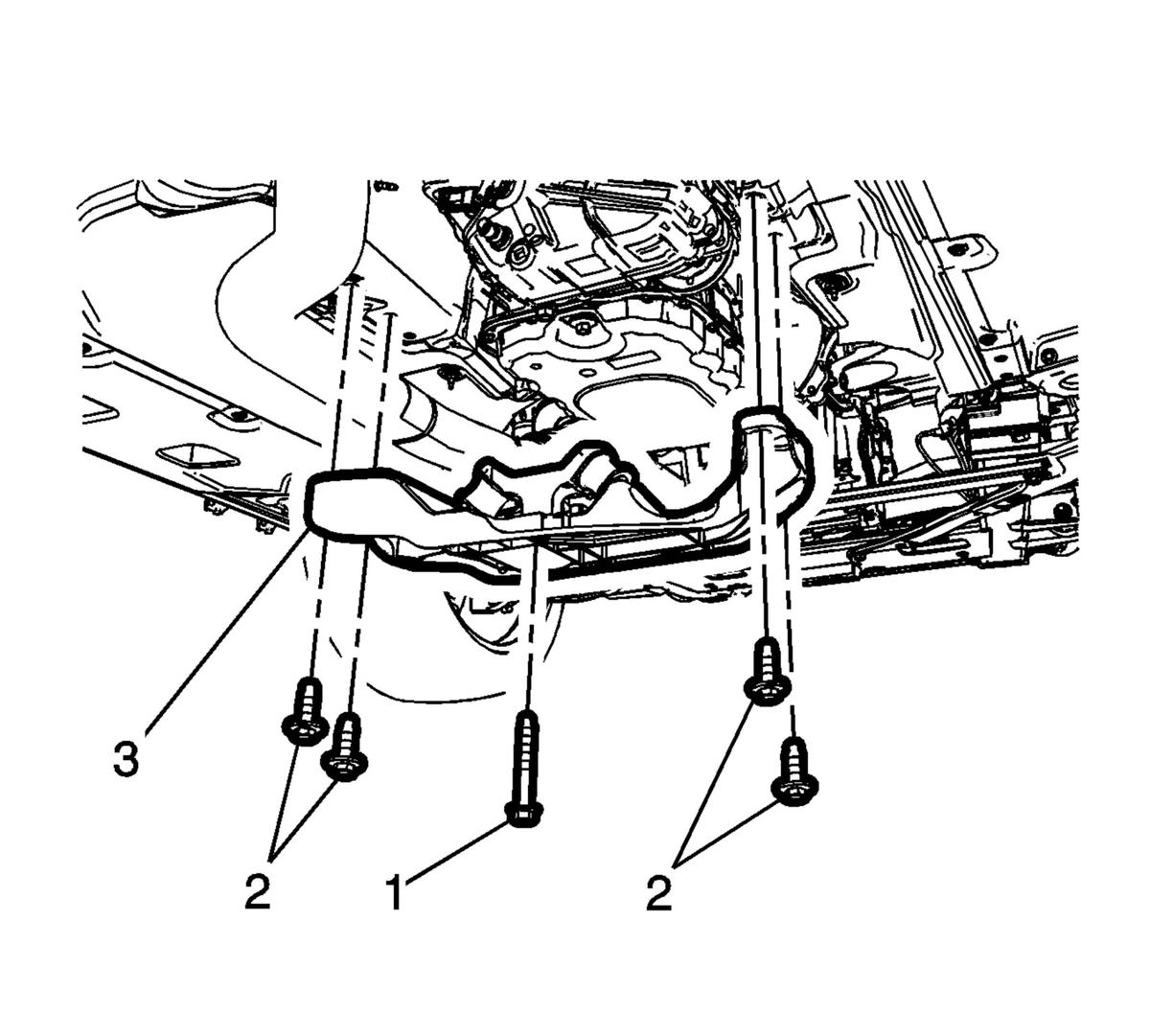

  1. GM2908631Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The transmission support and transmission mount are replaced as an assembly.

    Install the transmission support (3).

    2. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    The engine mounts must NOT bend or deflect from the vertical position, damage to the mount will occur.

  2. Install the transmission support bolts (2) and tighten to 60 N.m (44 lb ft).
  3. Install the transmission travel mount bolt (1) and tighten to 100 N.m (74 lb ft).
  4. Remove the support from under the transmission.
  5. Lower the vehicle.
