Installation Procedure

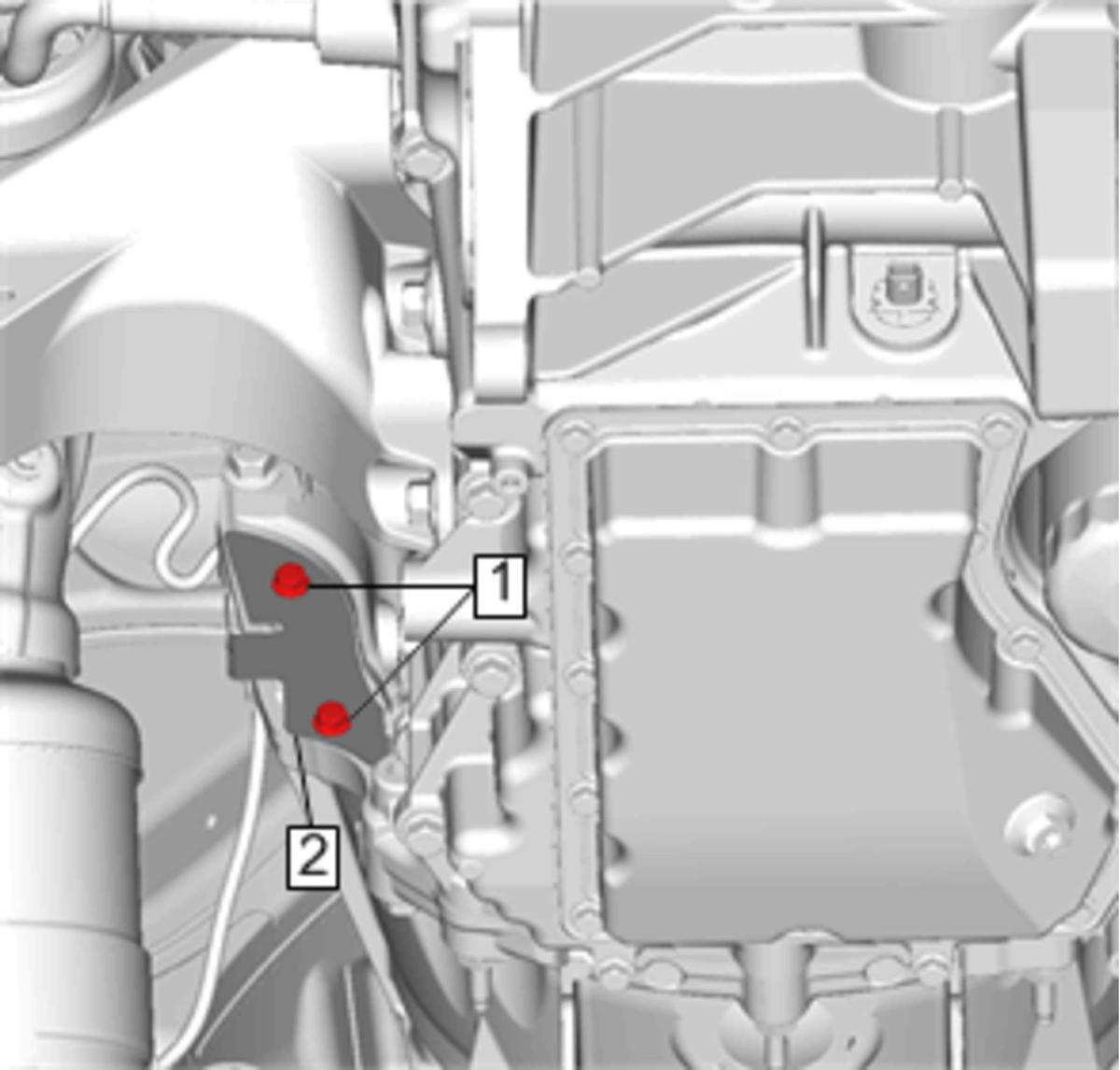

  1. GM4281362Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the transmission converter cover (2) and transmission converter cover bolts (1). Tighten the bolt to 9 N.m (80 lb in).

  2. Front Axle Propeller Shaft Replacement (LGX, LTG) - Install
