Transmission Control Lever Knob Replacement

Courtesy of GENERAL MOTORS COMPANY

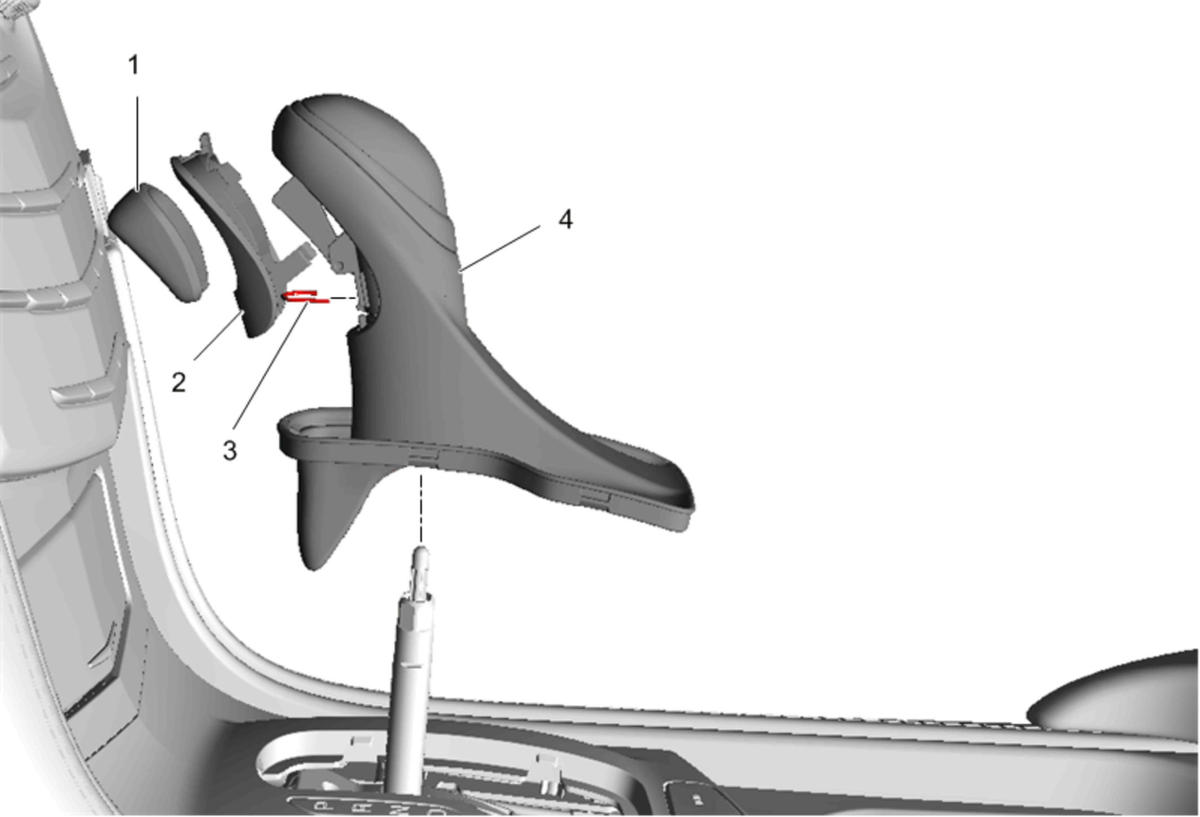

Callout	Component Name
Preliminary Procedures Set parking brake. Place the transmission control in the Neutral position. Release the shift boot from the trim bezel.
1	Transmission Control Lever Shift Button Procedure Using a soft bladed trim tool, gently pry off the button.
2	Transmission Control Lever Shift Button Trim Bezel Procedure Using a soft bladed trim tool, gently pry off the shift button trim bezel.
3	Transmission Control Lever Shift Knob Retaining Clip Procedure Using a suitable tool, remove the retaining clip.
4	Transmission Control Lever Knob NOTE: During knob installation, the retaining clip, shift button and shift button trim bezel can be installed to the shift knob, prior to complete assembly installation. The control lever boot and knob are replaced as an assembly. After knob installation, "pull shift knob straight upward with moderate force (No twisting motion) to ensure secure knob attachment to the transmission control assembly."
