Installation Procedure

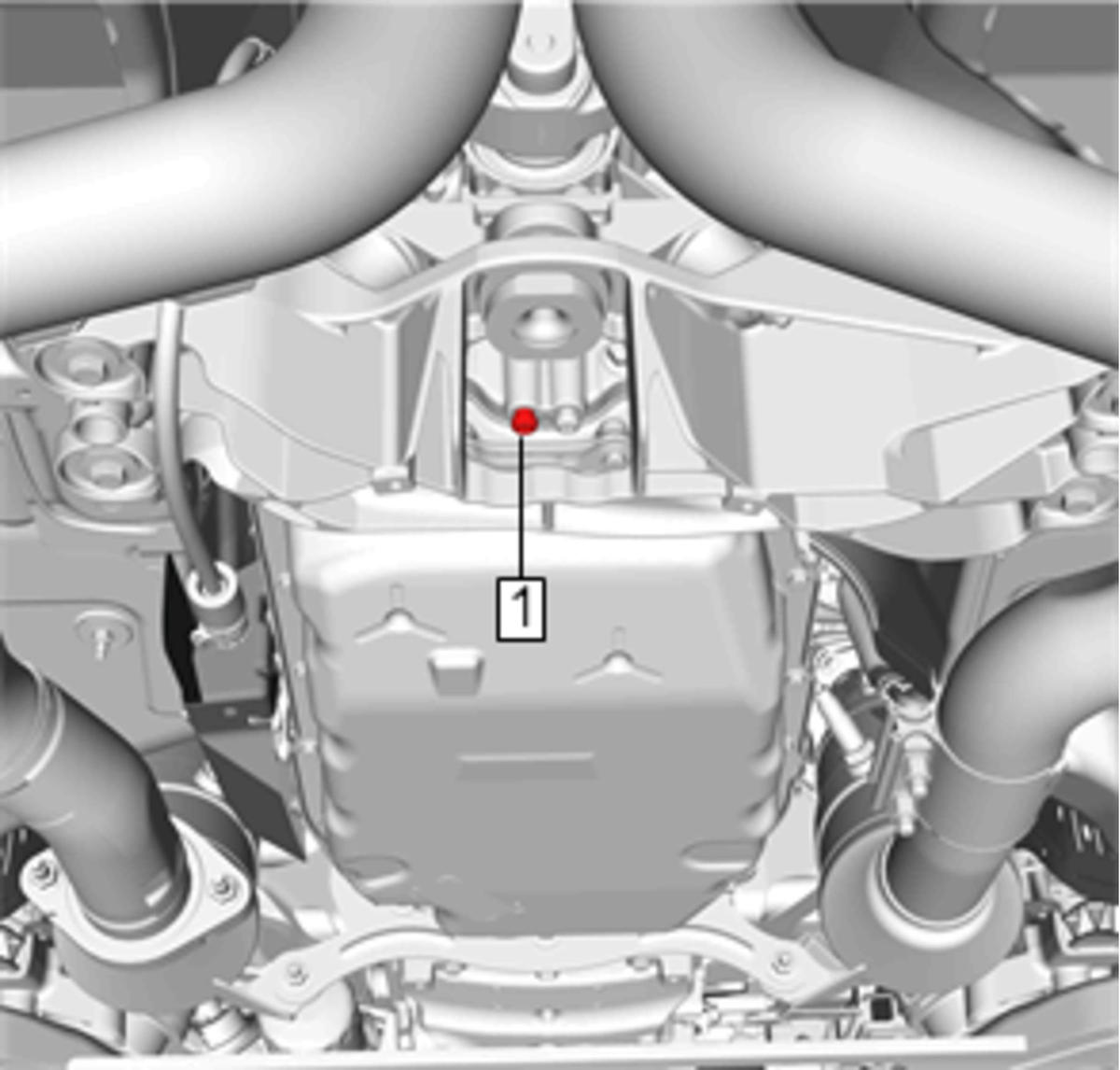

  1. GM4010802Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Install the oil pressure test plug (1) and tighten to 11 N.m (97 lb in).

  2. Check the transmission fluid level (fill if necessary). Refer to Transmission Fluid Fill Procedure .
  3. Lower the vehicle.
