Heater Outlet Hose Replacement (LTG without KL9)

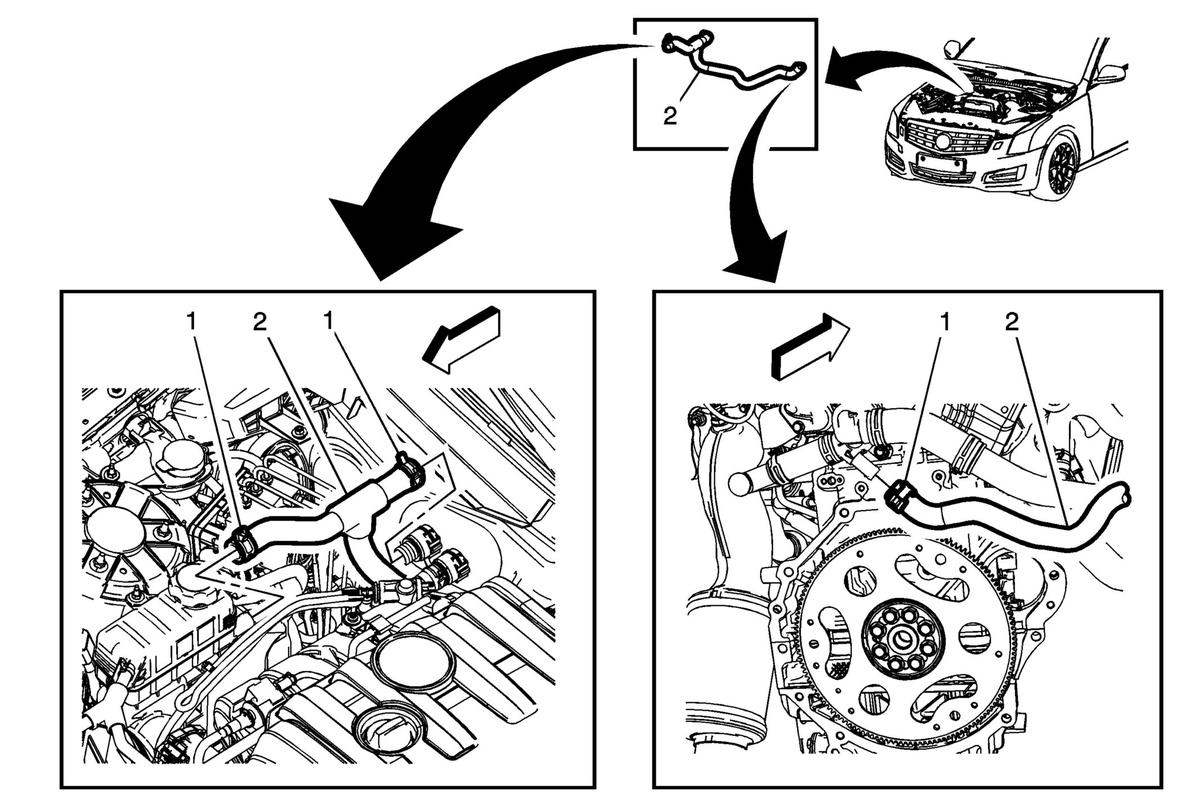

GM2885965Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the fuel pump. Fuel Pump Replacement
  2. Partially drain the cooling system. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
  3. Remove the radiator inlet pipe at the water outlet. Radiator Inlet Pipe Replacement (LTG)
1 Heater Outlet Hose Clamp (Qty: 3)
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Heater Outlet Hose

Procedure

  1. Fill coolant to the proper level. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
  2. Inspect cooling system for leaks. Cooling System Leak Testing
