Heater Outlet Hose Replacement (LTG with KL9)

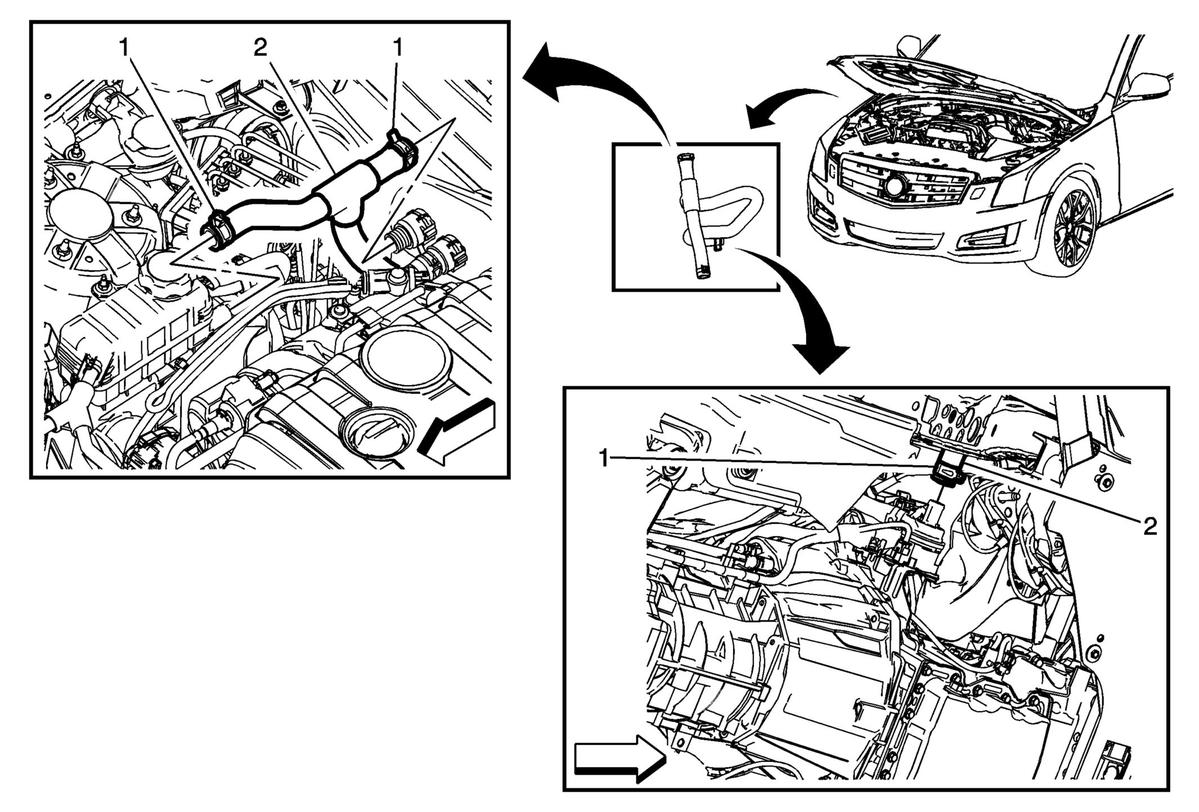

GM2876171Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the plenum front panel. Plenum Front Panel Replacement
  2. Partially drain the cooling system. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
1 Heater Outlet Hose Clamp (Qty: 3)
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Heater Outlet Hose

Procedure

  1. Fill coolant to the proper level. Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716)
  2. Inspect cooling system for leaks. Cooling System Leak Testing
