Air Cleaner Assembly Replacement (LF4)

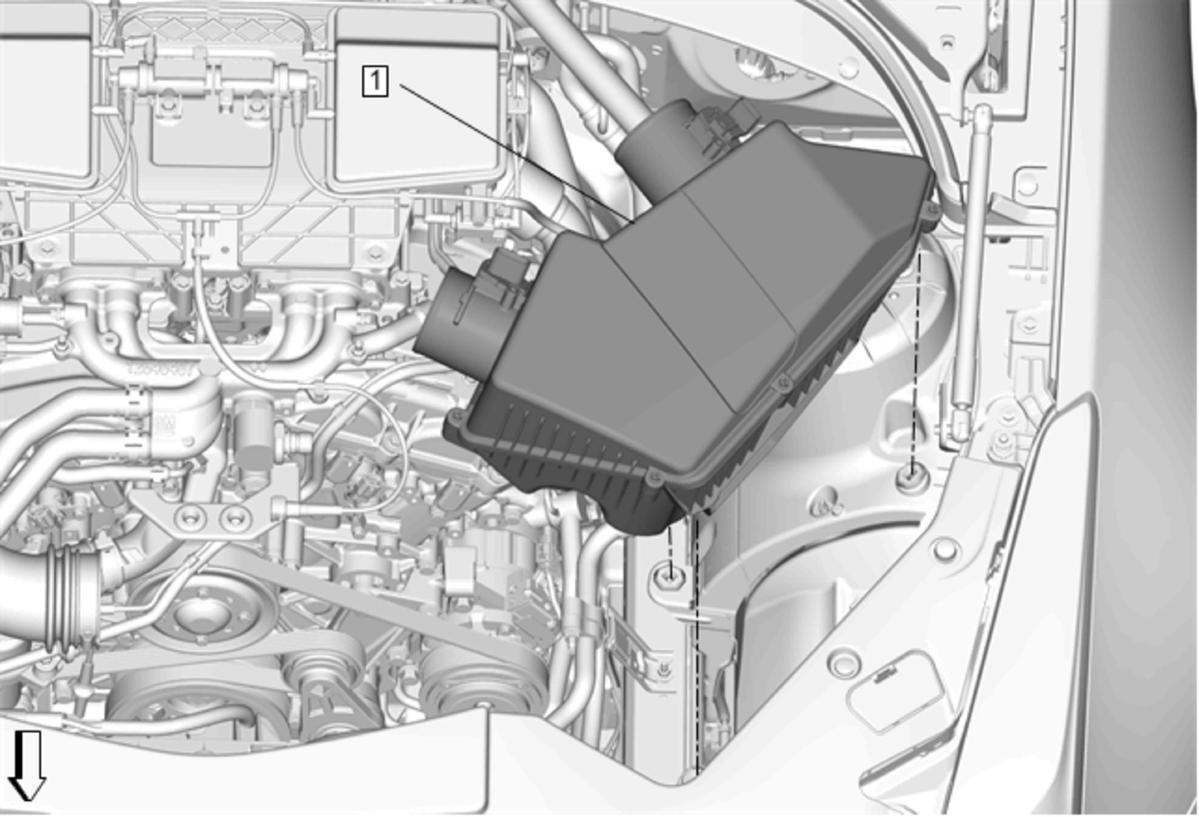

GM4023361Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct @ Air Cleaner Assembly - Disconnect - Air Cleaner Outlet Duct Replacement (LF4)
  2. Air Cleaner Outlet Front Duct @ Air Cleaner Assembly - Disconnect - Air Cleaner Outlet Front Duct Replacement (LF4)
  3. Disconnect the mass airflow sensor electrical connector. [2x]
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
