Catalytic Converter Brace Bracket Replacement (LF4)

Courtesy of GENERAL MOTORS COMPANY

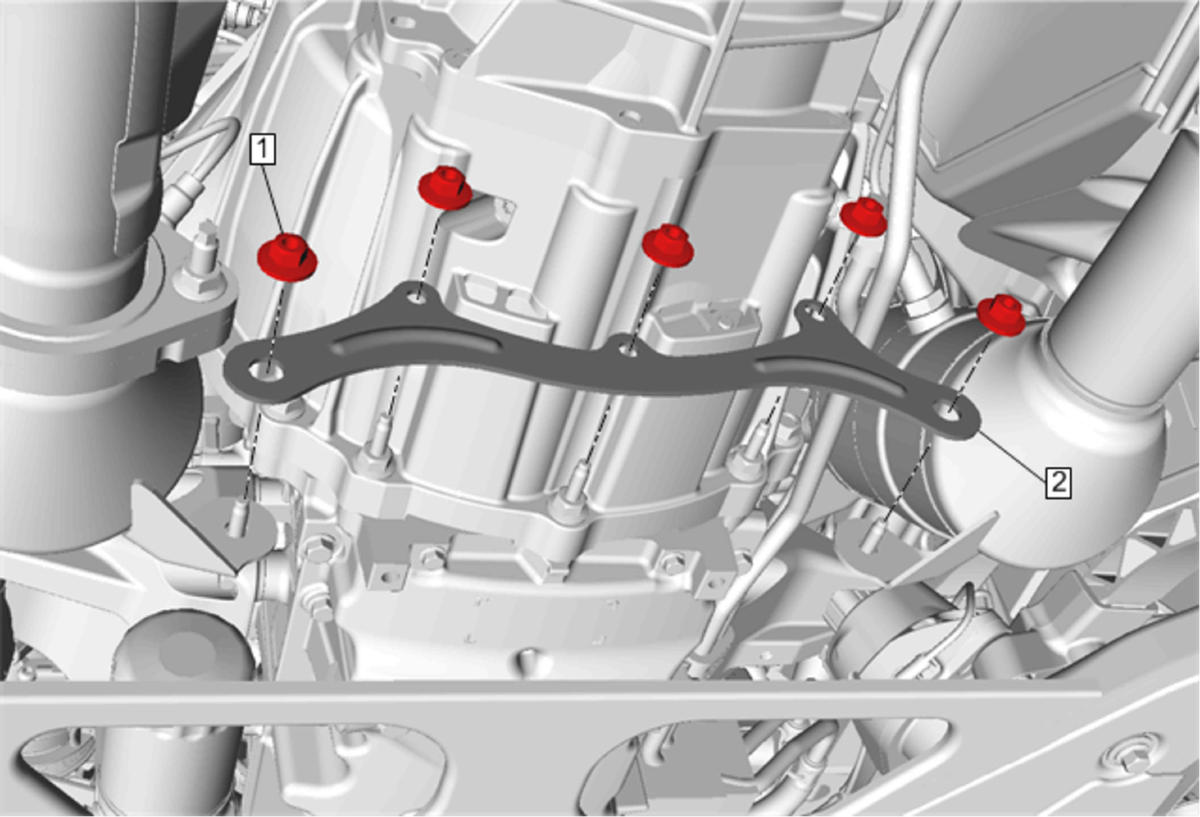

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle (ATS) , or Lifting and Jacking the Vehicle (ATS-V)
1	Catalytic Converter Brace Nut [5X] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Catalytic Converter Brace Bracket
