Front Fender Front Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

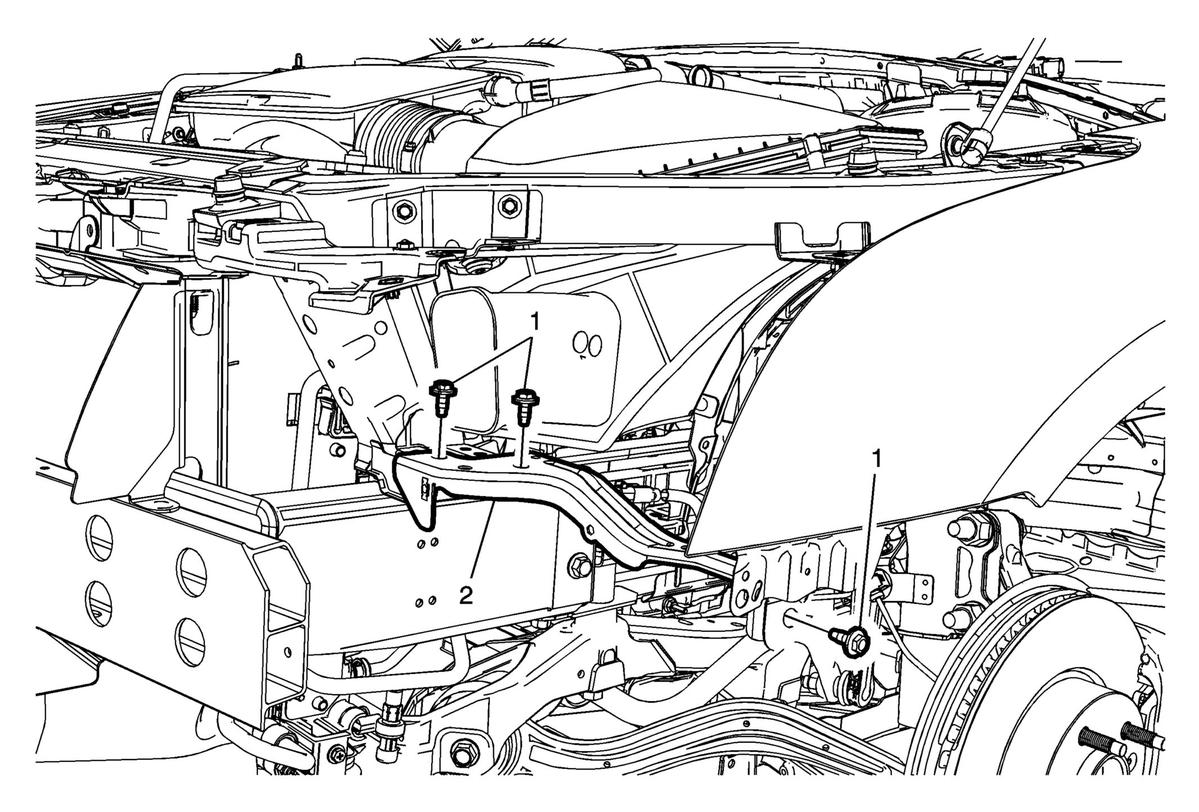

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (ATS) , or Front Bumper Fascia Replacement (ATS-V) . Remove the headlamp. Refer to Front Headlamp Replacement (HID) , or Front Headlamp Replacement (Halogen) . If replacing the left side fender brace, remove the air intake splash shield. Refer to Intake Air Splash Shield Replacement , for the 2.0L (LTG) engine or Intake Air Splash Shield Replacement for the 2.8L, 3.0L, 3.2L, or 3.6L engine.
1	Front Fender Front Brace Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Front Brace Procedure Disconnect the electrical harness from the front fender front brace. Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (ATS) , or Front Bumper Fascia Replacement (ATS-V) .
Remove the headlamp. Refer to Front Headlamp Replacement (HID) , or Front Headlamp Replacement (Halogen) .
If replacing the left side fender brace, remove the air intake splash shield. Refer to Intake Air Splash Shield Replacement , for the 2.0L (LTG) engine or Intake Air Splash Shield Replacement for the 2.8L, 3.0L, 3.2L, or 3.6L engine.

Front Fender Front Brace Bolt (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Fender Front Brace

Procedure
