Front Bumper Fascia Center Support Replacement

Courtesy of GENERAL MOTORS COMPANY

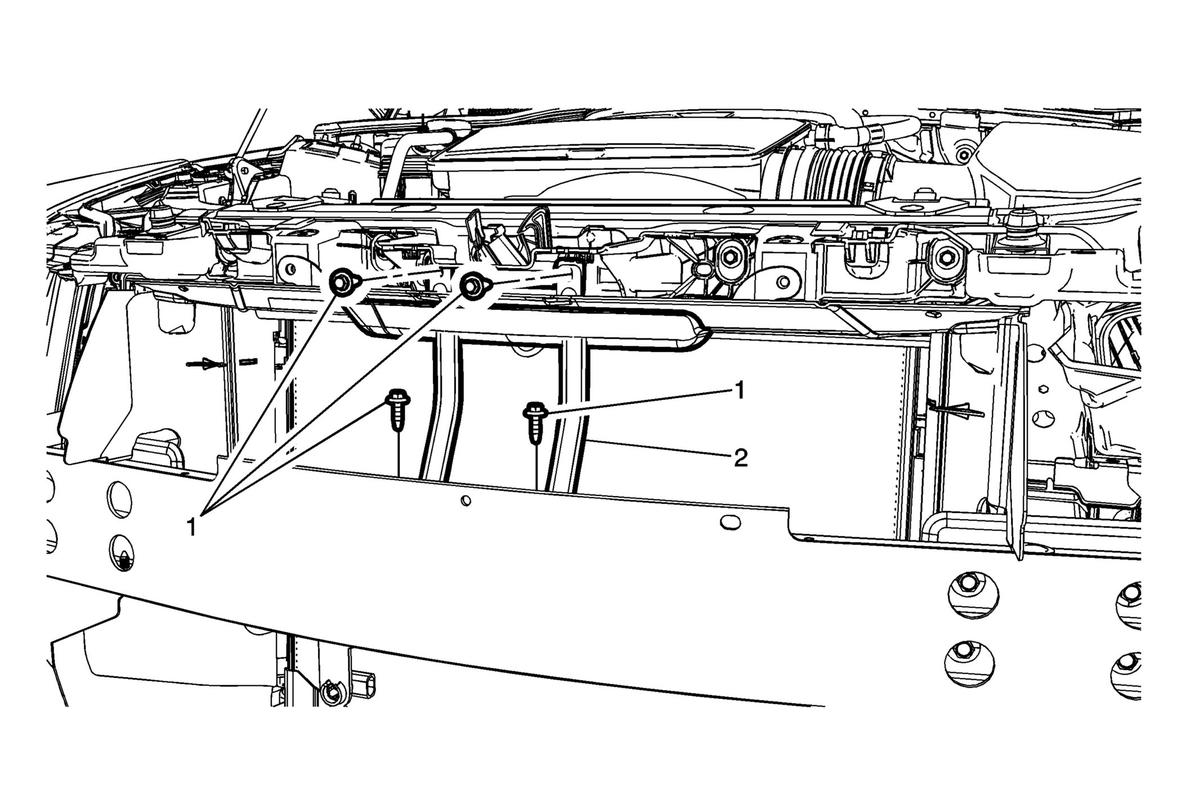

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (ATS) , or Front Bumper Fascia Replacement (ATS-V) .
1	Front Bumper Fascia Center Support Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Center Support
