Windshield Washer Solvent Container Replacement

Preliminary Procedure

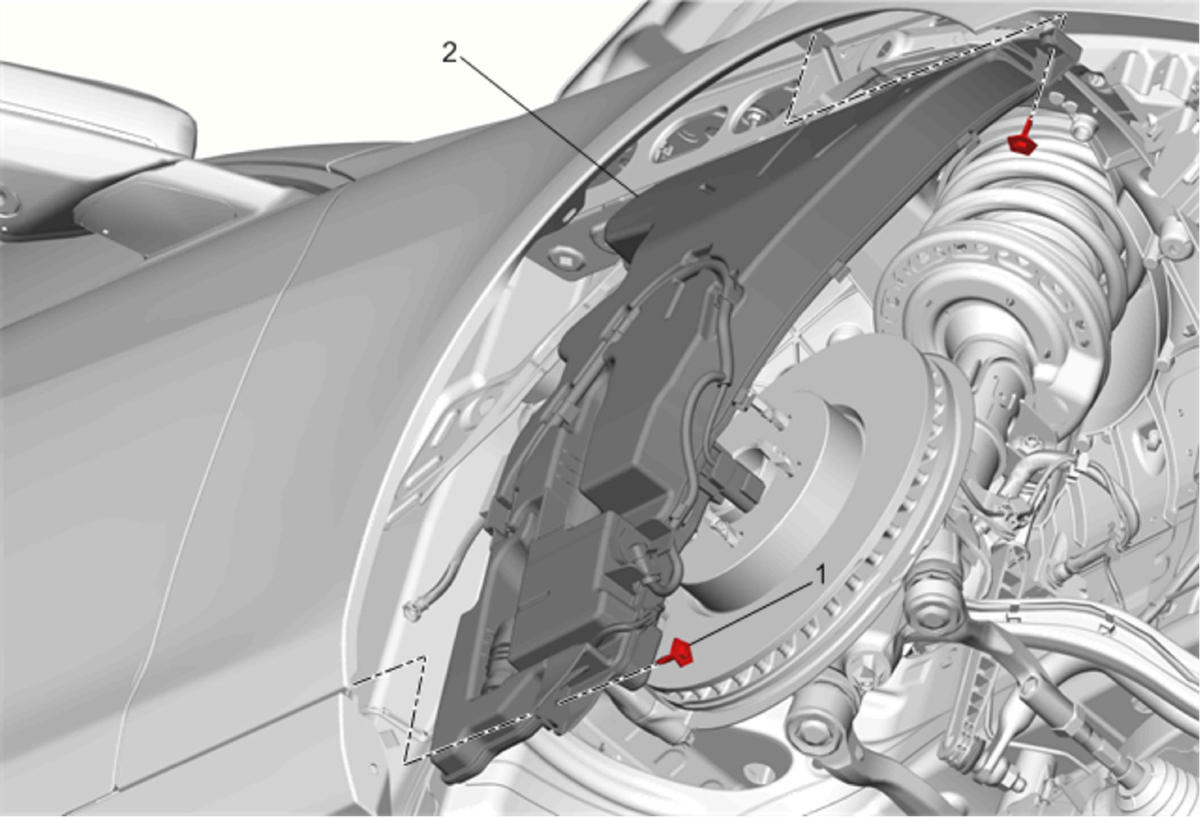

1. Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
2. Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .

Procedure

1. Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer hose nozzle hose connector hose is disconnected.
2. Disconnect windshield washer nozzle hose connector hose from windshield washer pump hose.
3. Disconnect the electrical connector from the windshield washer pump wiring harness.
4. Remove the windshield washer solvent container from the vehicle.
5. Empty the windshield washer solvent into a suitable clean container.
6. Transfer parts as needed.
