Rear Compartment Lid Hinge Replacement

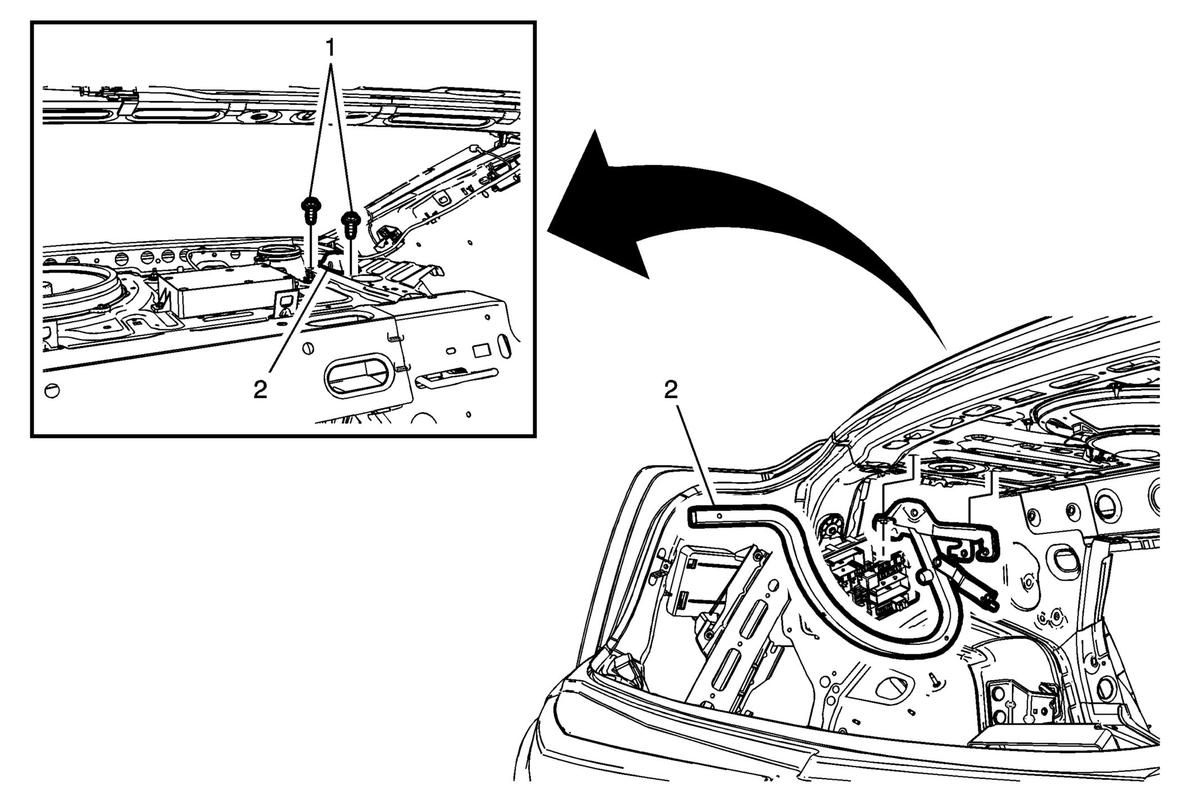

GM2810382

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
Remove the rear compartment lid hinge torque rod. Refer to Rear Compartment Lid Hinge Torque Rod Replacement .

1

Rear Compartment Lid Hinge Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
9 N.m (80 lb in)

2

Rear Compartment Lid Hinge
