Hood Primary Latch Release Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

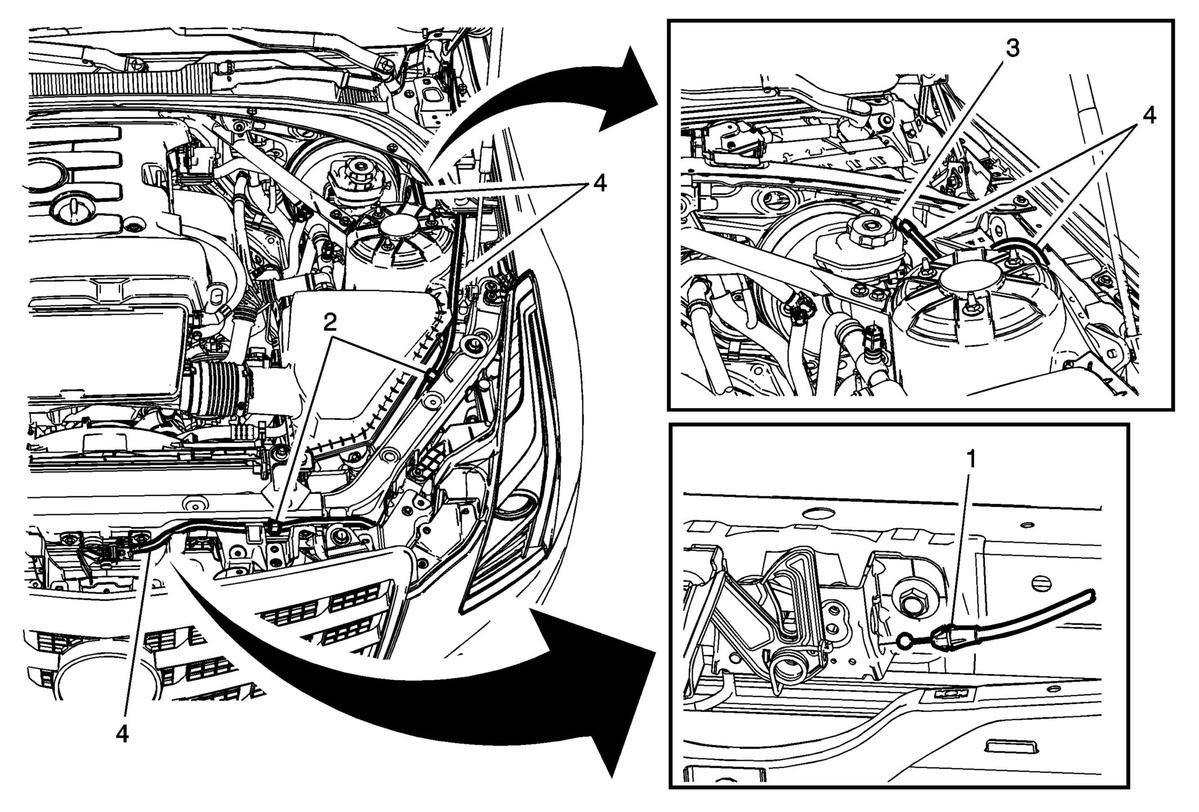

Callout	Component Name
Preliminary Procedure Remove the plenum upper panel hole plug. Remove the left insulator panel. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side) . Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (ATS) , or Front Compartment Front Sight Shield Replacement (ATS-V) .
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood primary latch release cable from the hood primary latch release cable retainer.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Note and follow the original routing of the release cable.
