Front Compartment Front Sight Shield Replacement (ATS-V)

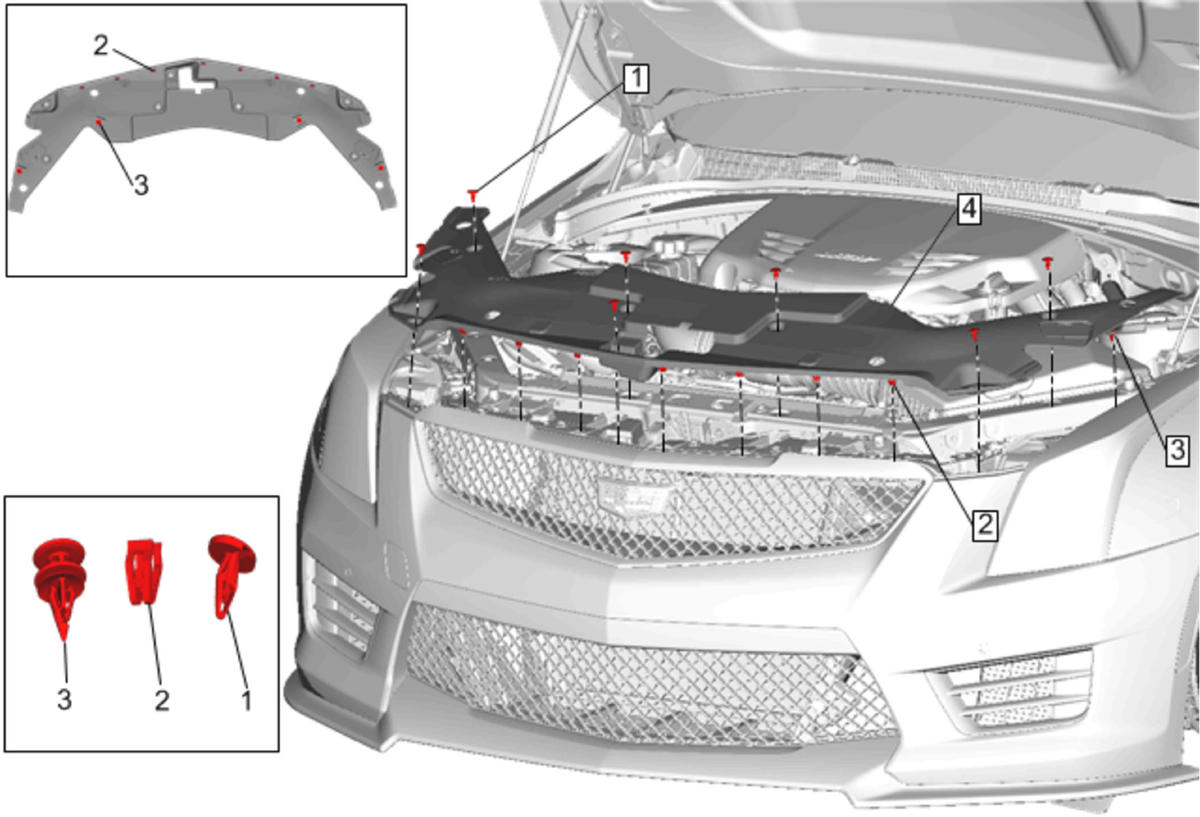

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Front Sight Shield Retainer [7x] |
| 2 | Front Compartment Front Sight Shield Clip [7x] Procedure Using a suitable trim tool, disengage the 7 hidden clips from the radiator air deflector. |
| 3 | Front Compartment Front Sight Shield Retainer Clip [4x] Procedure Using a suitable trim tool, disengage the 4 hidden retainer clips from the upper tie bar. |
| 4 | Front Compartment Front Sight Shield |
