Front Compartment Front Sight Shield Replacement (ATS)
Front Compartment Front Sight Shield Replacement (ATS)
Courtesy of GENERAL MOTORS COMPANY

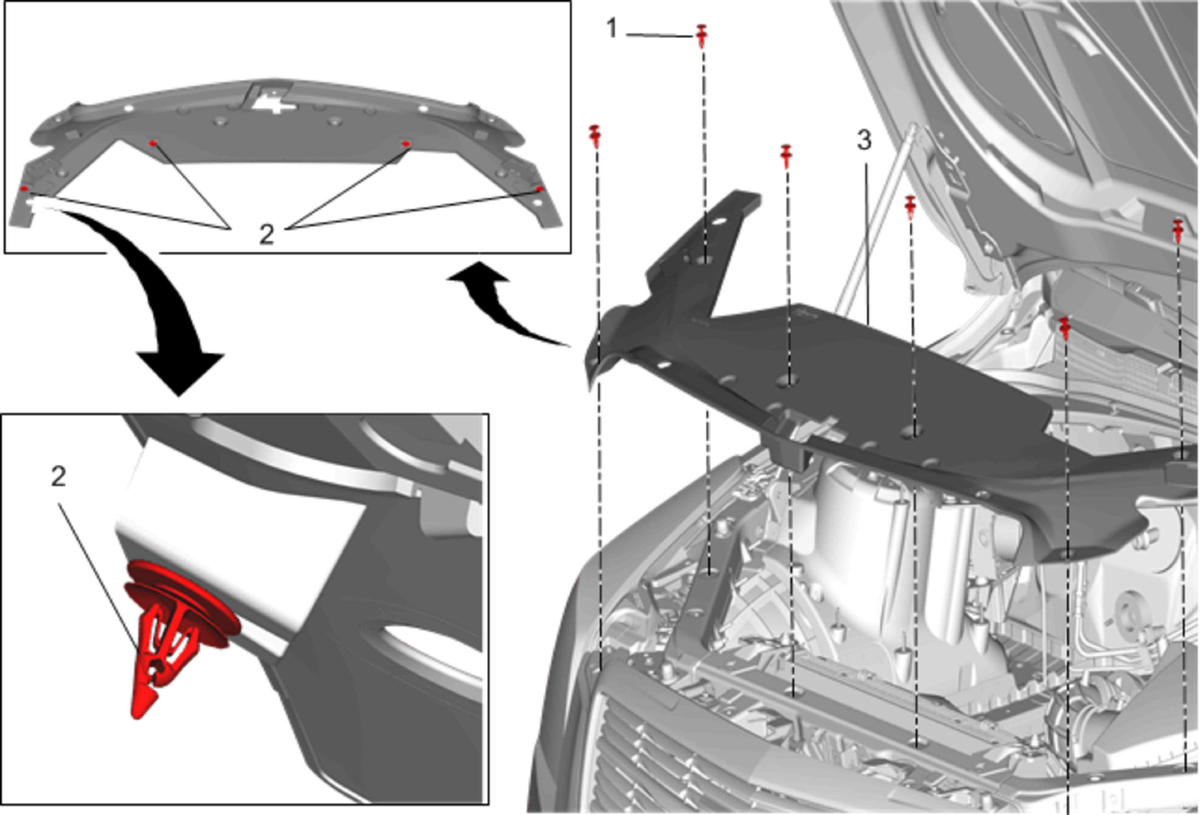

Callout
Component Name
1
Front Compartment Front Sight Shield Push-In Retainer [7x]
2
Front Compartment Front Sight Shield Retainer [4x]
Procedure
Using a suitable tool, disengage the 4 hidden retainers from the upper tie bar.
3
Front Compartment Front Sight Shield
