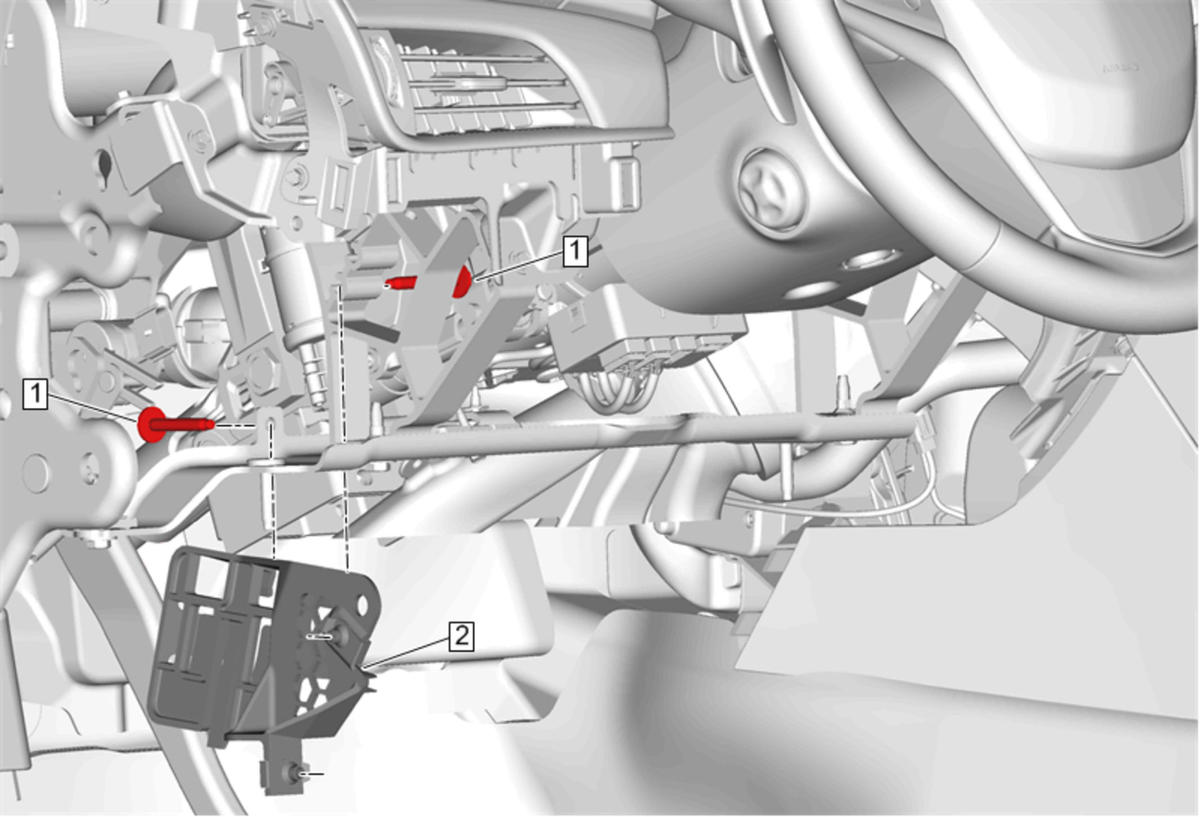

Serial Data Gateway Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Instrument Panel Knee Bolster Replacement
Serial Data Gateway Module Replacement
1
Serial Data Gateway Module Bracket Bolt [2x]
CAUTION:
Fastener Caution
Tighten
9 N.m (80 lb in)
2
Serial Data Gateway Bracket
