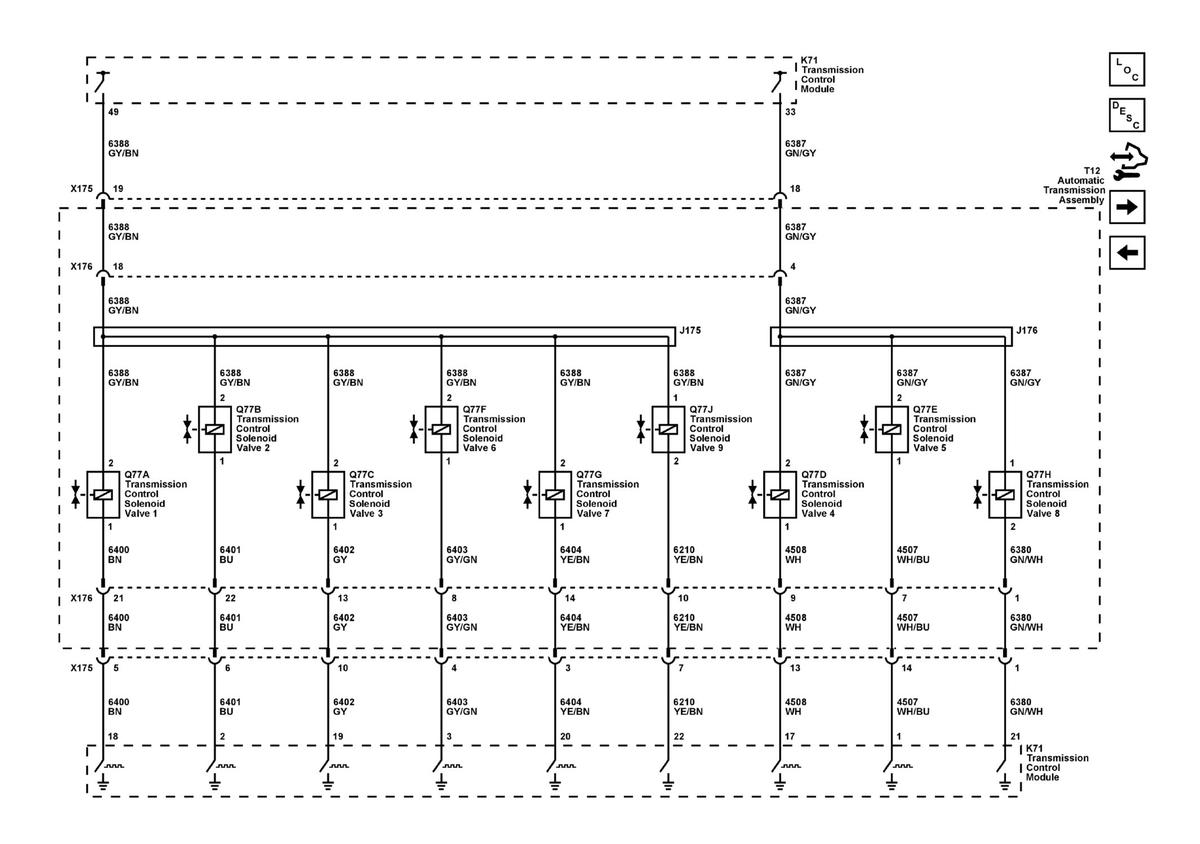

Home >> Cadillac >> 2019 >> ATS Base, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 8L45 (M5N M5T) Or 8L90 (M5U) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Pressure and Shift Controls
