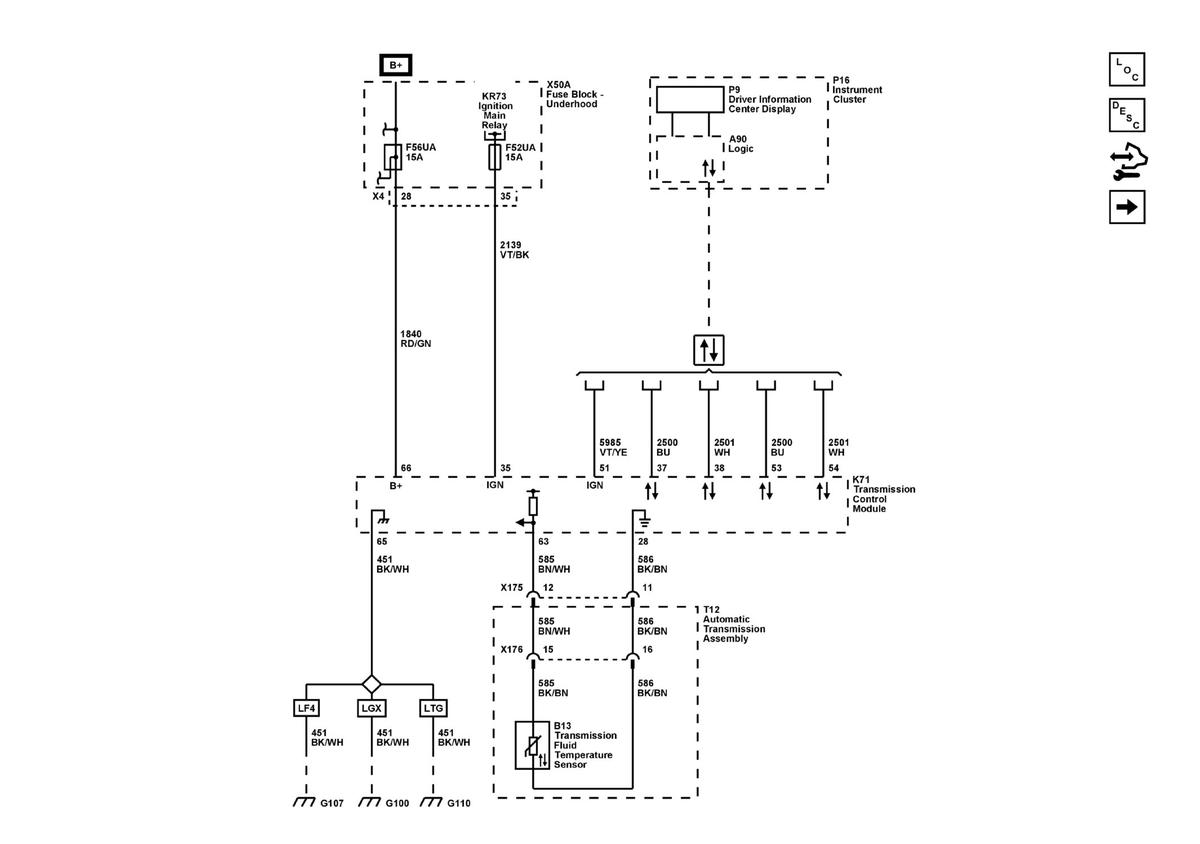

Power, Ground, Serial Data, MIL and Fluid Temperature

GM4939173

Courtesy of GENERAL MOTORS COMPANY
