Vacuum Pump Installation
WARNING: This page is about a different variant/trim than selected.

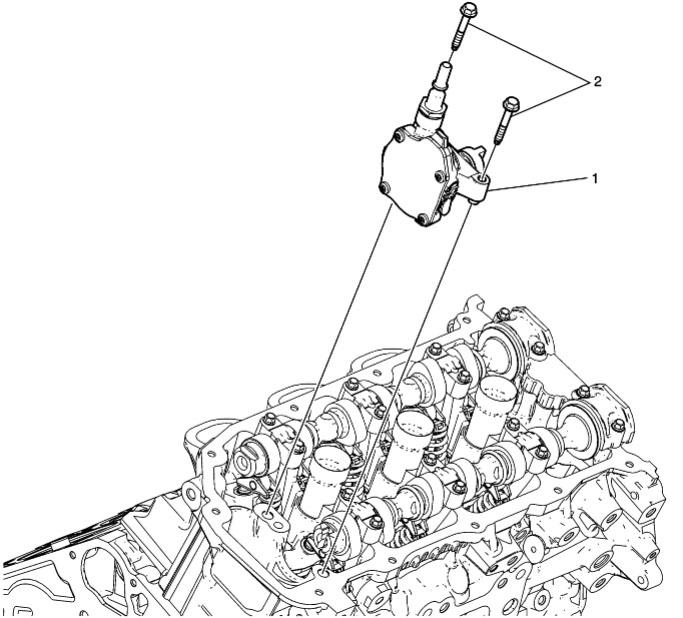

| Callout | Component Name |
|---|---|
| 1 | Vacuum Pump
NOTE:
Ensure the vacuum pump coupling and slot in the drive shaft are in a vertical position for installation of the pump. |
| 2 | Vacuum Pump Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
