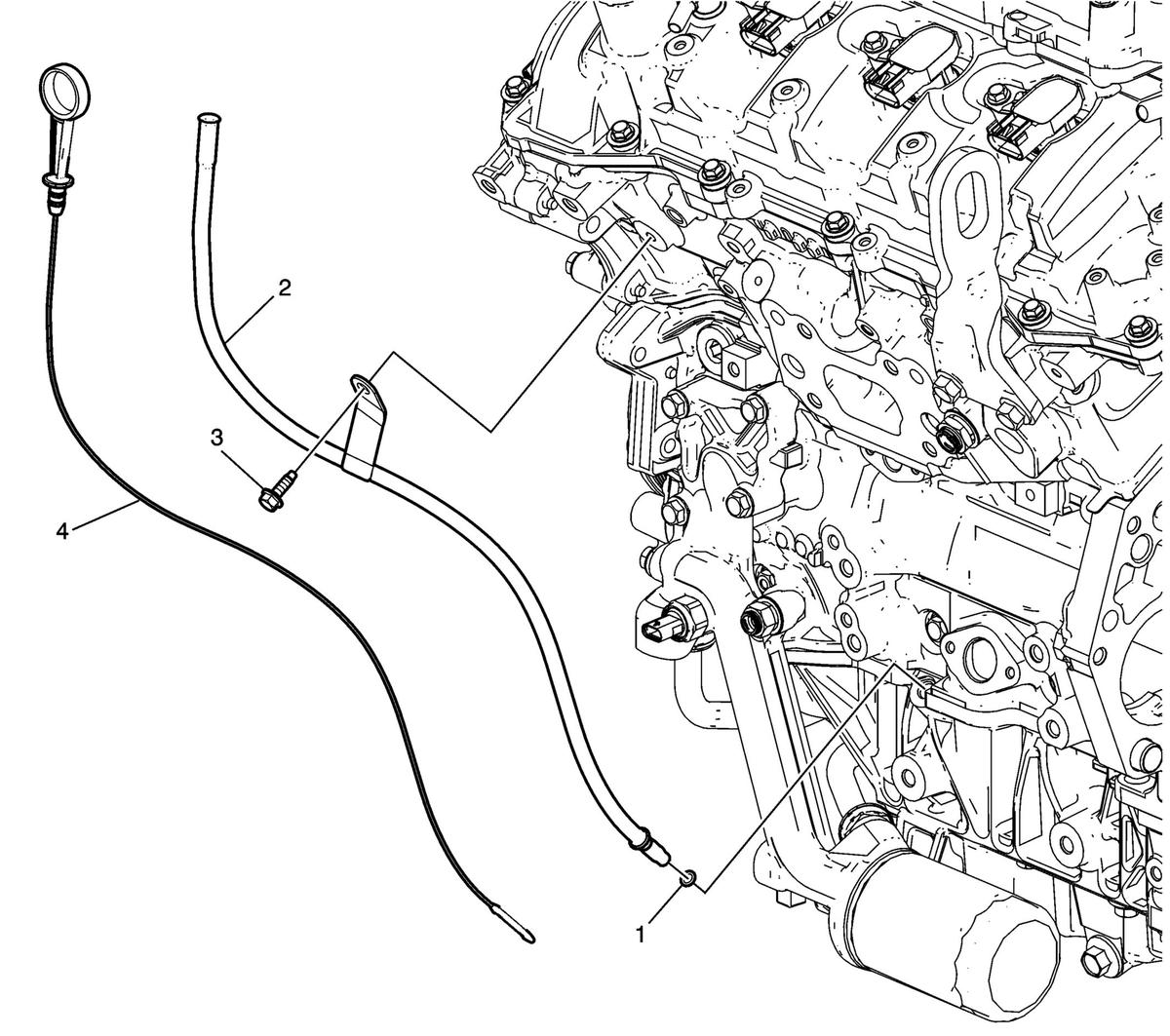

Oil Level Indicator and Tube Installation (LF4)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Oil Level Indicator Tub Seal
NOTE:
Install a NEW seal. It is not reusable.
|
| 2 |
Oil Level Indicator Tub |
| 3 |
Oil Level Indicator Tub Bolt
Tighten
10 N.m (89 lb in) |
| 4 |
Oil Level Indicator |
