Charge Air Cooler Cover Installation
WARNING: This page is about a different variant/trim than selected.

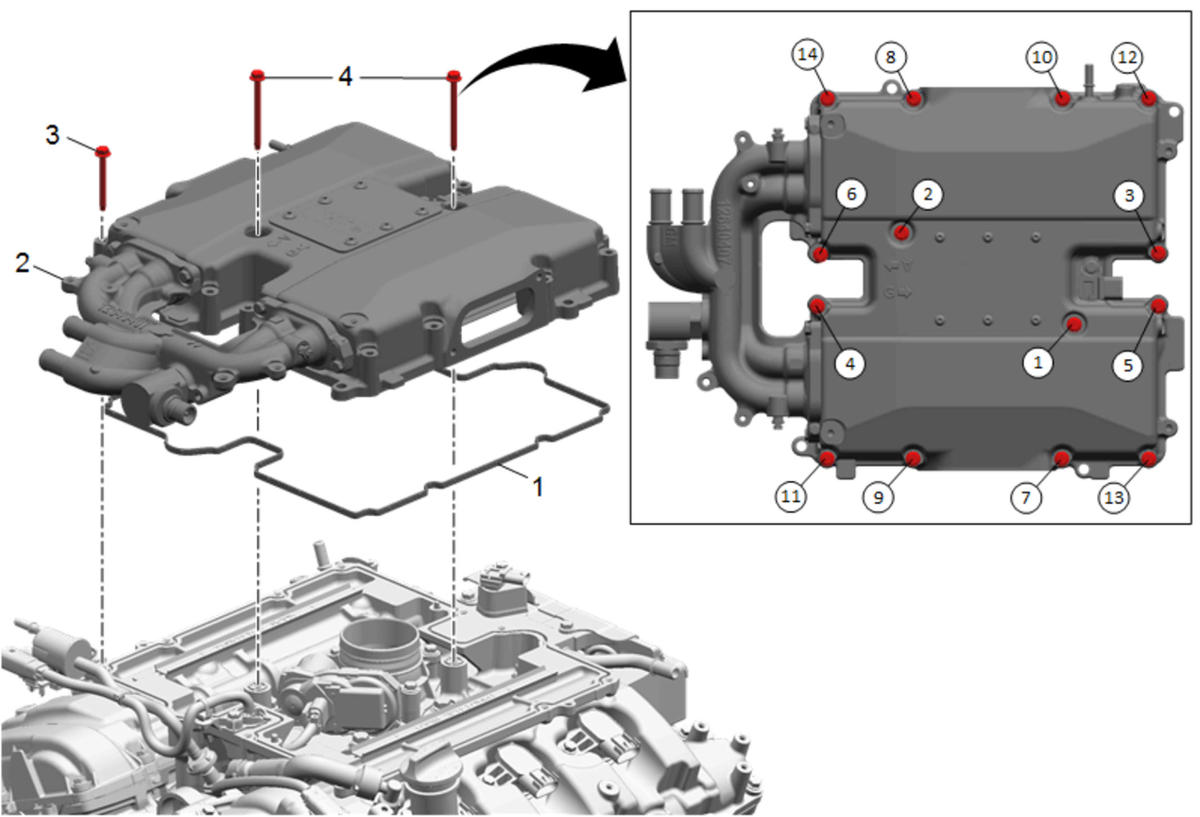

Fig 1: Exploded View Of Charge Air Cooler Cover Installation Components With Tightening Sequence (LF4)
Charge Air Cooler Cover Installation
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Gasket Procedure Install a NEW gasket. It is not reusable. |
| 2 | Charge Air Cooler Cover |
| 3 | Charge Air Cooler Cover Bolt [12x]
CAUTION:
Refer to Fastener Caution . Tighten in sequence 10 N.m (89 lb in) |
| 4 | Charge Air Cooler Cover Bolt [2x] Tighten in sequence 10 N.m (89 lb in) |
