Throttle Body Assembly Installation

WARNING: This page is about a different variant/trim than selected.

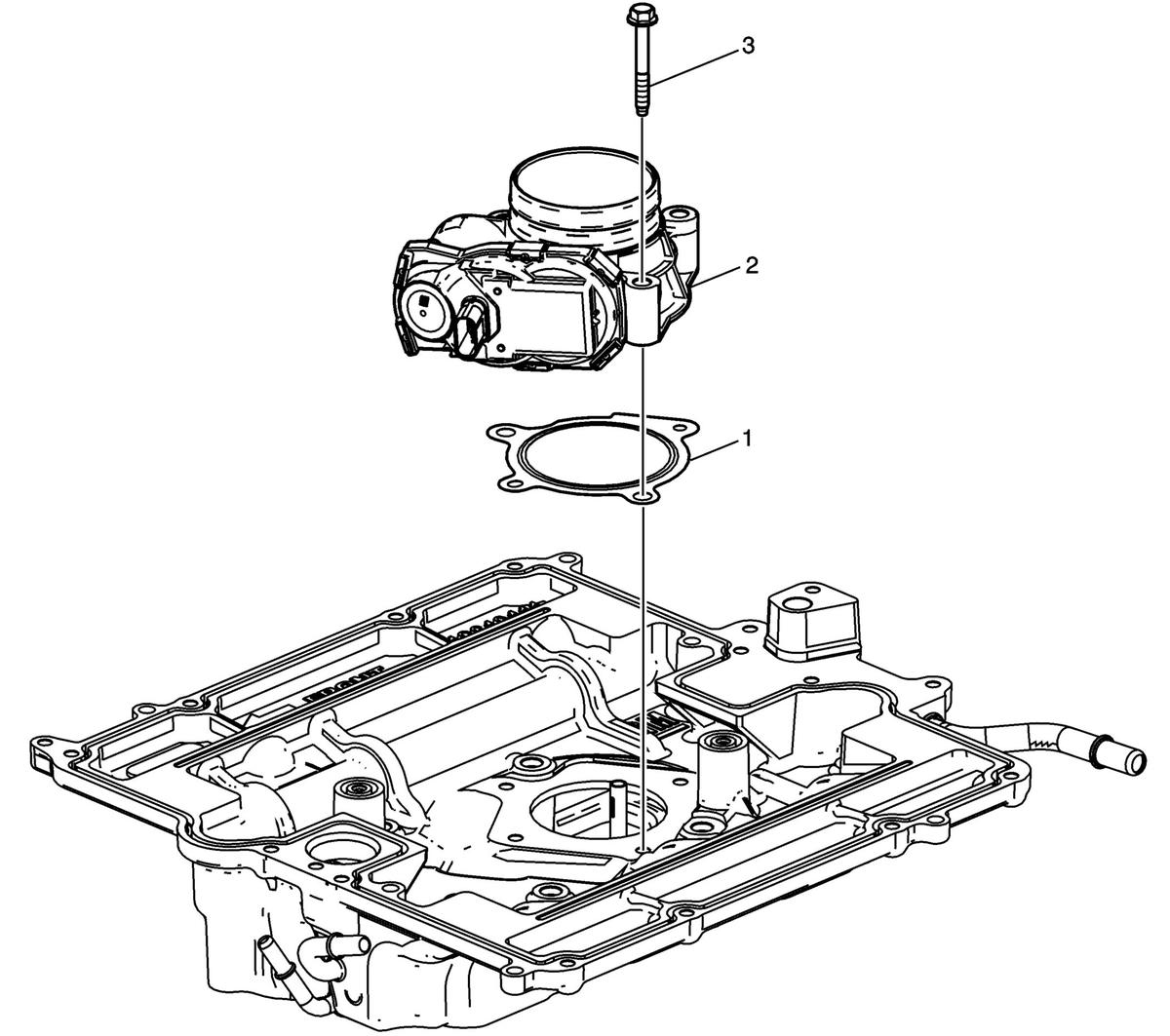

GM2887041Courtesy of GENERAL MOTORS COMPANY
Throttle Body Assembly Installation

Callout Component Name
1 Throttle Body Gasket
NOTE:

Install a NEW gasket.
2 Throttle Body Assembly
3 Throttle Body Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
