Throttle Actuator Wire Assembly Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

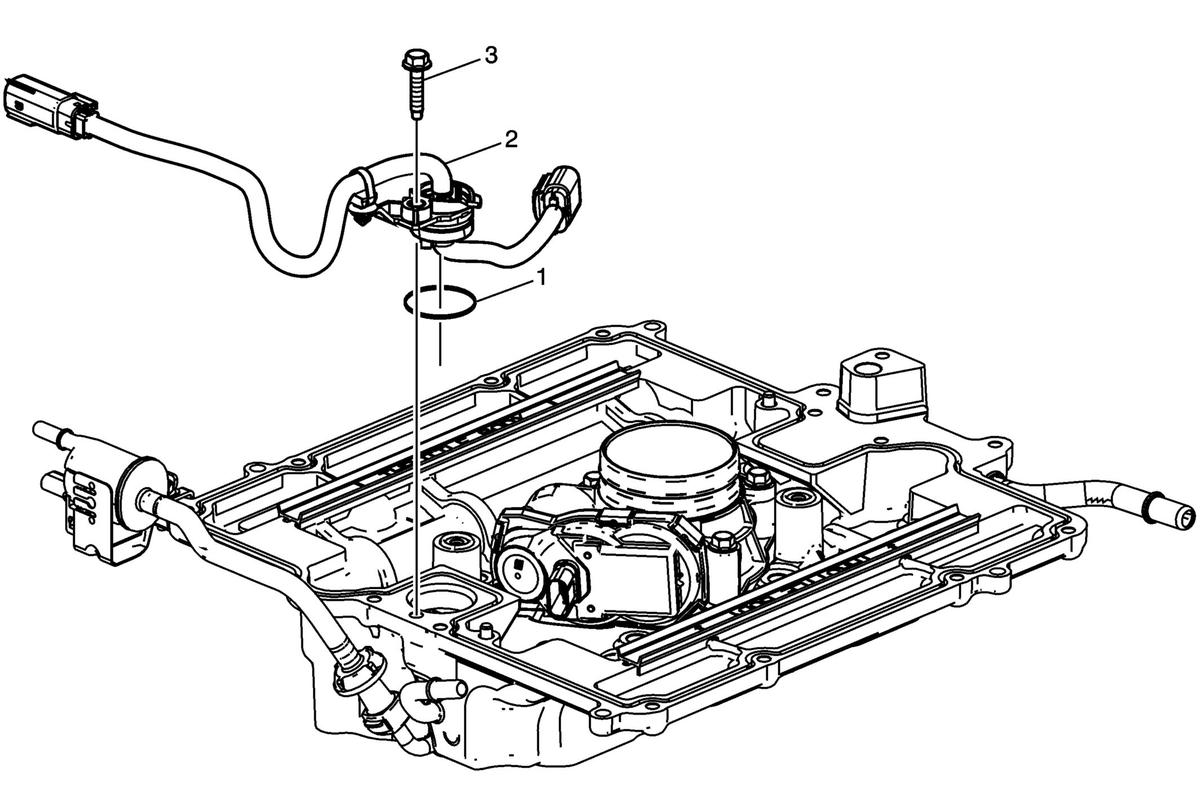

Throttle Actuator Wire Assembly Installation
| Callout |
Component Name |
| 1 |
Throttle Actuator Wire Assembly Seal
NOTE:
Install a NEW seal.
|
| 2 |
Throttle Actuator Wire Assembly |
| 3 |
Throttle Actuator Wire Assembly Bolt
Tighten
10 N.m (89 lb in) |
