Manifold Absolute Pressure Sensor (MAP) Installation

WARNING: This page is about a different variant/trim than selected.

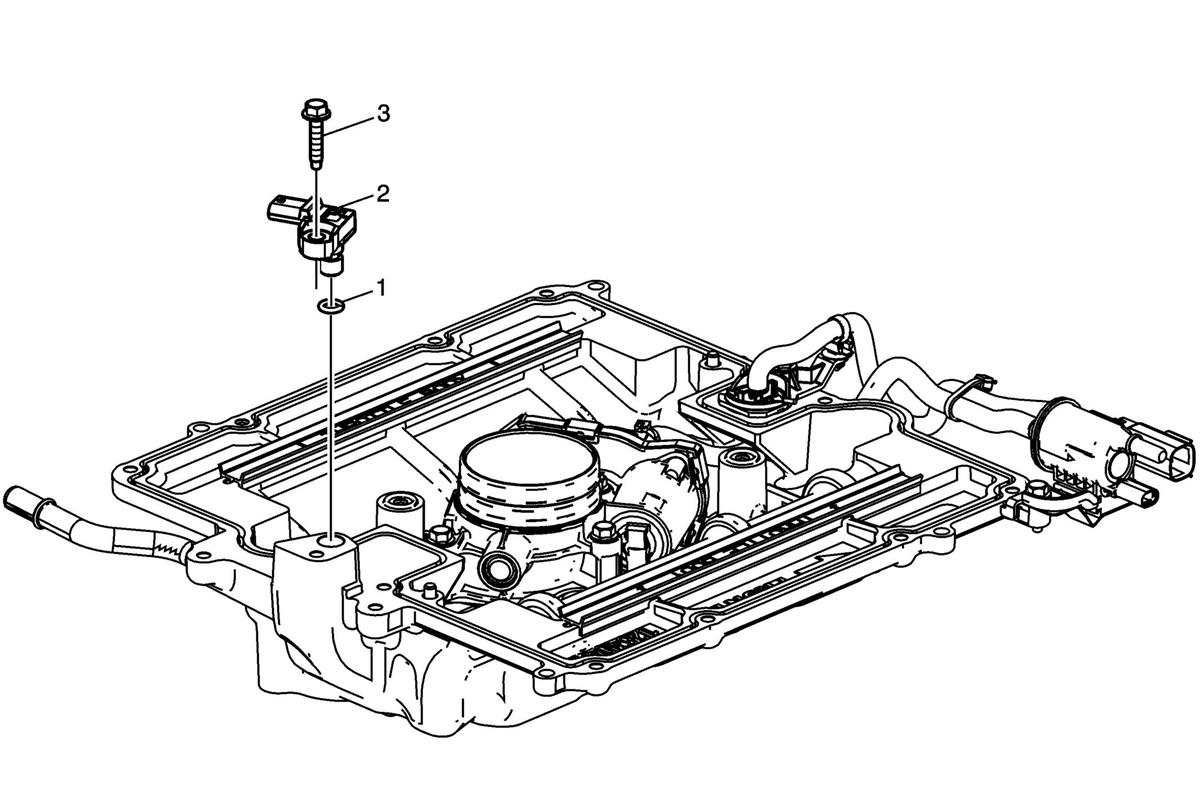

GM2887034Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor (MAP) Installation

Callout Component Name
1 MAP Sensor Seal
NOTE:

Install a NEW seal.
2 MAP Sensor
3 MAP Sensor Bolt
Tighten
4 N.m (35 lb in)
