Lower Intake Manifold Gasket Installation

WARNING: This page is about a different variant/trim than selected.

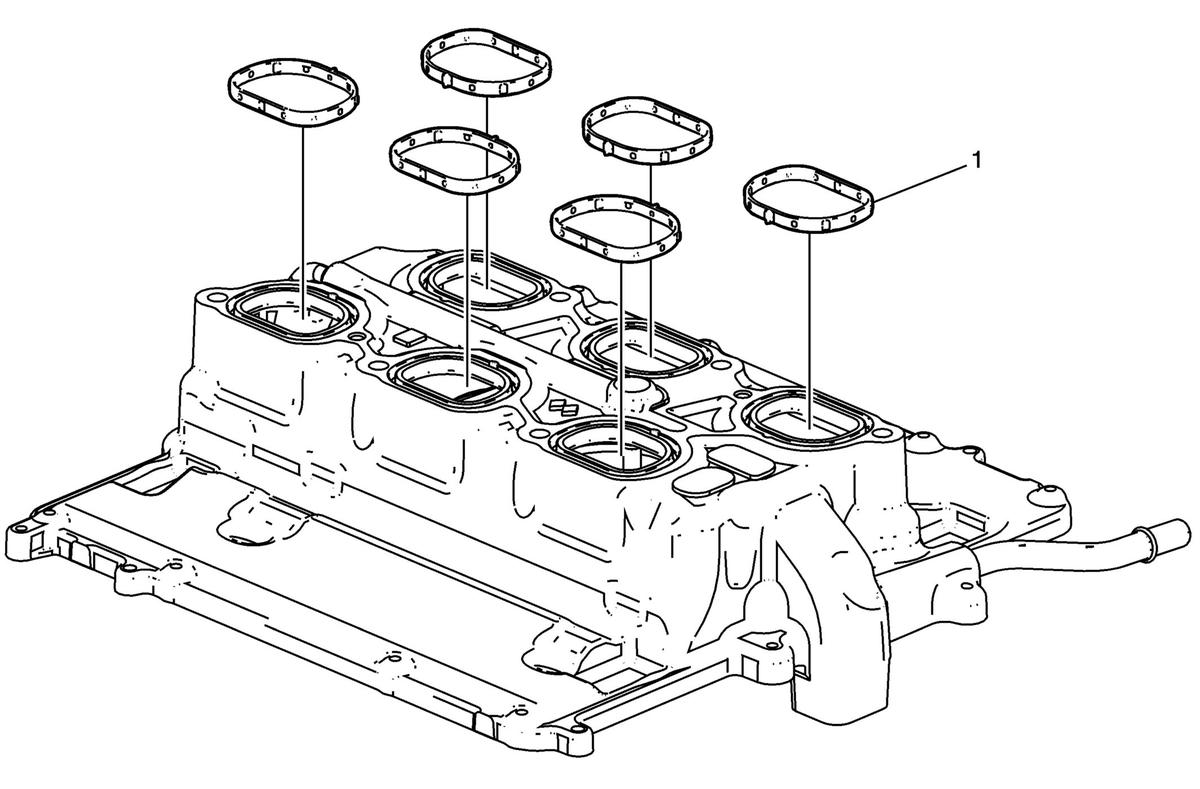

GM4046101Courtesy of GENERAL MOTORS COMPANY
Lower Intake Manifold Gasket Installation

Callout Component Name
1 Lower Intake Manifold Gasket
NOTE:

Install a NEW gasket.
