Intake Air Pressure and Temperature Sensor Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

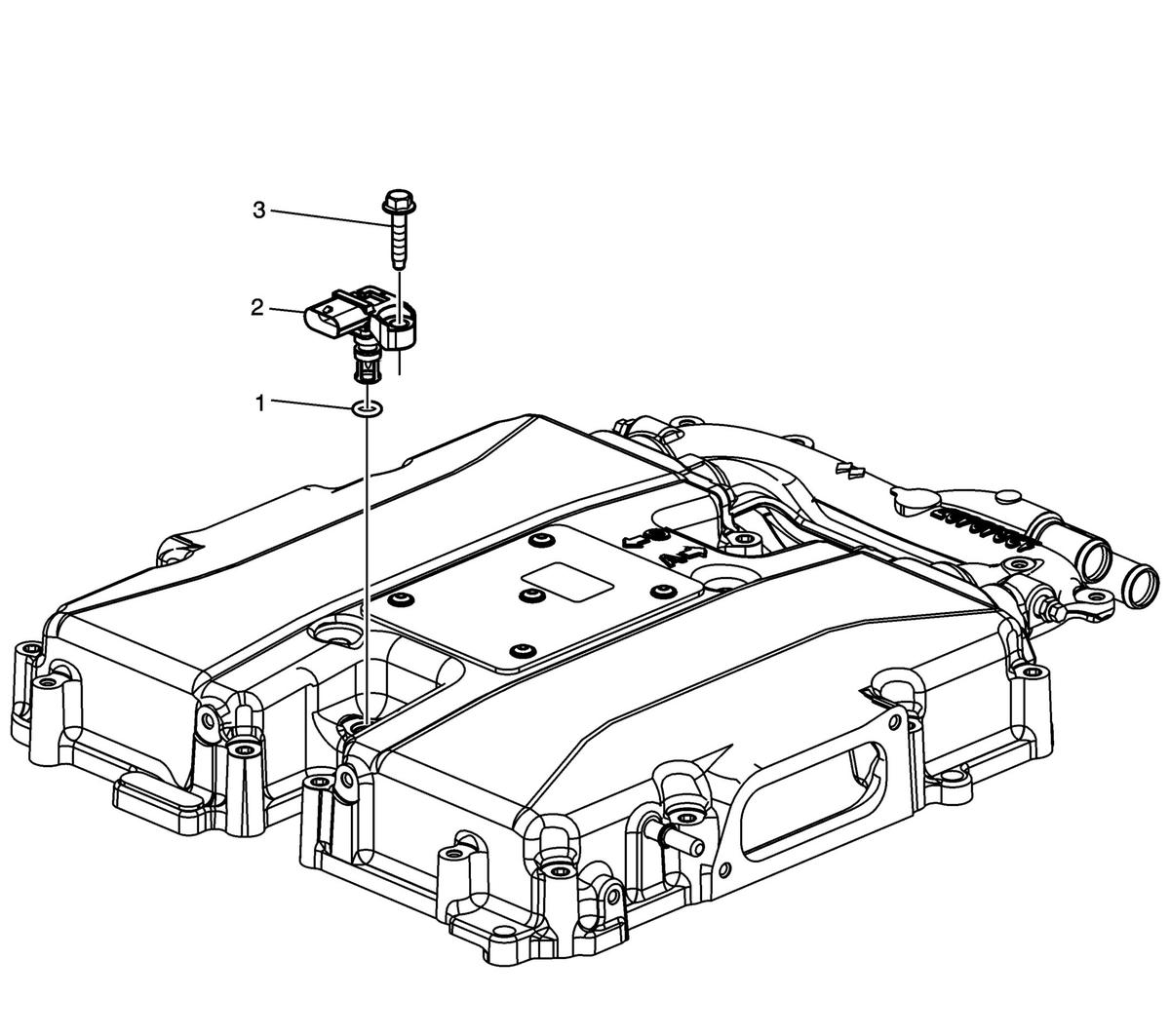

Intake Air Pressure and Temperature Sensor Installation
| Callout |
Component Name |
| 1 |
Air Pressure and Temperature Sensor Seal
NOTE:
Install a NEW seal.
|
| 2 |
Air Pressure and Temperature Sensor |
| 3 |
Air Pressure and Temperature Sensor Bolt
Tighten
10 N.m (89 lb in) |
