Charge Air Cooler Assembly Installation

WARNING: This page is about a different variant/trim than selected.

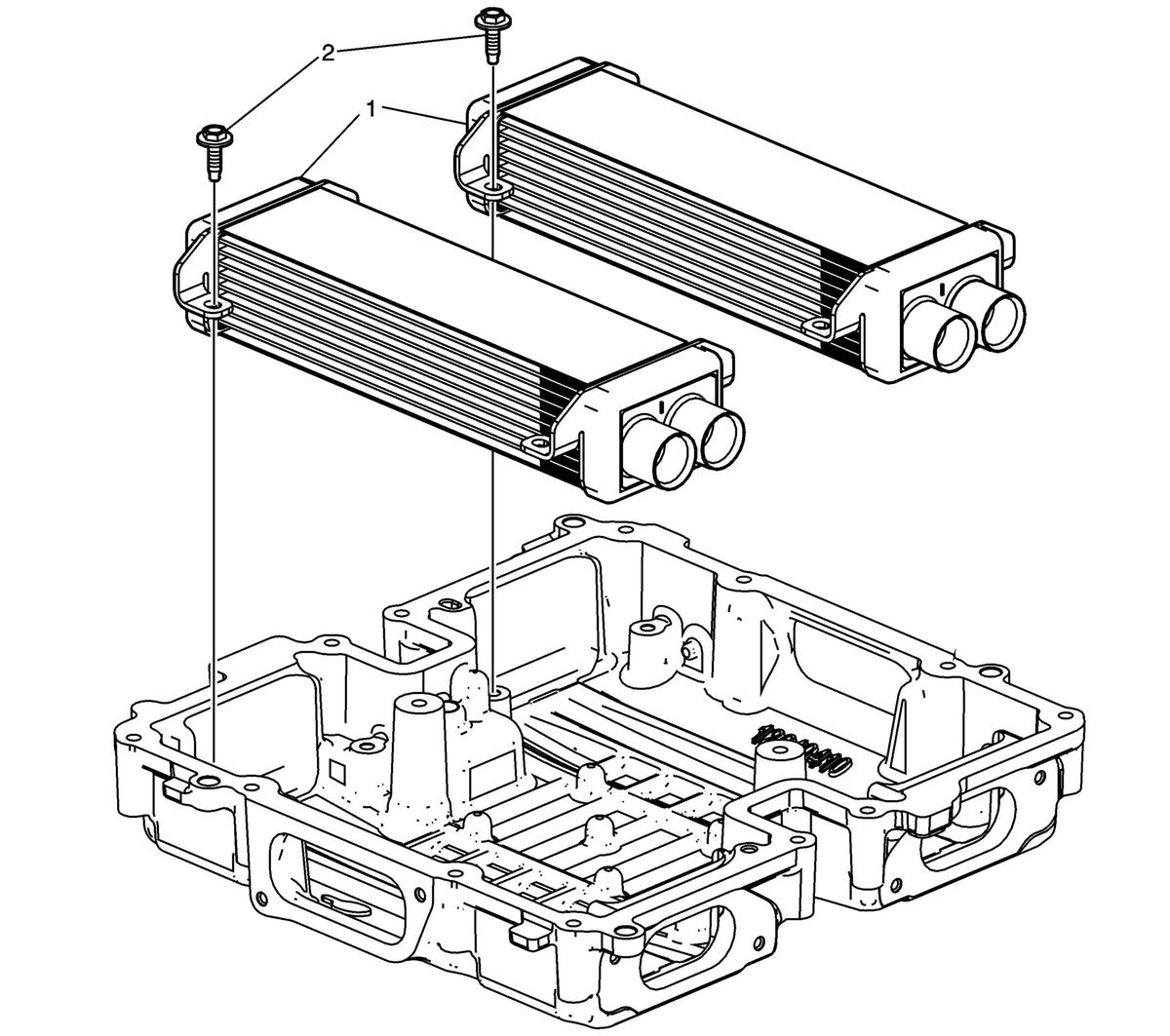

GM2887031Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Assembly Installation

Callout Component Name
1 Charge Air Cooler Assembly
2 Charge Air Cooler Assembly Bolts
Tighten
10 N.m (89 lb in)
