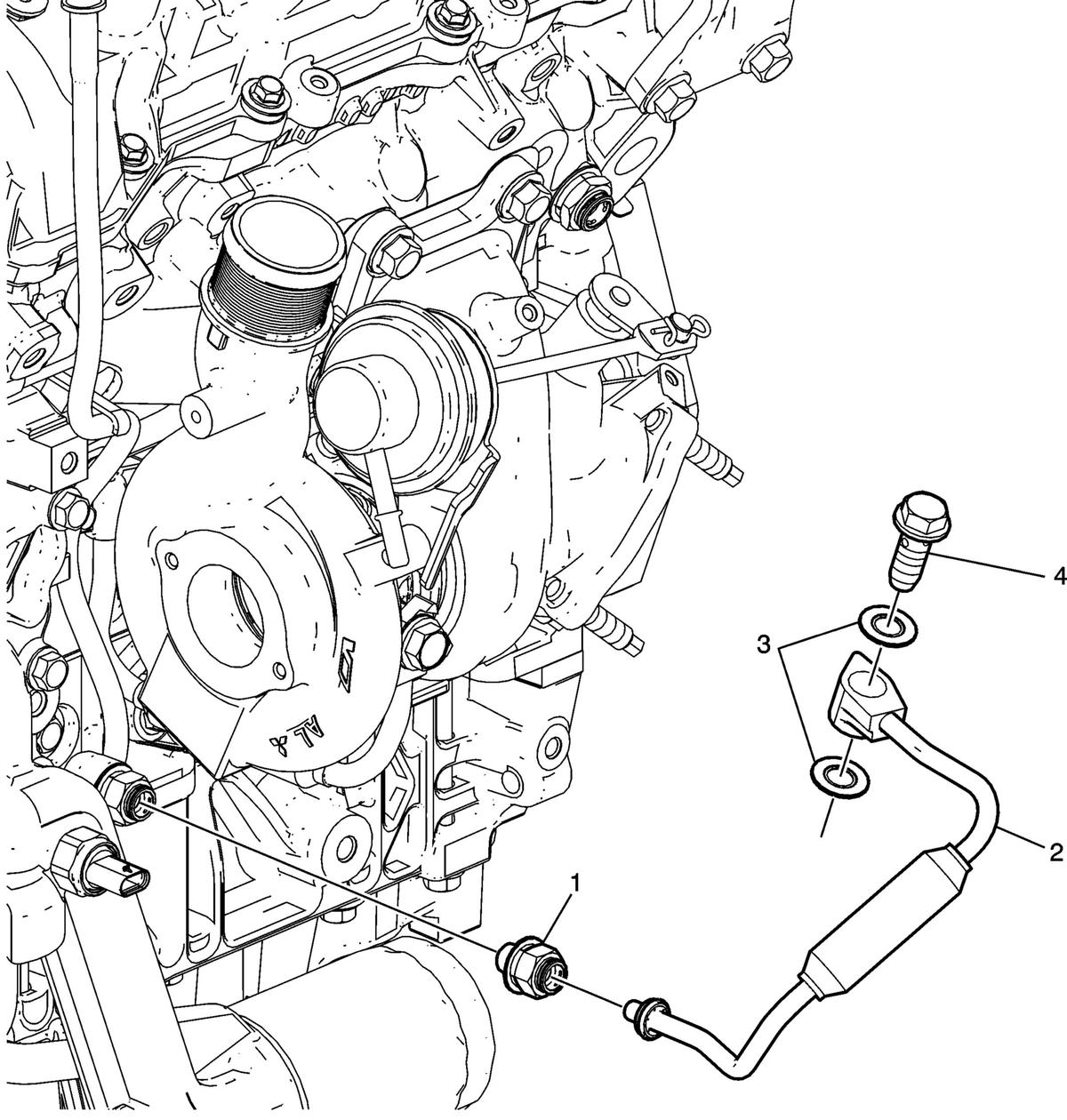

Turbocharger Oil Feed Pipe Installation
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Oil Feed Pipe Fitting
CAUTION:
Refer to Fastener Caution .
NOTE:
Install NEW fitting. It is not reusable Tighten 35 N.m (26 lb ft) |
| 2 | Turbocharger Oil Feed Pipe
CAUTION:
When installing a quick-connect turbocharger oil feed pipe, ensure that the oil feed pipe is fully secured into the oil feed pipe fitting. An audible click will be heard when the oil feed pipe is seated. If the oil feed pipe is not fully seated, an oil leak can occur in certain RPM ranges and will cause significant component and/or vehicle damage. Due to the possibility of significant component and/or vehicle damage from an oil feed pipe leak, it is necessary to start the engine and inspect for signs of leakage around the connections after performing the repair. |
| 3 | Turbocharger Oil Feed Pipe Gaskets
NOTE:
Install NEW gaskets. They are not reusable. |
| 4 | Turbocharger Oil Feed Pipe Bolt
CAUTION:
Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) |
