Turbocharger Heat Shield Installation

WARNING: This page is about a different variant/trim than selected.

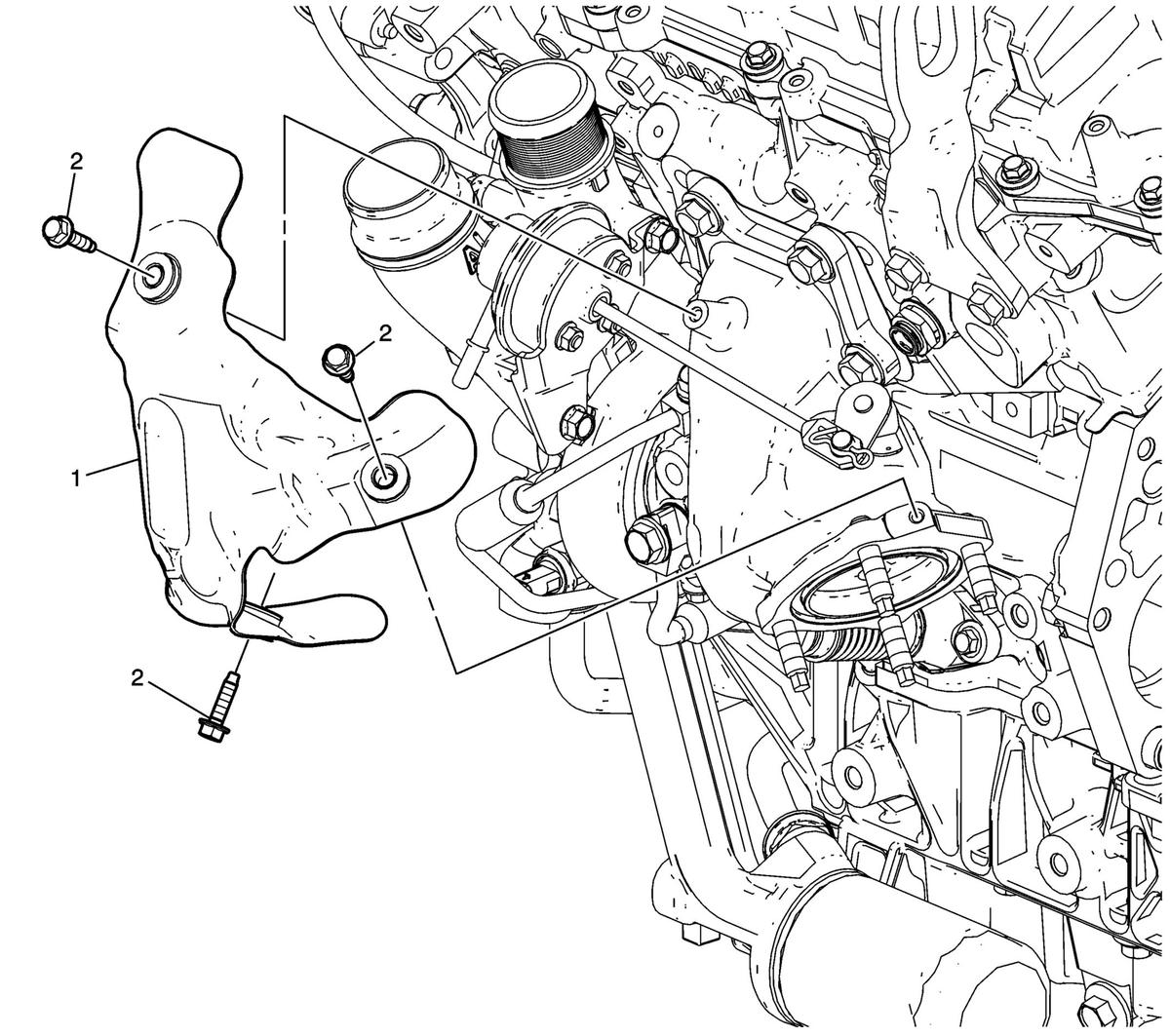

GM3239443Courtesy of GENERAL MOTORS COMPANY
Turbocharger Heat Shield Installation

Callout Component Name
1 Turbocharger Heat Shield
2 Turbocharger Heat Shield Bolts
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
