Turbocharger Coolant Feed Pipe Installation
WARNING: This page is about a different variant/trim than selected.
Turbocharger Coolant Feed Pipe Installation

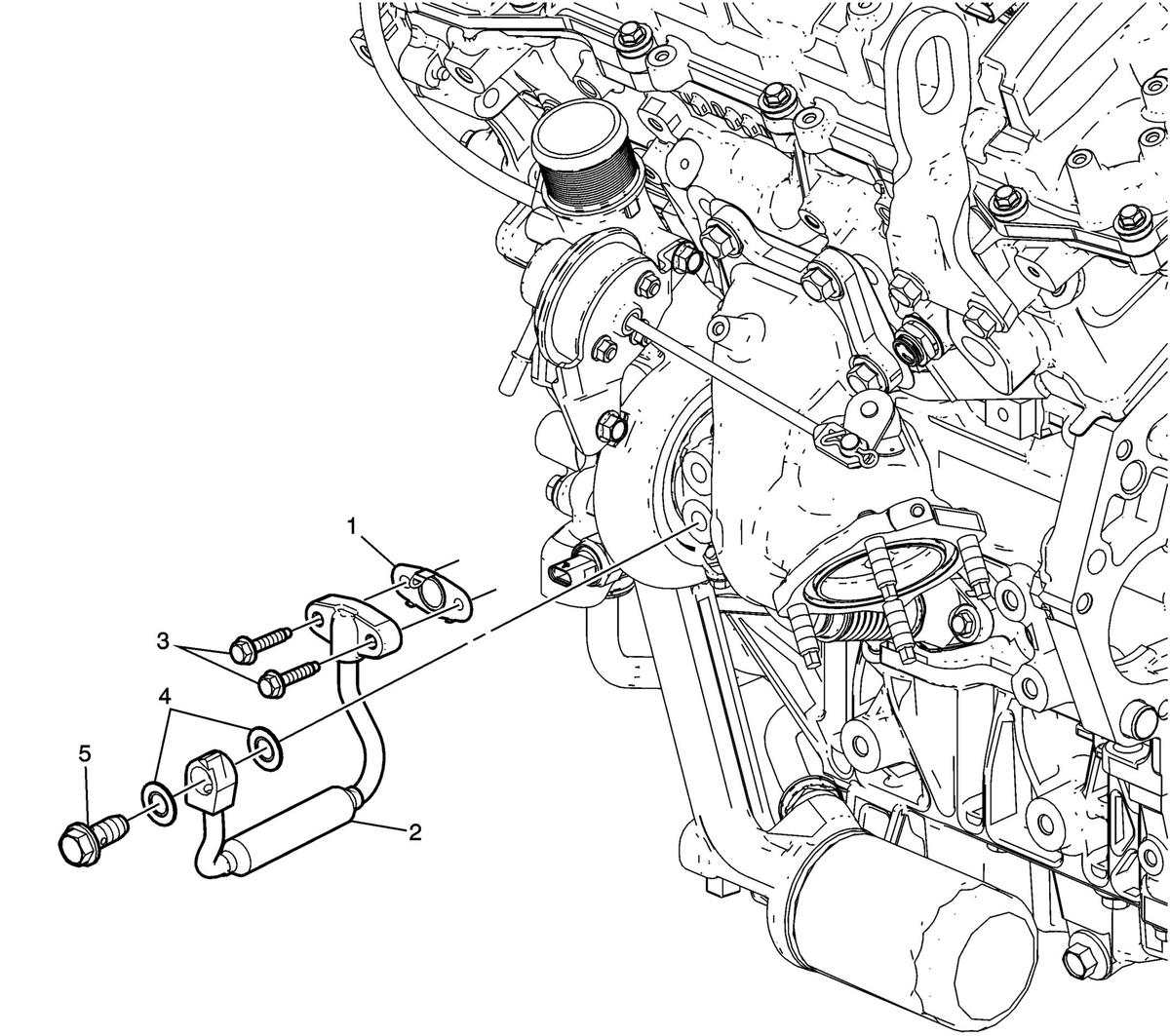

| Callout | Component Name |
|---|---|
| 1 | Turbocharger Coolant Feed Pipe Gasket
NOTE:
Install NEW gaskets. They are not reusable. |
| 2 | Turbocharger Coolant Feed Pipe |
| 3 | Turbocharger Coolant Feed Pipe Bolts
CAUTION:
Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) |
| 4 | Turbocharger Coolant Feed Pipe Gaskets
NOTE:
Install NEW gaskets. They are not reusable. |
| 5 | Turbocharger Coolant Feed Pipe Bolt Tighten 10 N.m (89 lb in) |
