Charge Air Cooler Inlet Air Tube Installation
WARNING: This page is about a different variant/trim than selected.

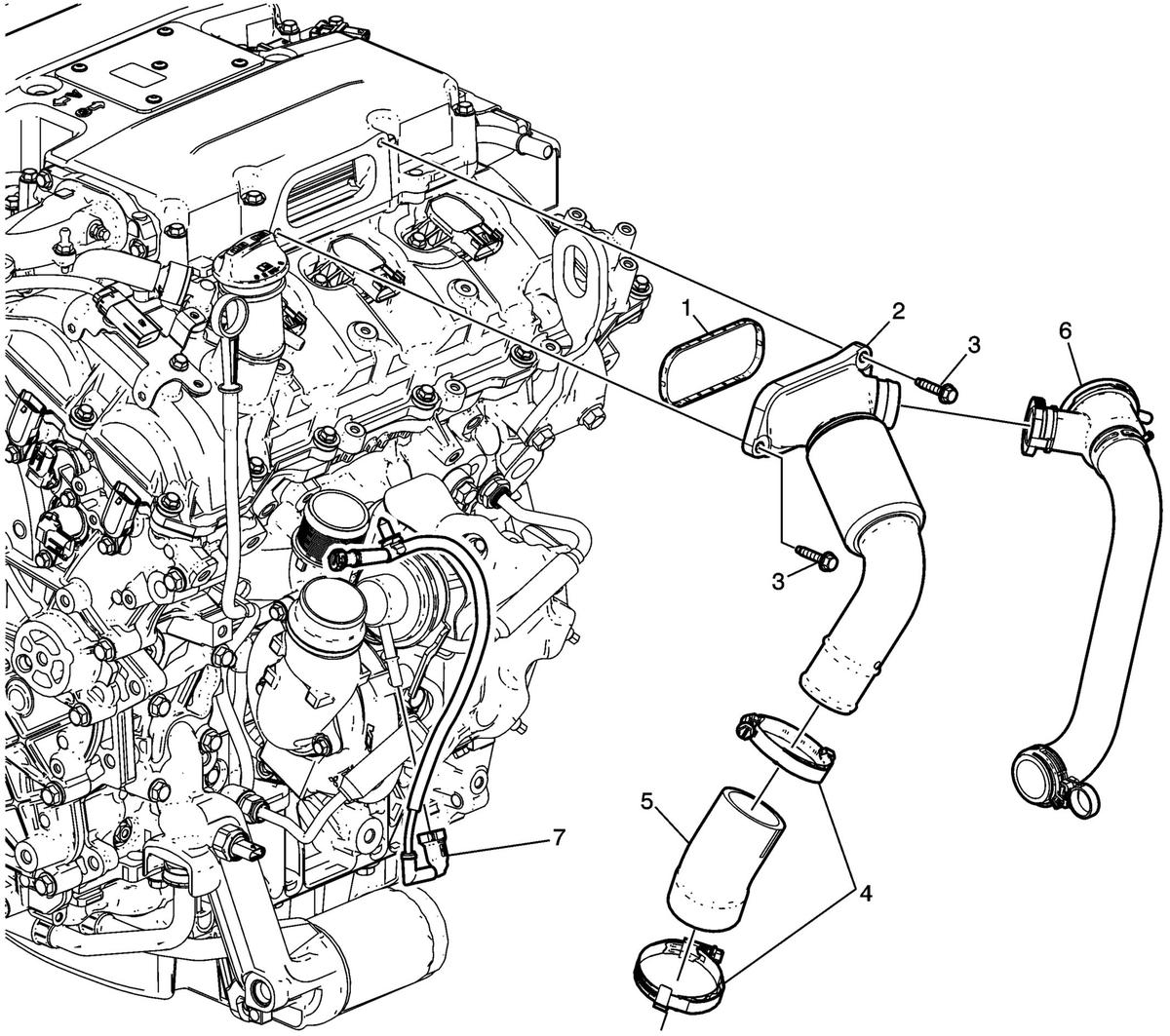

Charge Air Cooler Inlet Air Tube Installation
| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Inlet Air Tube Seal
NOTE:
Install a NEW seal. It is not reusable. |
| 2 | Charge Air Cooler Inlet Air Tube Assembly |
| 3 | Charge Air Cooler Inlet Air Tube Bolts
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Charge Air Cooler Inlet Hose Air Clamps |
| 5 | Charge Air Cooler Inlet Air Hose |
| 6 | Charge Air Bypass Valve Assembly |
| 7 | Turbocharger Wastegate Actuator Vacuum Tube |
