Engine Oil Level Indicator Switch Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

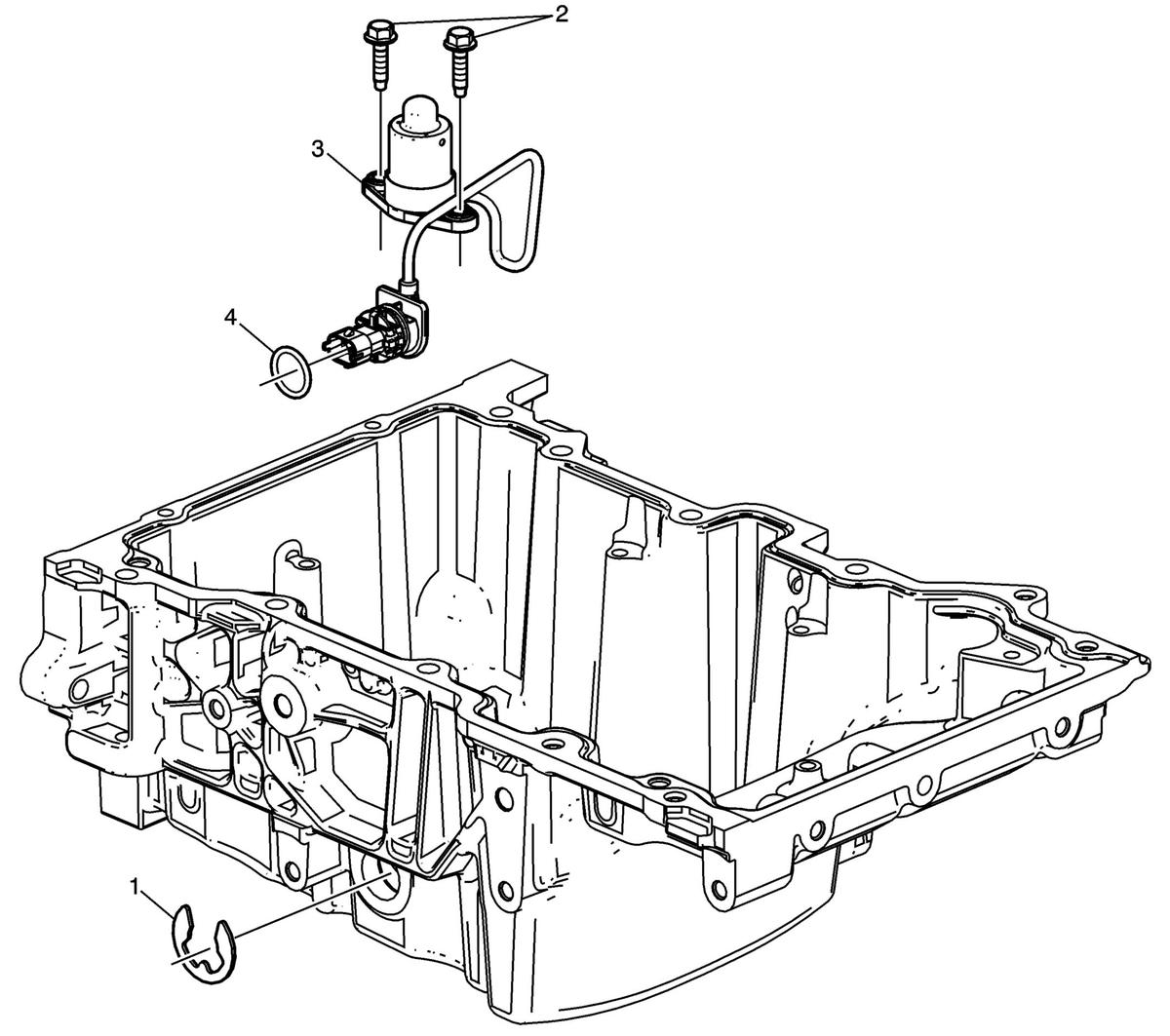

Engine Oil Level Indicator Switch Removal
| Callout |
Component Name |
| 1 |
Engine Oil Level Indicator Switch Retainer |
| 2 |
Engine Oil Level Indicator Bolts |
| 3 |
Engine Oil Level Indicator Switch Assembly |
| 4 |
Engine Oil Level Indicator Seal
NOTE:
Discard the seal, it is not reusable.
|
