Engine Oil Level Indicator Switch Installation

WARNING: This page is about a different variant/trim than selected.

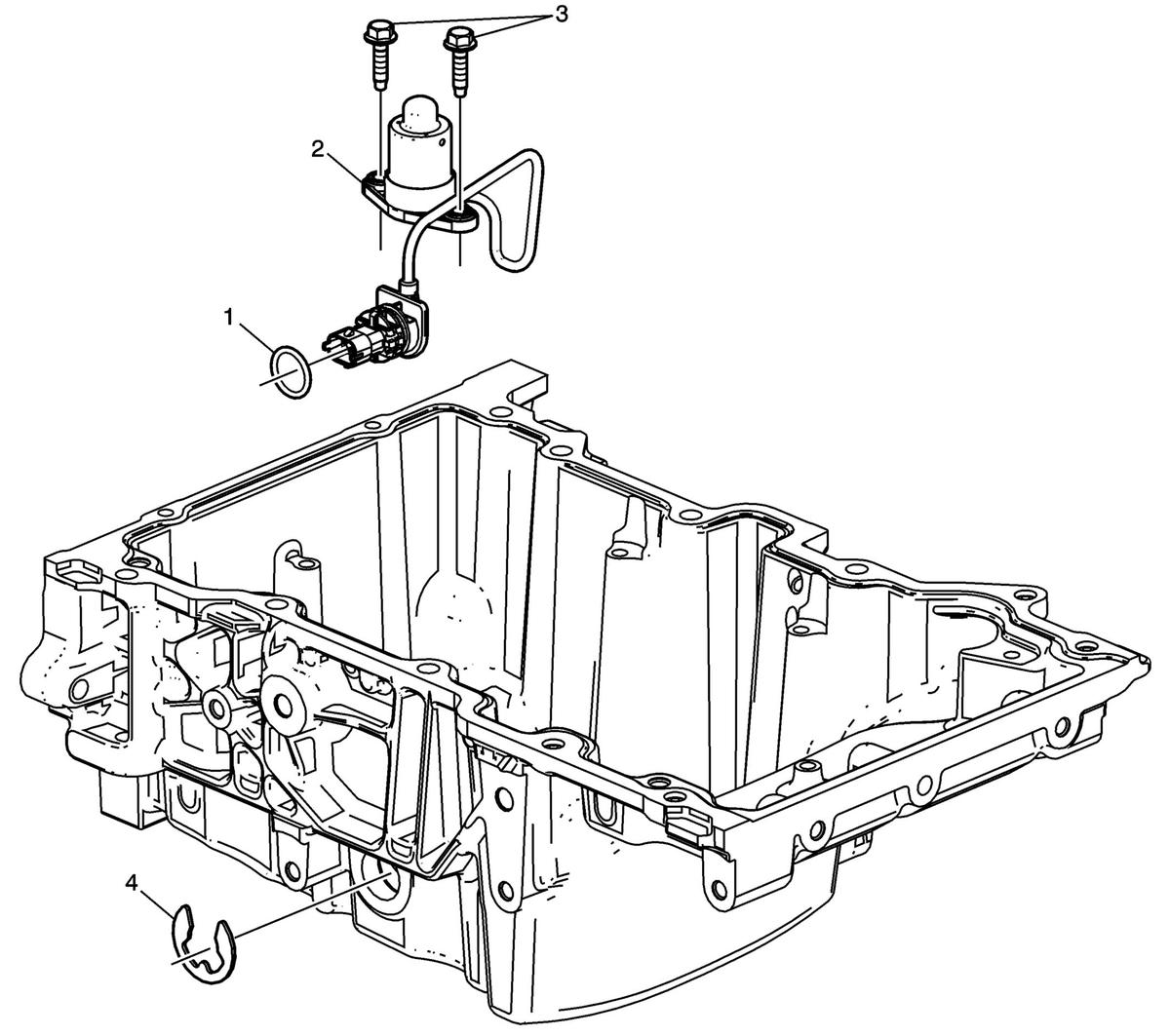

GM3239565Courtesy of GENERAL MOTORS COMPANY
Engine Oil Level Indicator Switch Installation

Callout Component Name
1 Engine Oil Level Indicator Switch Seal
NOTE:

Install a NEW seal.
2 Engine Oil Level Indicator Switch Assembly
3 Engine Oil Level Indicator Bolts
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
4 Engine Oil Level Indicator Switch Retainer
