Oil Level Indicator and Tube Removal (LF4)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

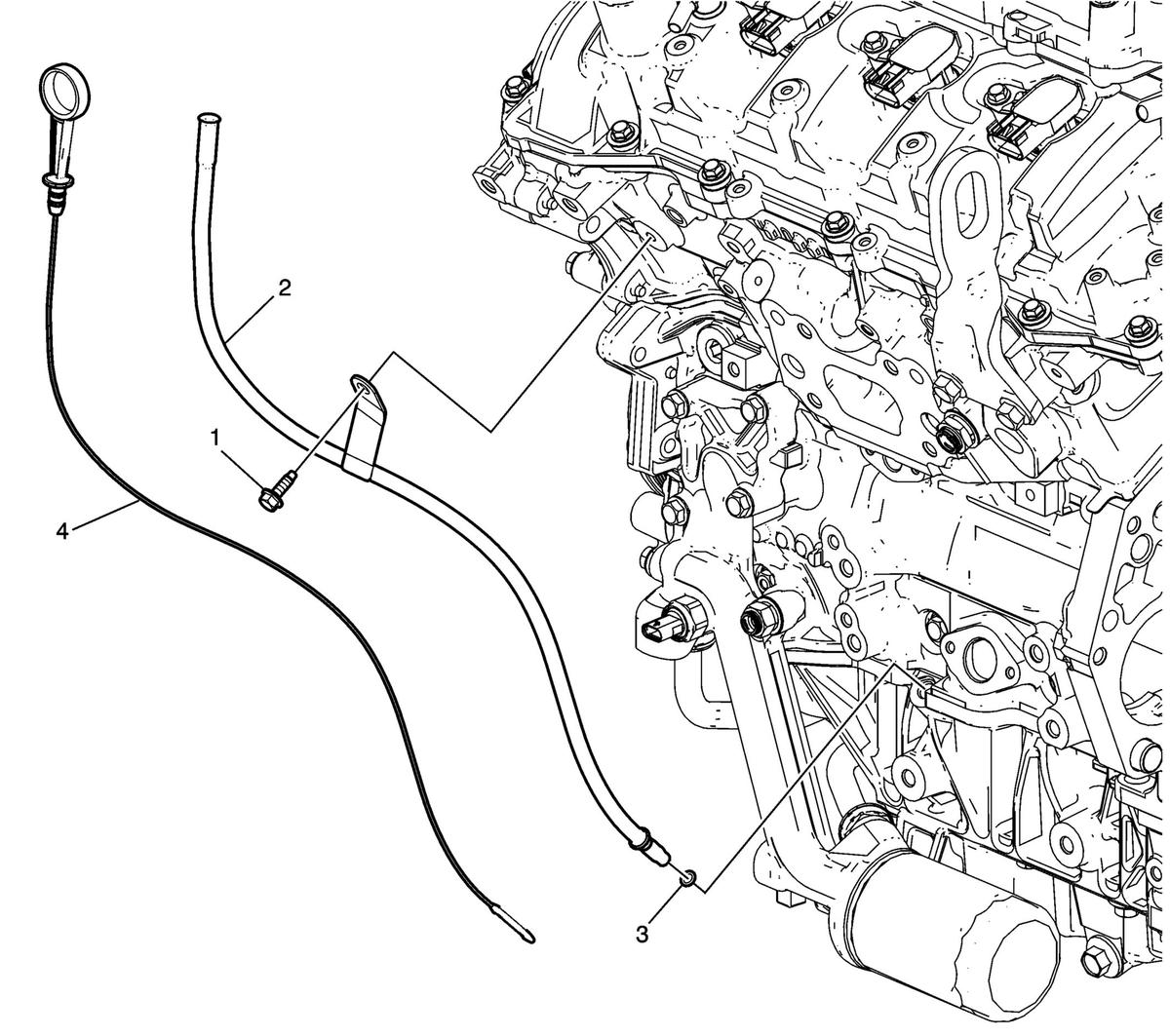

| Callout |
Component Name |
| 1 |
Oil Level Indicator Tube Bolt |
| 2 |
Oil Level Indicator Tube |
| 3 |
Oil Level Indicator Tube Seal
NOTE:
Discard seal, it is not reusable.
|
| 4 |
Oil Level Indicator |
