Intake Manifold Removal (LF4)
WARNING: This page is about a different variant/trim than selected.

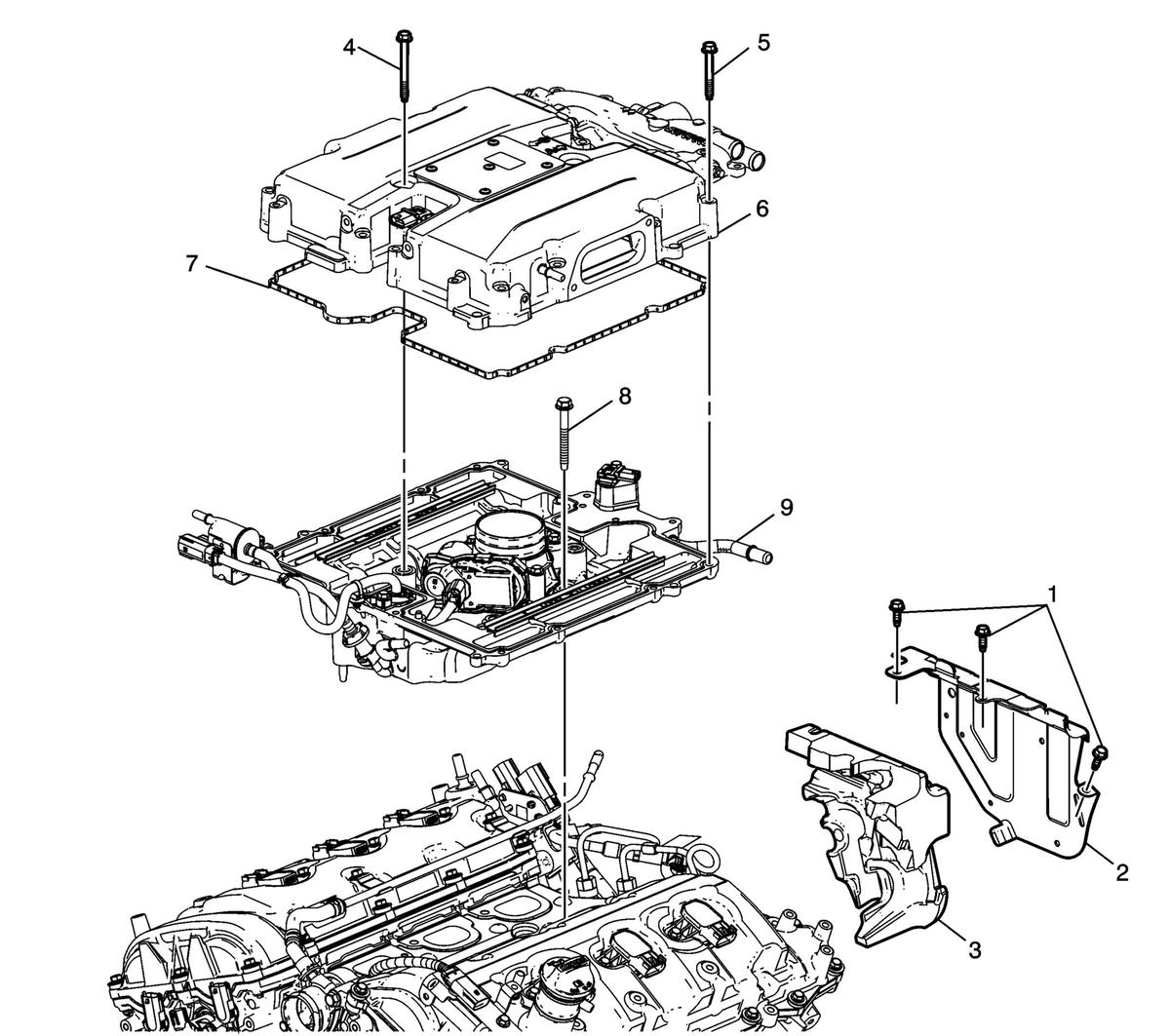

| Callout | Component Name |
|---|---|
| 1 | Fuel Injection Fuel Rail Noise Shield Bolt |
| 2 | Fuel Injection Fuel Rail Noise Shield
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
| 3 | Engine Rear Noise Shield |
| 4 | Charge Air Cooler Bolt |
| 5 | Charge Air Cooler Cover Bolt |
| 6 | Charge Air Cooler Cover |
| 7 | Intake Manifold Gasket
NOTE:
Discard gasket, it is not reusable. |
| 8 | Lower Intake Manifold Bolt |
| 9 | Lower Intake Manifold |
