Throttle Body Assembly Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

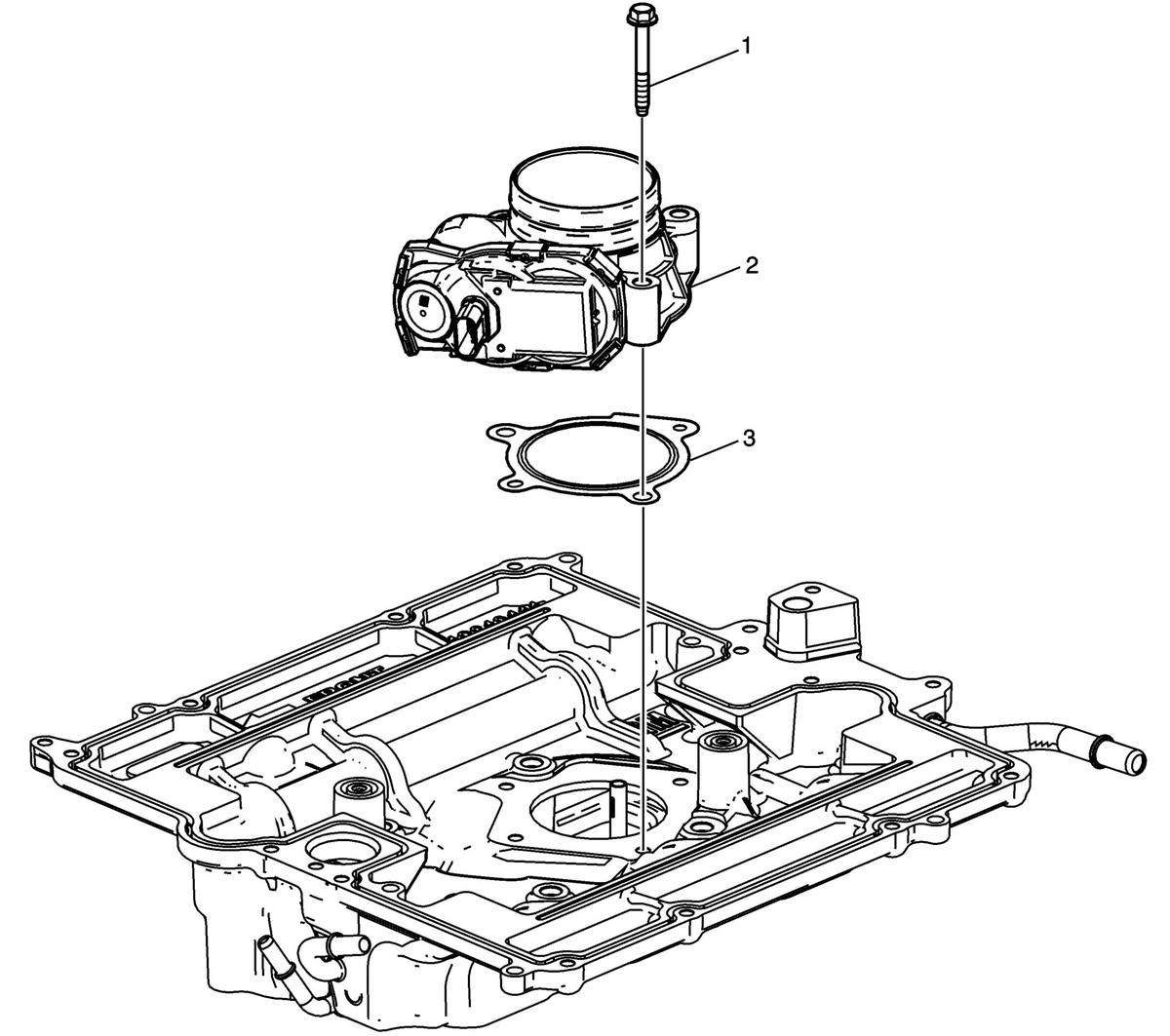

Throttle Body Assembly Removal
| Callout |
Component Name |
| 1 |
Throttle Body Bolt |
| 2 |
Throttle Body Assembly |
| 3 |
Throttle Body Gasket
NOTE:
Discard the gasket, it is not reusable.
|
