Manifold Absolute Pressure Sensor (MAP) Removal

WARNING: This page is about a different variant/trim than selected.

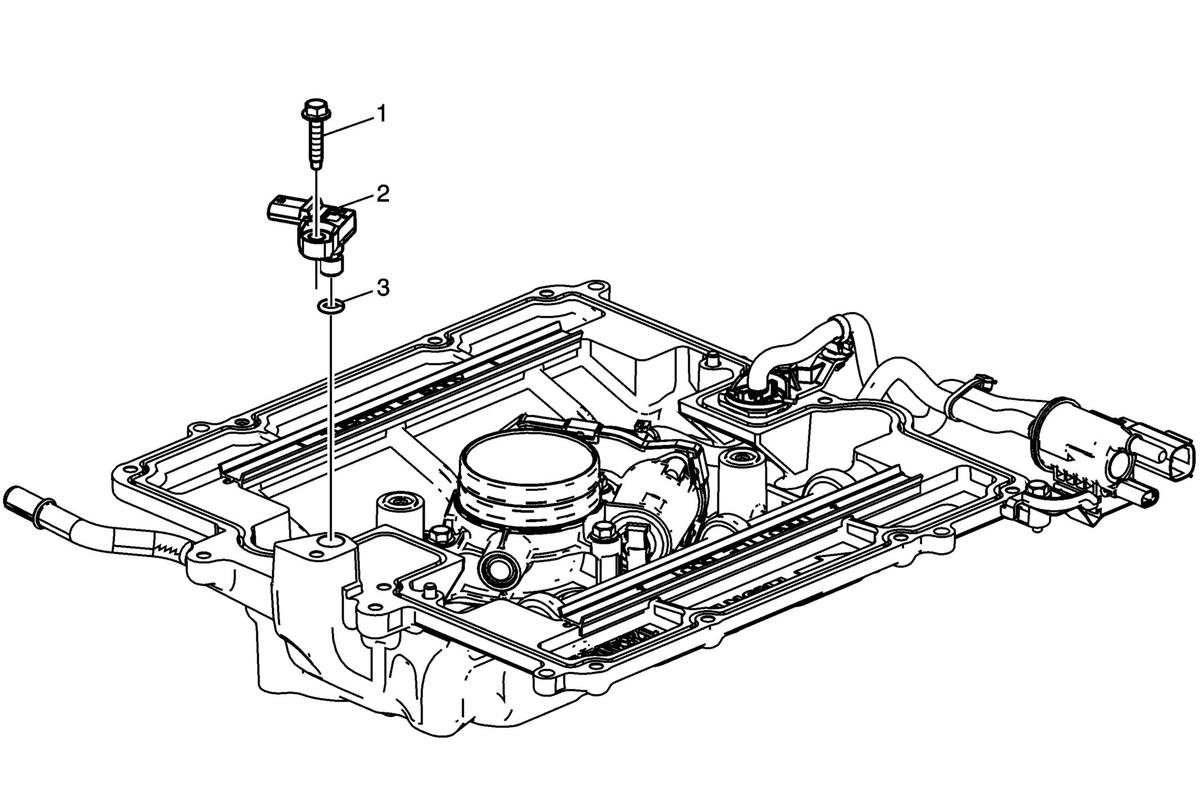

GM2887033Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor (MAP) Removal

Callout Component Name
1 MAP Sensor Bolt
2 MAP Sensor
3 MAP Sensor Seal
NOTE:

Discard the seal, it is not reusable.
