Intake Air Pressure and Temperature Sensor Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

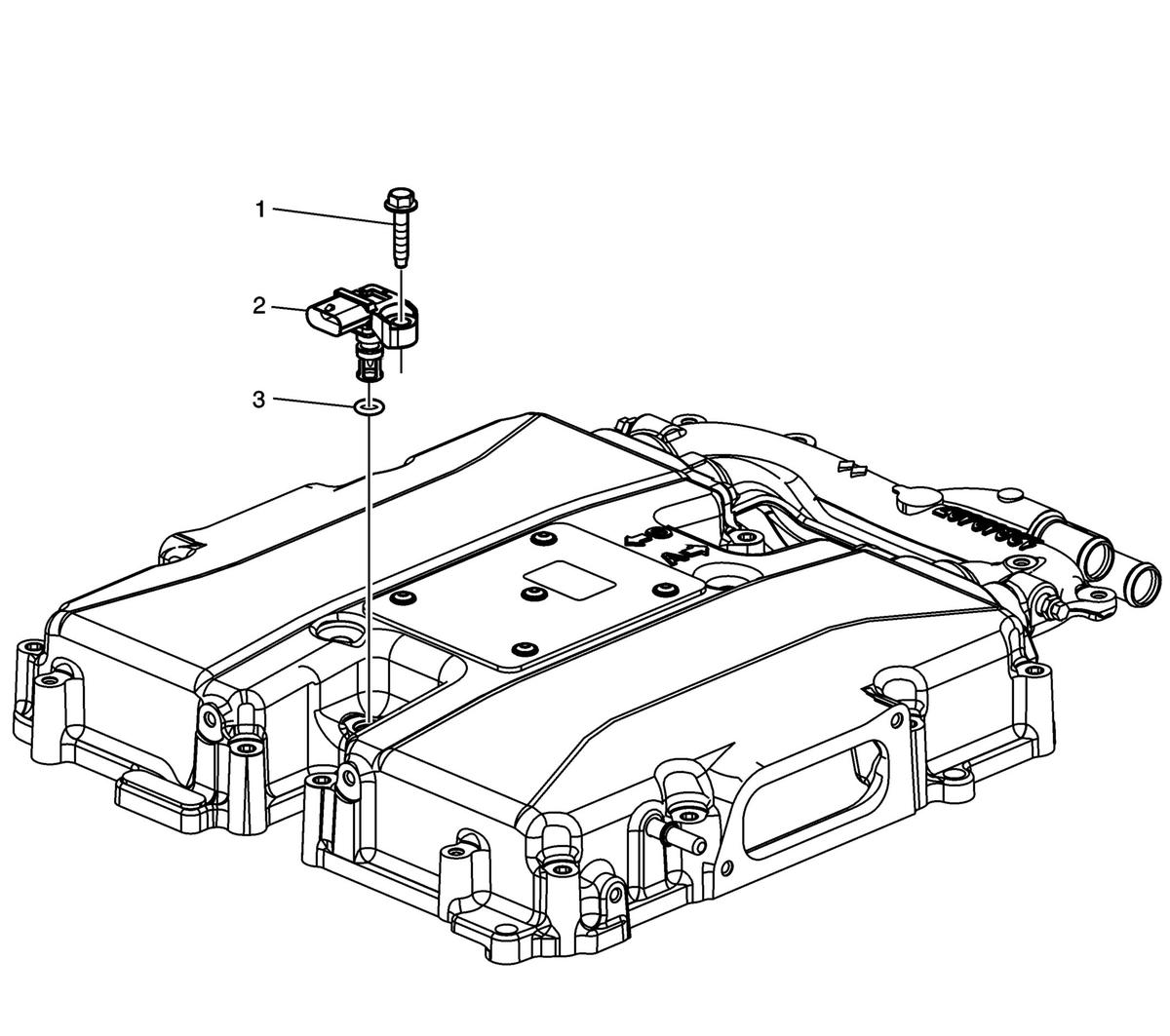

Intake Air Pressure and Temperature Sensor Removal
| Callout |
Component Name |
| 1 |
Intake Air Pressure and Temperature Sensor Bolt |
| 2 |
Intake Air Pressure and Temperature Sensor |
| 3 |
Intake Air Pressure and Temperature Sensor Seal
NOTE:
Discard the seal, it is not reusable.
|
